Pure 20 Clear

Pure 20 Clear

DESCRIPTION
BU/2 EM8 – 0+08 PU transp. F AS M2
ARTICLE
10090
GENERAL CHARACTERISTICS

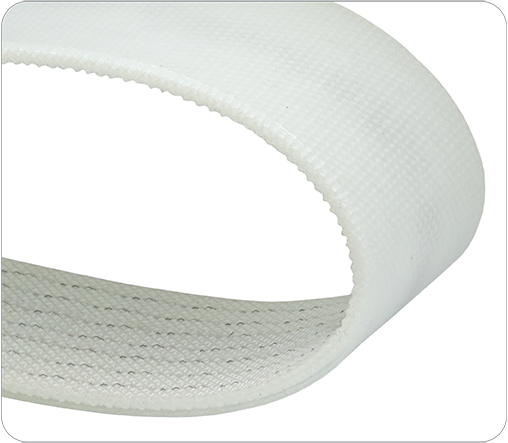

2 ply clear TPU. 2.5mm overall thickness, 1mm matt cover. Antistatic. Food approved, oil and fat resistant.

TECHNICAL INFORMATION
Max Production Width 118.11 in | 3000.00 mm
Total Thickness 0.10 in | 2.50 mm
Mass 0.64 lb/ft² | 3.10 kg/m²
Tensile force at 1% elongation 45.60 lbf/in | 8.00 N/mm
Working Temp. -4/+194 F | -20/+90 C
Flexion (A) 3.15 in | 80.00 mm
Counter Flexion (B) 4.72 in | 120.00 mm
Coefficient of friction (Bottom side – Steel) 0.20

• Food Approved,
  FDA Compliance
  acc. to 21 CFR 175.300
• Food Approved,
  EU Compliance
  (EC) No. 1935/2004
  & (EU) No. 10/2011
• Antistatic
  ISO 284  & 21178
• Oil & Fat Resistant
• Abrasion Resistant

TOP SIDE (CARRYING)
Material  PU
Color  Clear
Thickness  0.03 in | 0.80 mm
Hardness  90 Shore A | ISO 868
Surface  Smooth Matt

TENSION MEMBER
Interply  PU
Fabric  Polyester Rigid
Plies  2
Weft  Rigid

BOTTOM SIDE (PULLEY)
Material  Fabric
Color  Fabric
Thickness  0.00 in | 0.00 mm
Hardness  – Shore A | ISO 868
Surface  Impregnated
