Tracking Guides

Tracking Guides

INO Process and Conveyor Belts can be fitted with profiles as carriers or V-guides. The thermoplastic profiles are welded directly onto the belt surface.

Tracking guides - K5 PU - Solid Tracking guides - K5 PU - Solid
K5 PU - Solid
  • Mass 20 g/m
  • Min. Pulley Carring Side 50mm
  • Min. Pulley Sliding Side 205mm
  • Hardness (Shore A) 75
  • Mass 0.01 lb/ft
  • Min. Pulley Carring Side 2in
  • Min. Pulley Sliding Side 0.78in
  • Hardness (Shore A) 75
Tracking guides - K5 PVC - Solid Tracking guides - K5 PVC - Solid
K5 PVC - Solid
  • Mass 20 g/m
  • Min. Pulley Carring Side 50mm
  • Min. Pulley Sliding Side 20mm
  • Hardness (Shore A) 65
  • Mass 0.01 lb/ft
  • Min. Pulley Carring Side 2in
  • Min. Pulley Sliding Side 0.78in
  • Hardness (Shore A) 65
Tracking guides - K6 PU - Solid Tracking guides - K6 PU - Solid
K6 PU - Solid
  • Mass 21 g/m
  • Min. Pulley Carring Side 60mm
  • Min. Pulley Sliding Side 30mm
  • Hardness (Shore A) 75
  • Mass 0.01 lb/ft
  • Min. Pulley Carring Side 2.36in
  • Min. Pulley Sliding Side 1.18in
  • Hardness (Shore A) 75
Tracking guides - K6 PU - Notched Tracking guides - K6 PU - Notched
K6 PU - Notched
  • Mass 21 g/m
  • Min. Pulley Carring Side 50mm
  • Min. Pulley Sliding Side 20mm
  • Hardness (Shore A) 75
  • Mass 0.01 lb/ft
  • Min. Pulley Carring Side 1.97in
  • Min. Pulley Sliding Side 0.79in
  • Hardness (Shore A) 75
Tracking guides - K6 PVC - Solid Tracking guides - K6 PVC - Solid
K6 PVC - Solid
  • Mass 21 g/m
  • Min. Pulley Carring Side 60mm
  • Min. Pulley Sliding Side 30mm
  • Hardness (Shore A) 65
  • Mass 0.02 lb/ft
  • Min. Pulley Carring Side 2.36in
  • Min. Pulley Sliding Side 1.18in
  • Hardness (Shore A) 65
Tracking guides - K6 PVC - Notched Tracking guides - K6 PVC - Notched
K6 PVC - Notched
  • Mass 21 g/m
  • Min. Pulley Carring Side 50mm
  • Min. Pulley Sliding Side 20mm
  • Hardness (Shore A) 65
  • Mass 0.01 lb/ft
  • Min. Pulley Carring Side 1.97in
  • Min. Pulley Sliding Side 0.79in
  • Hardness (Shore A) 75
Tracking guides - K8 PU - Solid Tracking guides - K8 PU - Solid
K8 PU - Solid
  • Mass 30 g/m
  • Min. Pulley Carring Side 70mm
  • Min. Pulley Sliding Side 30mm
  • Hardness (Shore A) 75
  • Mass 0.02 lb/ft
  • Min. Pulley Carring Side 2.76in
  • Min. Pulley Sliding Side 1.18in
  • Hardness (Shore A) 75
Tracking guides - K8 PU - Notched Tracking guides - K8 PU - Notched
K8 PU - Notched
  • Mass 30 g/m
  • Min. Pulley Carring Side 60mm
  • Min. Pulley Sliding Side 25mm
  • Hardness (Shore A) 75
  • Mass 0.02 lb/ft
  • Min. Pulley Carring Side 2.36in
  • Min. Pulley Sliding Side 0.98in
  • Hardness (Shore A) 75
Tracking guides - K8 PVC - Solid Tracking guides - K8 PVC - Solid
K8 PVC - Solid
  • Mass 30 g/m
  • Min. Pulley Carring Side 70mm
  • Min. Pulley Sliding Side 30mm
  • Hardness (Shore A) 65
  • Mass 0.02 lb/ft
  • Min. Pulley Carring Side 2.76in
  • Min. Pulley Sliding Side 1.18in
  • Hardness (Shore A) 65
Tracking guides - K8 PVC - Notched Tracking guides - K8 PVC - Notched
K8 PVC - Notched
  • Mass 30 g/m
  • Min. Pulley Carring Side 60mm
  • Min. Pulley Sliding Side 25mm
  • Hardness (Shore A) 65
  • Mass 0.02 lb/ft
  • Min. Pulley Carring Side 2.36in
  • Min. Pulley Sliding Side 0.98in
  • Hardness (Shore A) 65
Tracking guides - K10 PU - Solid Tracking guides - K10 PU - Solid
K10 PU - Solid
  • Mass 60 g/m
  • Min. Pulley Carring Side 70mm
  • Min. Pulley Sliding Side 60mm
  • Hardness (Shore A) 75
  • Mass 0.04 lb/ft
  • Min. Pulley Carring Side 2.76in
  • Min. Pulley Sliding Side 2.36in
  • Hardness (Shore A) 75
Tracking guides - K10 PU - Notched Tracking guides - K10 PU - Notched
K10 PU - Notched
  • Mass 50 g/m
  • Min. Pulley Carring Side 50mm
  • Min. Pulley Sliding Side 40mm
  • Hardness (Shore A) 75
  • Mass 0.03 lb/ft
  • Min. Pulley Carring Side 2.76in
  • Min. Pulley Sliding Side 2.368in
  • Hardness (Shore A) 75
Tracking guides - K10 PVC - Solid Tracking guides - K10 PVC - Solid
K10 PVC - Solid
  • Mass 60 g/m
  • Min. Pulley Carring Side 70mm
  • Min. Pulley Sliding Side 60mm
  • Hardness (Shore A) 65
  • Mass 0.04 lb/ft
  • Min. Pulley Carring Side 2.76in
  • Min. Pulley Sliding Side 1.36in
  • Hardness (Shore A) 65
Tracking guides - K10 PVC - Notched Tracking guides - K10 PVC - Notched
K10 PVC - Notched
  • Mass 50 g/m
  • Min. Pulley Carring Side 50mm
  • Min. Pulley Sliding Side 45mm
  • Hardness (Shore A) 65
  • Mass 0.03 lb/ft
  • Min. Pulley Carring Side 1.97in
  • Min. Pulley Sliding Side 0.57in
  • Hardness (Shore A) 65
Tracking guides - K13 PU - Solid Tracking guides - K13 PU - Solid

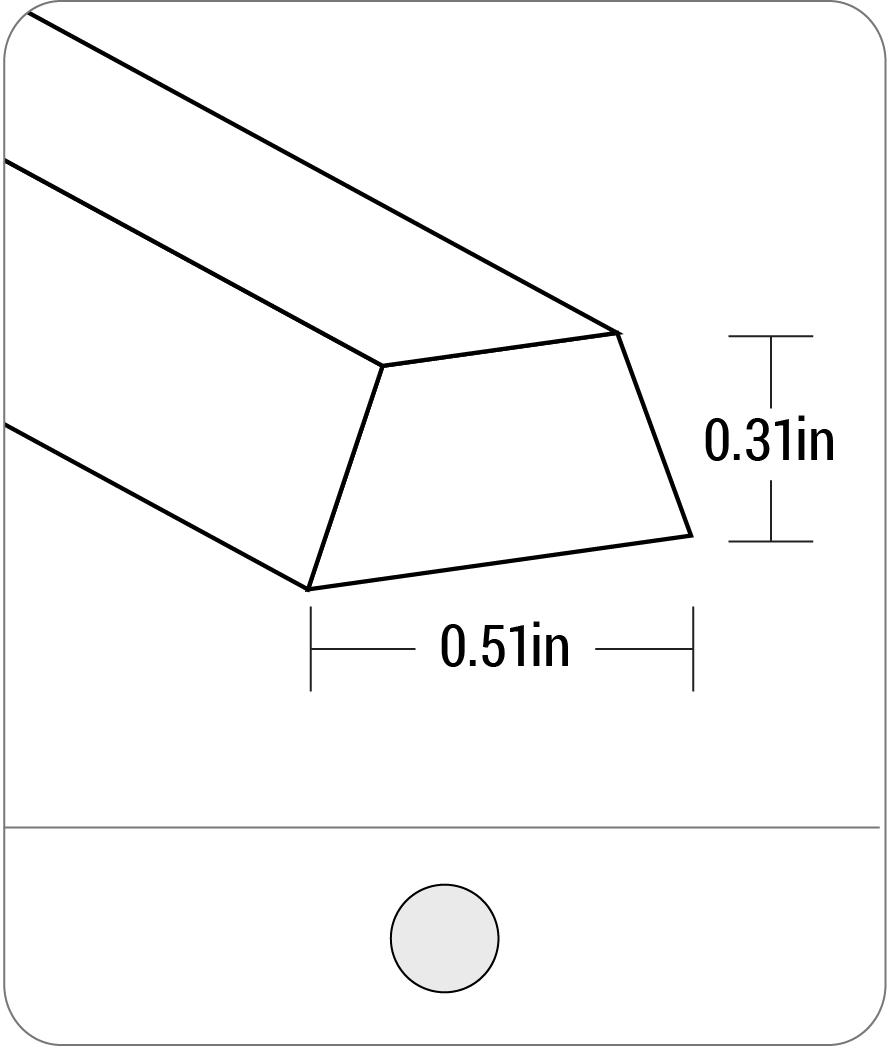

K13 PU - Solid
  • Mass 110 g/m
  • Min. Pulley Carring Side 100mm
  • Min. Pulley Sliding Side 80mm
  • Hardness (Shore A) 75
  • Mass 0.07 lb/ft
  • Min. Pulley Carring Side 3.94in
  • Min. Pulley Sliding Side 3.15in
  • Hardness (Shore A) 75
Tracking guides - K13 PU - Notched Tracking guides - K13 PU - Notched
K13 PU - Notched
  • Mass 90 g/m
  • Min. Pulley Carring Side 90mm
  • Min. Pulley Sliding Side 70mm
  • Hardness (Shore A) 75
  • Mass 0.06 lb/ft
  • Min. Pulley Carring Side 3.54in
  • Min. Pulley Sliding Side 2.76in
  • Hardness (Shore A) 75
Tracking guides - K13 PVC - Solid Tracking guides - K13 PVC - Solid
K13 PVC - Solid
  • Mass 110 g/m
  • Min. Pulley Carring Side 100mm
  • Min. Pulley Sliding Side 80mm
  • Hardness (Shore A) 65
  • Mass 0.07 lb/ft
  • Min. Pulley Carring Side 3.94in
  • Min. Pulley Sliding Side 3.15in
  • Hardness (Shore A) 65
Tracking guides - K13 PVC - Notched Tracking guides - K13 PVC - Notched
K13 PVC - Notched
  • Mass 90 g/m
  • Min. Pulley Carring Side 90mm
  • Min. Pulley Sliding Side 70mm
  • Hardness (Shore A) 65
  • Mass 0.06 lb/ft
  • Min. Pulley Carring Side 3.54in
  • Min. Pulley Sliding Side 2.76in
  • Hardness (Shore A) 65
Tracking guides - K17 PU - Solid Tracking guides - K17 PU - Solid
K17 PU - Solid
  • Mass 185 g/m
  • Min. Pulley Carring Side 120mm
  • Min. Pulley Sliding Side 100mm
  • Hardness (Shore A) 75
  • Mass 0.12 lb/ft
  • Min. Pulley Carring Side 4.72in
  • Min. Pulley Sliding Side 3.94in
  • Hardness (Shore A) 75
Tracking guides - K17 PU - Notched Tracking guides - K17 PU - Notched
K17 PU - Notched
  • Mass 160 g/m
  • Min. Pulley Carring Side 110mm
  • Min. Pulley Sliding Side 90mm
  • Hardness (Shore A) 75
  • Mass 0.11 lb/ft
  • Min. Pulley Carring Side 4.33in
  • Min. Pulley Sliding Side 3.54in
  • Hardness (Shore A) 75
Tracking guides - K17 PVC - Solid Tracking guides - K17 PVC - Solid
K17 PVC - Solid
  • Mass 185 g/m
  • Min. Pulley Carring Side 120mm
  • Min. Pulley Sliding Side 100mm
  • Hardness (Shore A) 65
  • Mass 0.12 lb/ft
  • Min. Pulley Carring Side 4.72in
  • Min. Pulley Sliding Side 3.95in
  • Hardness (Shore A) 65
Tracking guides - K17 PVC - Notched Tracking guides - K17 PVC - Notched
K17 PVC - Notched
  • Mass 160 g/m
  • Min. Pulley Carring Side 110mm
  • Min. Pulley Sliding Side 90mm
  • Hardness (Shore A) 65
  • Mass 0.11 lb/ft
  • Min. Pulley Carring Side 4.33in
  • Min. Pulley Sliding Side 3.54in
  • Hardness (Shore A) 65
Tracking guides - K22 PU - Solid Tracking guides - K22 PU - Solid
K22 PU - Solid
  • Mass 185 g/m
  • Min. Pulley Carring Side 120mm
  • Min. Pulley Sliding Side 100mm
  • Hardness (Shore A) 75
  • Mass 0.12 lb/ft
  • Min. Pulley Carring Side 4.72in
  • Min. Pulley Sliding Side 3.94in
  • Hardness (Shore A) 75
Tracking guides - K22 PU - Notched Tracking guides - K22 PU - Notched
K22 PU - Notched
  • Mass 160 g/m
  • Min. Pulley Carring Side 110mm
  • Min. Pulley Sliding Side 90mm
  • Hardness (Shore A) 75
  • Mass 0.11 lb/ft
  • Min. Pulley Carring Side 4.33in
  • Min. Pulley Sliding Side 3.54in
  • Hardness (Shore A) 75
Tracking guides - K22 PVC - Solid Tracking guides - K22 PVC - Solid
K22 PVC - Solid
  • Mass 185 g/m
  • Min. Pulley Carring Side 180mm
  • Min. Pulley Sliding Side 150mm
  • Hardness (Shore A) 65
  • Mass 0.12 lb/ft
  • Min. Pulley Carring Side 7.08in
  • Min. Pulley Sliding Side 5.90in
  • Hardness (Shore A) 65
Tracking guides - K22 PVC - Notched Tracking guides - K22 PVC - Notched
K22 PVC - Notched
  • Mass 160 g/m
  • Min. Pulley Carring Side 170mm
  • Min. Pulley Sliding Side 140mm
  • Hardness (Shore A) 65
  • Mass 0.11 lb/ft
  • Min. Pulley Carring Side 6.69in
  • Min. Pulley Sliding Side 5.51in
  • Hardness (Shore A) 65
Tracking guides - AMOD PU - Solid Tracking guides - AMOD PU - Solid
AMOD PU - Solid
  • Mass 100 g/m
  • Min. Pulley Carring Side 90mm
  • Min. Pulley Sliding Side 70mm
  • Hardness (Shore A) 75
  • Mass 0.07 lb/ft
  • Min. Pulley Carring Side 3.54in
  • Min. Pulley Sliding Side 2.76in
  • Hardness (Shore A) 75
Tracking guides - AMOD PU - Notched Tracking guides - AMOD PU - Notched
AMOD PU - Notched
  • Mass 80 g/m
  • Min. Pulley Carring Side 80mm
  • Min. Pulley Sliding Side 60mm
  • Hardness (Shore A) 75
  • Mass 0.05 lb/ft
  • Min. Pulley Carring Side 3.15in
  • Min. Pulley Sliding Side 2.35in
  • Hardness (Shore A) 75
Tracking guides - AMOD PVC - Solid Tracking guides - AMOD PVC - Solid
AMOD PVC - Solid
  • Mass 100 g/m
  • Min. Pulley Carring Side 90mm
  • Min. Pulley Sliding Side 70mm
  • Hardness (Shore A) 65
  • Mass 0.07 lb/ft
  • Min. Pulley Carring Side 3.54in
  • Min. Pulley Sliding Side 2.76n
  • Hardness (Shore A) 65
Tracking guides - K22 PVC - Notched Tracking guides - K22 PVC - Notched
K22 PVC - Notched
  • Mass 80 g/m
  • Min. Pulley Carring Side 800mm
  • Min. Pulley Sliding Side 600mm
  • Hardness (Shore A) 65
  • Mass 0.05 lb/ft
  • Min. Pulley Carring Side 3.15in
  • Min. Pulley Sliding Side 2.36in
  • Hardness (Shore A) 65
Tracking guides - M12 PU Tracking guides - M12 PU
M12 PU
  • Mass 80 g/m
  • Min. Pulley Carring Side 80mm
  • Min. Pulley Sliding Side 80mm
  • Hardness (Shore A) 75
  • Mass 0.05 lb/ft
  • Min. Pulley Carring Side 3.15in
  • Min. Pulley Sliding Side 3.15in
  • Hardness (Shore A) 75
Tracking guides - M12 PVC Tracking guides - M12 PVC
M12 PVC
  • Mass 80 g/m
  • Min. Pulley Carring Side 80mm
  • Min. Pulley Sliding Side 80mm
  • Hardness (Shore A) 75
  • Mass 0.05 lb/ft
  • Min. Pulley Carring Side 3.15in
  • Min. Pulley Sliding Side 3.15in
  • Hardness (Shore A) 65
Tracking guides - M15 PU Tracking guides - M15 PU
M15 PU
  • Mass 380 g/m
  • Min. Pulley Carring Side 180mm
  • Min. Pulley Sliding Side 180mm
  • Hardness (Shore A) 75
  • Mass 0.26 lb/ft
  • Min. Pulley Carring Side 7.09in
  • Min. Pulley Sliding Side 7.09in
  • Hardness (Shore A) 75
Tracking guides - M15 PVC Tracking guides - M15 PVC
M15 PVC
  • Mass 380 g/m
  • Min. Pulley Carring Side 180mm
  • Min. Pulley Sliding Side 180mm
  • Hardness (Shore A) 75
  • Mass 0.26 lb/ft
  • Min. Pulley Carring Side 7.09in
  • Min. Pulley Sliding Side 7.09in
  • Hardness (Shore A) 65
