REO-AT40 SB
Request Sample
REO-AT40 SB

REO-AT40 SB

General Characteristics

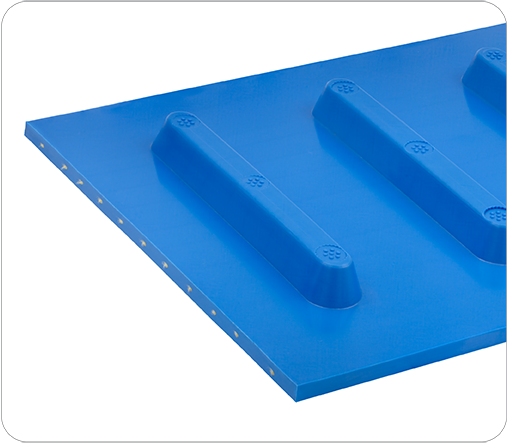

Positive driven homogenous TPU belt. Aramid reinforced. 40mm pitch. USDA Approved. Blue. Anti-microbial

Print Data sheet
Request Sample

Technical Information

Max Production Width
55.91 in 1420.00 mm
Mass
0.88 lbf/ft2 4.30 kg/m2
Tensile Strength
91.20 lbf/in 16.00 dan/cm
Min Working Temp.
-4 F -20 C
Max Working Temp.
194 F 90 C
Flexion (A)
4.92 in 125.00 mm
Coefficient of friction Dry (bottom side) Steel
0.40
Coefficient of friction Wet (bottom side) Steel
0.60
Hardness
95 Shore A | ISO 868

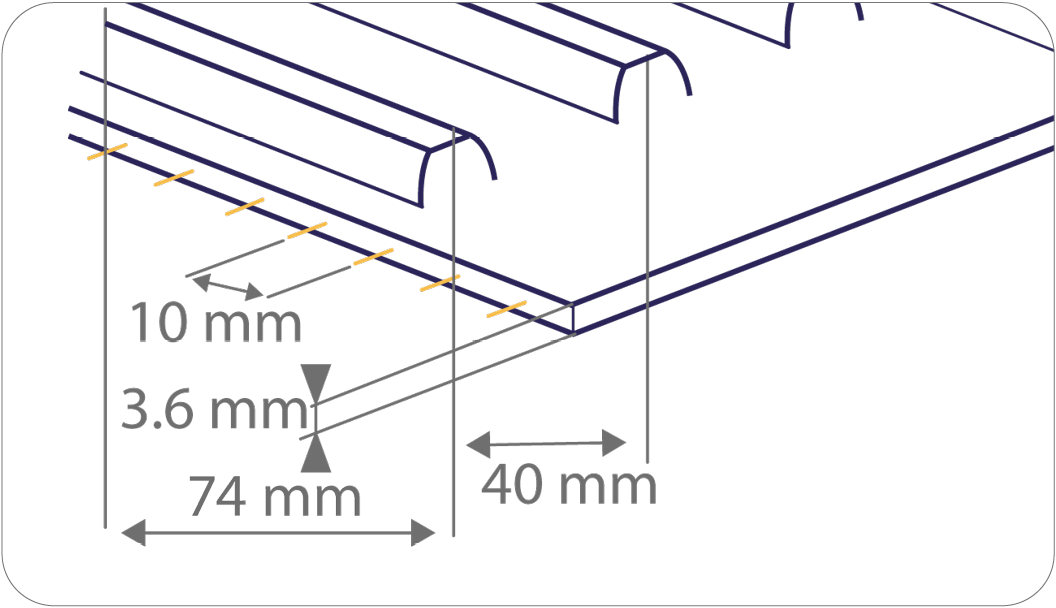

Total Thickness
0.14 in 3.60 mm
Pitch
40
Tension Member
Aramid
Spacing Between Cords
10

Special Features

Oil & Fat Resistant
Food Approved, FDA compilance acc. to 21 CFR 175.300
Food Approved, EU compilance (EC) No. 1935/2004 & (EU) No. 10/2011
USDA Certified
REO-AT40 SB
REO-AT40 SB
REO-AT40 SB
