REO-M25 DB
Request Sample
REO-M25 DB

REO-M25 DB

General Characteristics

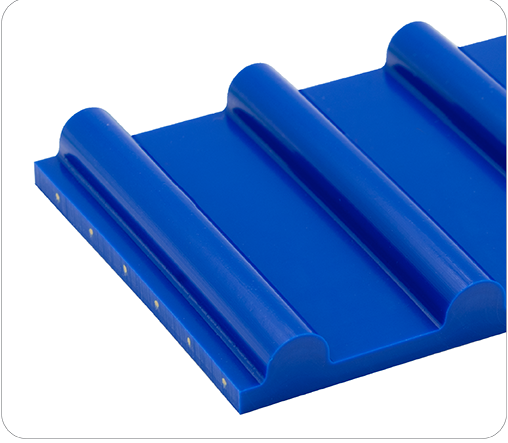

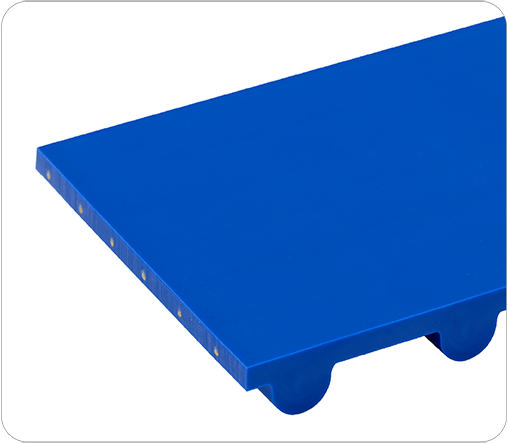

Polyether based polyurethane homogenous belt. Positive driven. Aramid reinforced. 25 mm pitch. USDA approved. Anti-microbial

Print Data sheet
Request Sample

Technical Information

Max Production Width
55.91 in 1420.00 mm
Mass
1.43 lbf/ft2 7.00 kg/m2
Tensile Strength
148.20 lbf/in 26.00 dan/cm
Min Working Temp.
-22 F -30 C
Max Working Temp.
212 F 100 C
Flexion (A)
7.24 in 184.00 mm
Coefficient of friction Dry (bottom side) Steel
0.60
Coefficient of friction Wet (bottom side) Steel
0.50
Hardness
95 Shore A | ISO 868
Total Thickness
0.15 in 3.80 mm

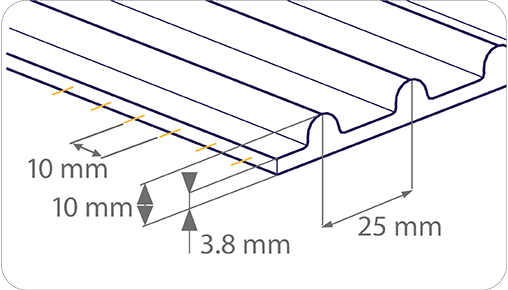

Pitch
25
Tension Member
Aramid
Spacing Between Cords
10

Special Features

Hydrolysis Resistant
Anti-bacterial
Oil & Fat Resistant
Food Approved, FDA compilance acc. to 21 CFR 175.300
Food Approved, EU compilance (EC) No. 1935/2004 & (EU) No. 10/2011
USDA Certified
