REO-T25 SB
Request Sample
REO-T25 SB

REO-T25 SB

General Characteristics

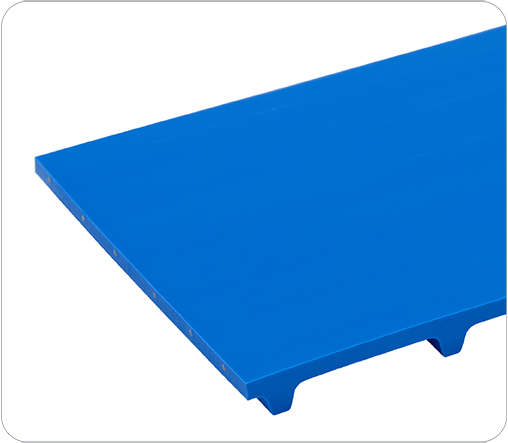

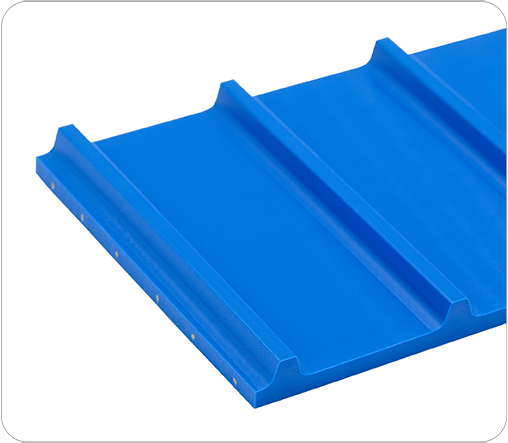

Positive driven homogenous TPU belt. Aramid reinforced. 25mm pitch. USDA approved. Blue

Print Data sheet
Request Sample

Technical Information

Max Production Width
55.91 in 1420.00 mm
Mass
0.74 lbf/ft2 3.60 kg/m2
Tensile Strength
91.20 lbf/in 16.00 dan/cm
Min Working Temp.
-4 F -20 C
Max Working Temp.
212 F 100 C
Flexion (A)
2.44 in 62.00 mm
Coefficient of friction Dry (bottom side) Steel
0.50
Coefficient of friction Wet (bottom side) Steel
0.60
Hardness
95 Shore A | ISO 868
Total Thickness
0.10 in 2.50 mm

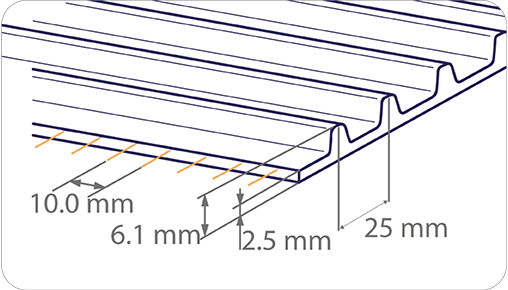

Pitch
25
Tension Member
Aramid
Spacing Between Cords
10

Special Features

Oil & Fat Resistant
Food Approved, FDA compilance acc. to 21 CFR 175.300
Food Approved, EU compilance (EC) No. 1935/2004 & (EU) No. 10/2011
USDA Certified
REO-T25 SB
REO-T25 SB
REO-T25 SB
