General Characteristics

Positive driven homogenous belt. Polyether based PU. Aramid reinforced. 50mm pitch. Low Temp. USDA approved. Blue. Anti-microbial

Technical Information

Max Production Width
55.91 in 1420.00 mm
Mass
0.88 lbf/ft2 4.30 kg/m2
Tensile Strength
91.20 lbf/in 16.00 dan/cm
Min Working Temp.
-40 F -40 C
Max Working Temp.
194 F 90 C
Flexion (A)
3.66 in 93.00 mm
Coefficient of friction Dry (bottom side) Steel
0.40
Coefficient of friction Wet (bottom side) Steel
0.50
Hardness
92 Shore A | ISO 868
Total Thickness
0.12 in 3.00 mm

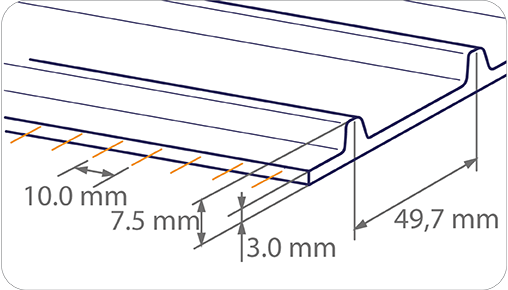

Pitch
50
Tension Member
Aramid
Spacing Between Cords
10

Special Features

Hydrolysis Resistant
Anti-bacterial
Oil & Fat Resistant
Food Approved, FDA compilance acc. to 21 CFR 175.300
Food Approved, EU compilance (EC) No. 1935/2004 & (EU) No. 10/2011
USDA Certified
