Virginia 20
Request Sample

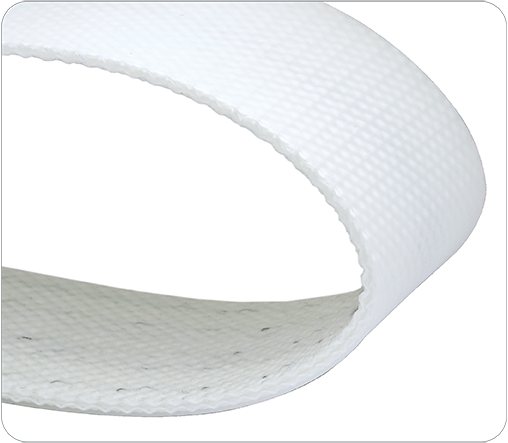

Virginia 20

Virginia 20

Description

BPE/2 ESM 8-00+05 S0 AS Transp. 2.5mm FG FL

Article

A010221401B22001

General Characteristics

2 ply polyolefin smooth top, matt. Frayless and antistatic. Food approved. Oil and Fat resistant. Pyrolysis compliant.

Print Data sheet
Request Sample

Technical Information

Max Production Width
118.11 in 3000.00 mm
Total Thickness
0.10 in 2.50 mm
Mass
0.39 lb/ft2 1.90 kg/m2
Tensile force at 1% elongation
After Relaxation - ref. ISO 21181
45.60 lbf/in 8.00 N/mm
Working Temp.
-4/+158 F -20/+70 C
Flexion (A)
2.36 in 60.00 mm
AB Belt Schema
Counter Flexion (B)
3.15 in 80.00 mm
Coefficient of friction
Bottom side - Steel
0.20

Special Features

Food Approved, FDA Compliance acc. to 21 CFR 175.300
Food Approved, EU Compliance (EC) No. 1935/2004 & (EU) No. 10/2011
Antistatic ISO 284 & 21178
Oil & Fat Resistant
Pyrolysis Compliance
Hydrolysis Resistant
Non Fray

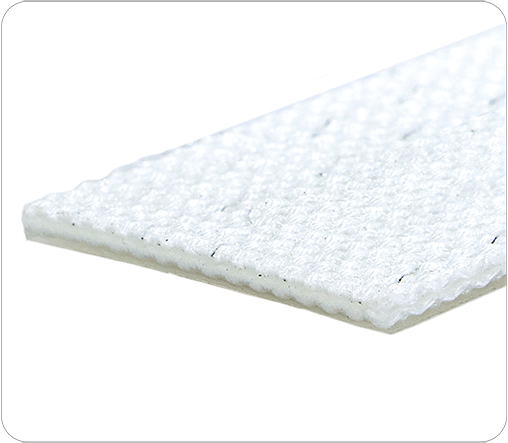

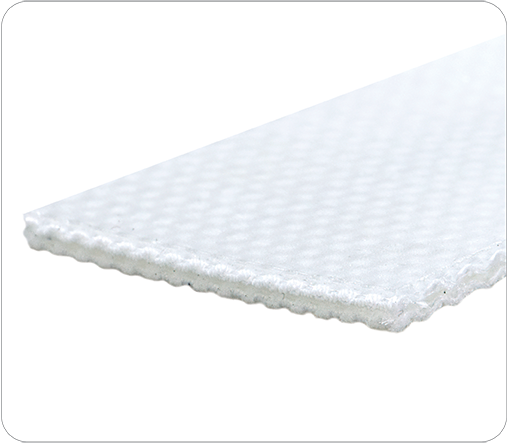

Virginia 20 Virginia 20

Top side (Carrying)

Material
Polyolefin
Color
Clear
Thickness
0.02 in 0.50 mm
Hardness
90 Shore A | ISO 868
Surface
Smooth Matt

Tension member

Interply
Polyolefin
Fabric
Polyester Frayless
Plies
2
Weft
Rigid

Bottom side (Pulley)

Material
Fabric
Color
Fabric
Thickness
0.00 in 0.00 mm
Hardness
- Shore A | ISO 868
Surface
Bare
wave horizontal addon

Splice Instructions

Preferred method
FS (Finger Splice)

Fingers are punched into the ends to be joined, and then tacked together and welded under pressure and heat.
This method is especially suitable for single-layered belts

  • Length of the joint 90mm
  • Length of the fingers 90mm
  • Width of the fingers 10mm

135 C 275 F 135 C 275 F 3.63 PSI 0.25 Bars 1.25 min
135 C 275 F 135 C 275 F 14.51 PSI 1.00 Bars 1.00 min
Air cooled video instructions
Water cooled video instructions
Water Cooled
Wave horizontal white

Mechanical Fasteners

Recommended Mechanical Fasteners (at smallest pulley diameter)

Staple Lacing

Staple Lacing

Recommendation at belt minimum pulley diameter:
RS62
APF Fasteners

APF Fasteners

Recommendation at belt minimum pulley diameter:
Alligator

Alligator

Recommendation at belt minimum pulley diameter:
7
Clipper Lacing

Clipper Lacing

Recommendation at belt minimum pulley diameter:
25 LP, 30P, UX-1 SP, UCM36, 36, 1 SP, UX-1 LLSP, 30LP

Recommended mechanical fastening method

  • Applicable

  • Not Applicable

Recessed Lacing
Recessed Lacing:
Hidden Lacing
Hidden Lacing:
Plastic Spiral Finger
Plastic Spiral Finger:
Plastic Spiral Lacing
Plastic Spiral Lacing:

  • Applicable

  • Not Applicable

wave horizontal addon

Recommended Uses

Recommended use: Slider Bed

Slider Bed

Flat Rollers

Flat Rollers

Slider Beds on Both sides

Slider Beds on Both sides

Channel Trough

Channel Trough

Conventional Trough

Conventional Trough

Incline Conveying

Incline Conveying

Incline Variation

Incline Variation

Bucket Elevator

Conveyor with Accumulation

Bend Conveyor

Bend Conveyor

Knife Edge Conveyor

  • Applicable

  • Limited use

  • Not Applicable

Wave horizontal white

Certifications and Lab Tests

FOOD COMPLIANCE DECLARATION
VIEW FOOD COMPLIANCE
DECLARATION
wave horizontal addon

Chemical Resistance Information

Category

Chemical

Results

DOWNLOAD FULL CHART
