Perfect 10 Super Matt

Perfect 10 Super Matt

Description

BU/2 ESM6 - 00+02 PU white HP F AS M3

Article

10036B

General Characteristics

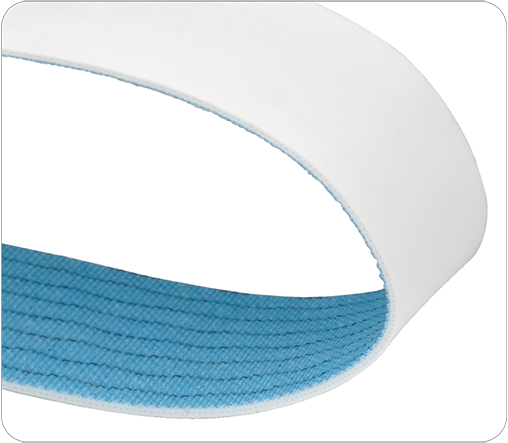

2 ply polyether based PU white, knife edge, frayless, anti-microbial and super matt finish. Antistatic. Food approved, oil and fat resistant

Technical Information

Max Production Width
78.74 in 2000.00 mm
Total Thickness
0.05 in 1.30 mm
Mass
0.31 lb/ft2 1.50 kg/m2
Tensile force at 1% elongation
After Relaxation - ref. ISO 21181
34.20 lbf/in 6.00 N/mm
Working Temp.
-4/+230 F -20/+110 C
Flexion (A)
0.20 in 5.00 mm
Counter Flexion (B)
1.18 in 30.00 mm
Coefficient of friction
Bottom side - Steel
0.20

Special Features

Food Approved, FDA Compliance acc. to 21 CFR 175.300
Food Approved, EU Compliance (EC) No. 1935/2004 & (EU) No. 10/2011
Antistatic ISO 284 & 21178
Oil & Fat Resistant
Abrasion Resistant
Antimicrobial Protection
Non Fray
Perfect 10 Super Matt Perfect 10 Super Matt

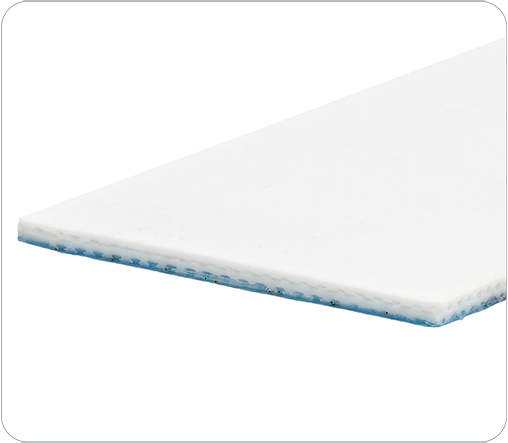

Top side (Carrying)

Material
PU
Color
White
Thickness
0.01 in 0.20 mm
Hardness
85 Shore A | ISO 868
Surface
Smooth Super Matt

Tension member

Interply
PU
Fabric
Polyester Frayless
Plies
2
Weft
Rigid

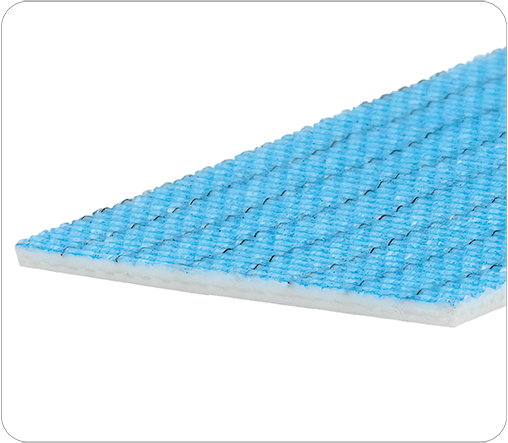

Bottom side (Pulley)

Material
Fabric
Color
Blue
Thickness
0.00 in 0.00 mm
Hardness
- Shore A | ISO 868
Surface
Impregnated

Splice Instructions

Preferred method
FS (Finger Splice)

Fingers are punched into the ends to be joined, and then tacked together and welded under pressure and heat.
This method is especially suitable for single-layered belts

  • Length of the joint 90mm
  • Length of the fingers 90mm
  • Width of the fingers 10mm

175 C 347 F 175 C 347 F 14.51 PSI 1.00 Bars 2.00 min
175 C 347 F C F 29.03 PSI 2.00 Bars No


Mechanical Fasteners

Recommended Mechanical Fasteners (at smallest pulley diameter)

Staple Lacing

Staple Lacing

Recommendation at belt minimum pulley diameter:
APF Fasteners

APF Fasteners

Recommendation at belt minimum pulley diameter:
Alligator

Alligator

Recommendation at belt minimum pulley diameter:
Clipper Lacing

Clipper Lacing

Recommendation at belt minimum pulley diameter:

Recommended mechanical fastening method

  • Applicable

  • Not Applicable

Recessed Lacing
Recessed Lacing:
Hidden Lacing
Hidden Lacing:
Plastic Spiral Finger
Plastic Spiral Finger:
Plastic Spiral Lacing
Plastic Spiral Lacing:
  • Applicable

  • Not Applicable

Recommended Uses

Recommended use: Slider Bed

Slider Bed

Flat Rollers

Flat Rollers

Slider Beds on Both sides

Slider Beds on Both sides

Channel Trough

Channel Trough

Conventional Trough

Conventional Trough

Incline Conveying

Incline Conveying

Incline Variation

Incline Variation

Bucket Elevator

Conveyor with Accumulation

Bend Conveyor

Bend Conveyor

Knife Edge Conveyor

  • Applicable

  • Limited use

  • Not Applicable

Certifications and Lab Tests

Chemical Resistance Information

Category

Chemical

Results
