Pure 10C Green
Pure 10C Green

Pure 10C Green

Description

BU/2 EM 8-00+08 DG M2 AS 2.4 mm

Article

General Characteristics

2 ply green PVC. 2.4mm thick. Antistatic. Food Approved

Technical Information

Max Production Width
0.00 in 0.00 mm
Total Thickness
0.09 in 2.40 mm
Mass
0.00 lb/ft2 0.00 kg/m2
Tensile force at 1% elongation
After Relaxation - ref. ISO 21181
45.60 lbf/in 8.00 N/mm
Working Temp.
-4/+194 F -20/+90 C
Flexion (A)
0.00 in 0.00 mm
Counter Flexion (B)
0.00 in 0.00 mm
Coefficient of friction
Bottom side - Steel
0.20

Special Features

Food Approved, FDA Compliance acc. to 21 CFR 175.300
Food Approved, EU Compliance (EC) No. 1935/2004 & (EU) No. 10/2011
Antistatic ISO 284 & 21178
Oil & Fat Resistant
Abrasion Resistant
Pure 10C Green Pure 10C Green

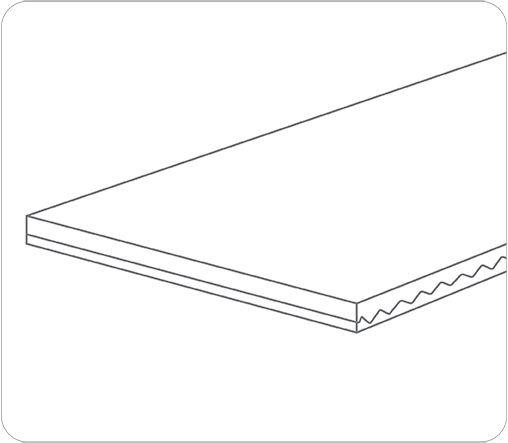

Top side (Carrying)

Material
PU
Color
Green
Thickness
0.03 in 0.80 mm
Hardness
85 Shore A | ISO 868
Surface
Smooth Matt

Tension member

Interply
PU
Fabric
Polyester Rigid
Plies
2
Weft
Rigid

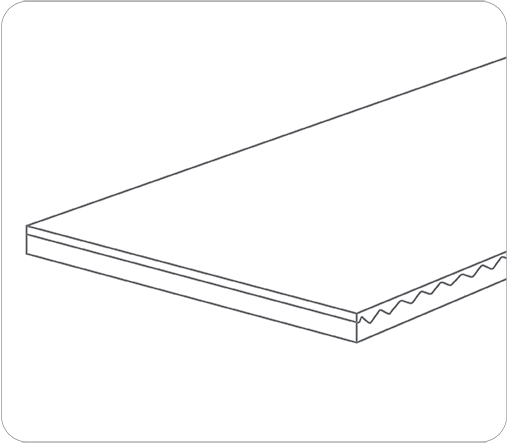

Bottom side (Pulley)

Material
Fabric
Color
Green
Thickness
0.00 in 0.00 mm
Hardness
- Shore A | ISO 868
Surface
Impregnated

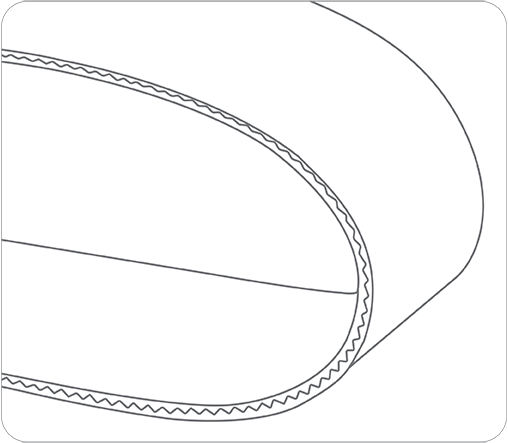

Splice Instructions

Preferred method
160 C 320 F 29.03 PSI 2.00 Bars 160 C 320 F 7.26 PSI 0.50 Bars 160 C 320 F 29.03 PSI 2.00 Bars 160 C 320 F 7.26 PSI 0.50 Bars No 2.00 min

Mechanical Fasteners

Recommended Mechanical Fasteners (at smallest pulley diameter)

Staple Lacing

Staple Lacing

Recommendation at belt minimum pulley diameter:
APF Fasteners

APF Fasteners

Recommendation at belt minimum pulley diameter:
Alligator

Alligator

Recommendation at belt minimum pulley diameter:
Clipper Lacing

Clipper Lacing

Recommendation at belt minimum pulley diameter:

Recommended mechanical fastening method

  • Applicable

  • Not Applicable

Recessed Lacing
Recessed Lacing:
Hidden Lacing
Hidden Lacing:
Plastic Spiral Finger
Plastic Spiral Finger:
Plastic Spiral Lacing
Plastic Spiral Lacing:
  • Applicable

  • Not Applicable

Recommended Uses

Recommended use: Slider Bed

Slider Bed

Flat Rollers

Flat Rollers

Slider Beds on Both sides

Slider Beds on Both sides

Channel Trough

Channel Trough

Conventional Trough

Conventional Trough

Incline Conveying

Incline Conveying

Incline Variation

Incline Variation

Bucket Elevator

Conveyor with Accumulation

Bend Conveyor

Bend Conveyor

Knife Edge Conveyor

  • Applicable

  • Limited use

  • Not Applicable

Certifications and Lab Tests

Chemical Resistance Information

Category

Chemical

Results
