Description

BU/1 EF4 - 00+03 PU white F

Article

A010200101B11023

General Characteristics

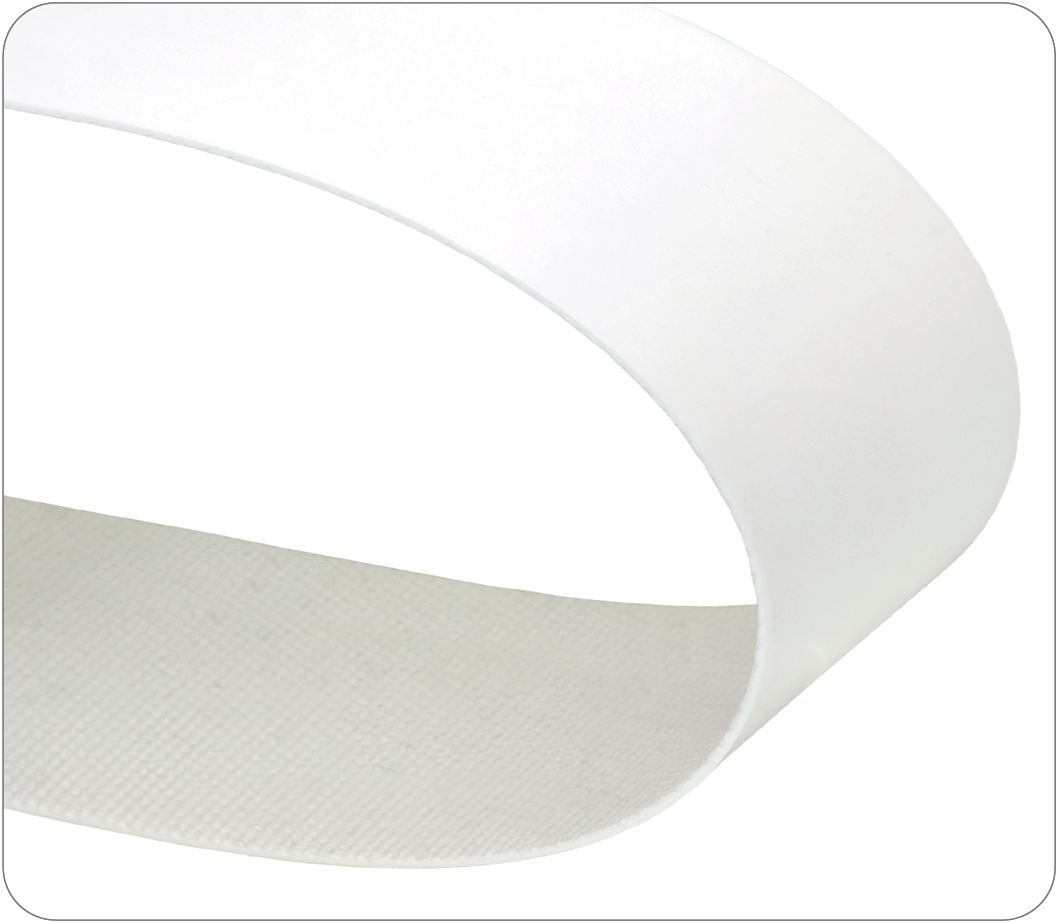

1 ply white TPU glossy, spun fabric. Food approved, oil and fat resistant.

Technical Information

Max Production Width
118.11 in 3000.00 mm
Total Thickness
0.03 in 0.80 mm
Mass
0.21 lb/ft2 1.00 kg/m2
Tensile force at 1% elongation
After Relaxation - ref. ISO 21181
22.80 lbf/in 4.00 N/mm
Working Temp.
-4/+194 F -20/+90 C
Flexion (A)
0.20 in 5.00 mm
Counter Flexion (B)
1.18 in 30.00 mm
Coefficient of friction
Bottom side - Steel
0.20

Special Features

Food Approved, FDA Compliance acc. to 21 CFR 175.300
Food Approved, EU Compliance (EC) No. 1935/2004 & (EU) No. 10/2011
Oil & Fat Resistant
Abrasion Resistant
Pure 5 Glossy Spun Pure 5 Glossy Spun

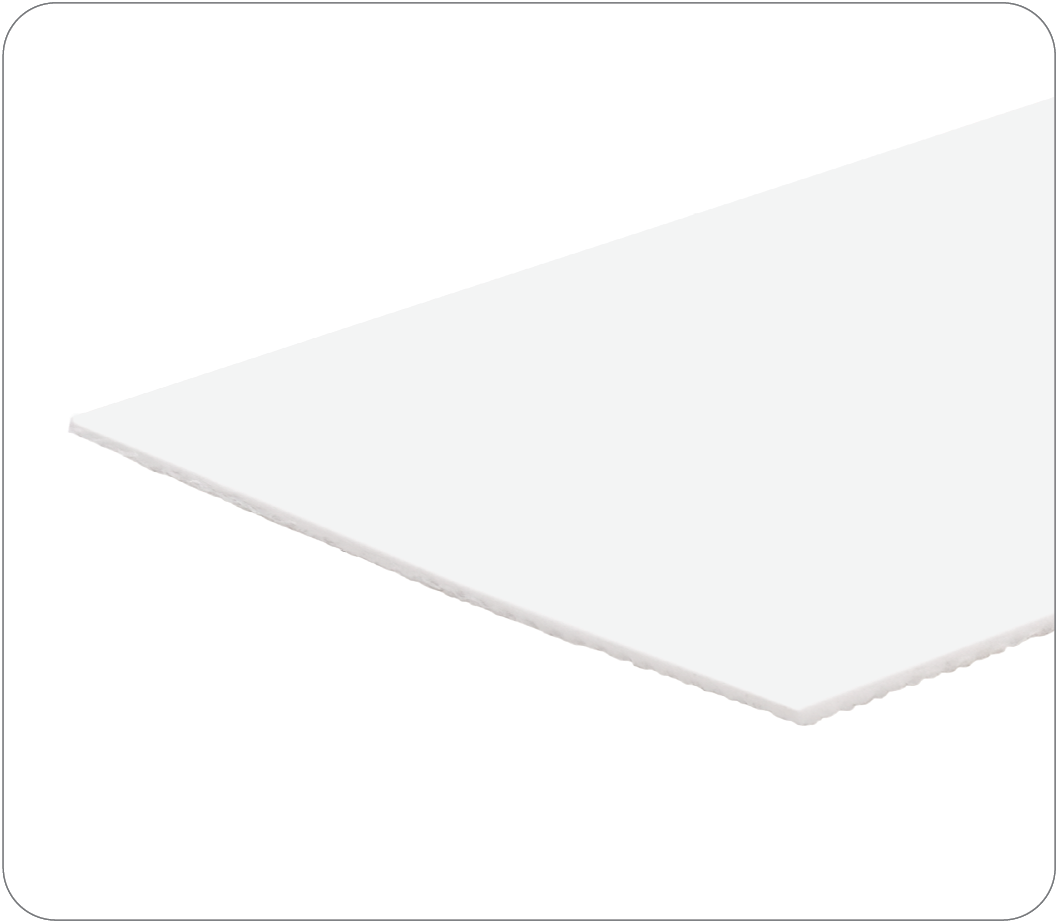

Top side (Carrying)

Material
PU
Color
White
Thickness
0.01 in 0.30 mm
Hardness
85 Shore A | ISO 868
Surface
Smooth Glossy

Tension member

Interply
Fabric
Polyester Flexible
Plies
1
Weft
Flexible

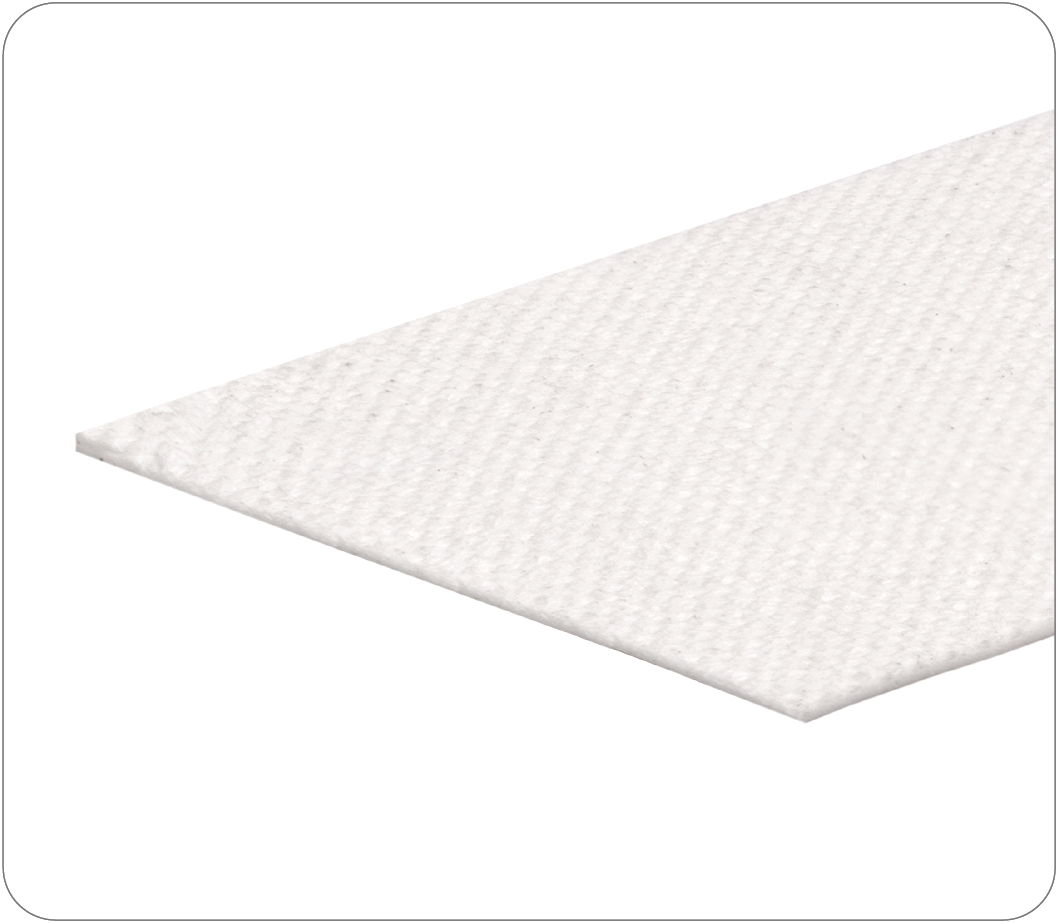

Bottom side (Pulley)

Material
Fabric
Color
White
Thickness
0.00 in 0.00 mm
Hardness
- Shore A | ISO 868
Surface
Impregnated

Splice Instructions

Preferred method
FS (Finger Splice)

Fingers are punched into the ends to be joined, and then tacked together and welded under pressure and heat.
This method is especially suitable for single-layered belts

  • Length of the joint 90mm
  • Length of the fingers 90mm
  • Width of the fingers 10mm

155 C 311 F 155 C 311 F 7.26 PSI 0.50 Bars 1.50 min
155 C 311 F 150 C 302 F 29.03 PSI 2.00 Bars No
Air cooled video instructions
Water cooled video instructions

Mechanical Fasteners

Recommended Mechanical Fasteners (at smallest pulley diameter)

Staple Lacing

Staple Lacing

Recommendation at belt minimum pulley diameter:
APF Fasteners

APF Fasteners

Recommendation at belt minimum pulley diameter:
Alligator

Alligator

Recommendation at belt minimum pulley diameter:
Clipper Lacing

Clipper Lacing

Recommendation at belt minimum pulley diameter:

Recommended mechanical fastening method

  • Applicable

  • Not Applicable

Recessed Lacing
Recessed Lacing:
Hidden Lacing
Hidden Lacing:
Plastic Spiral Finger
Plastic Spiral Finger:
Plastic Spiral Lacing
Plastic Spiral Lacing:
  • Applicable

  • Not Applicable

Recommended Uses

Recommended use: Slider Bed

Slider Bed

Flat Rollers

Flat Rollers

Slider Beds on Both sides

Slider Beds on Both sides

Channel Trough

Channel Trough

Conventional Trough

Conventional Trough

Incline Conveying

Incline Conveying

Incline Variation

Incline Variation

Bucket Elevator

Conveyor with Accumulation

Bend Conveyor

Bend Conveyor

Knife Edge Conveyor

  • Applicable

  • Limited use

  • Not Applicable
