Description

BV/2 EF 10–S18+05 AG 3.0 mm

Article

A010110303B22001

General Characteristics

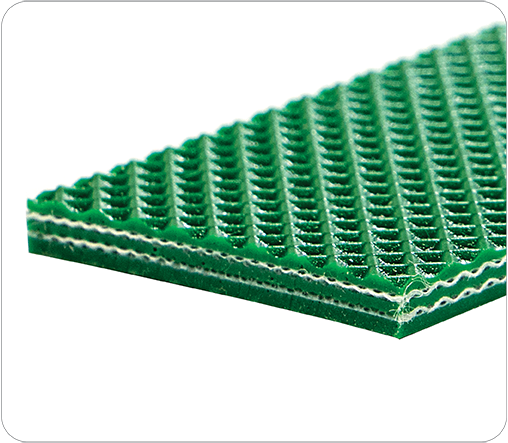

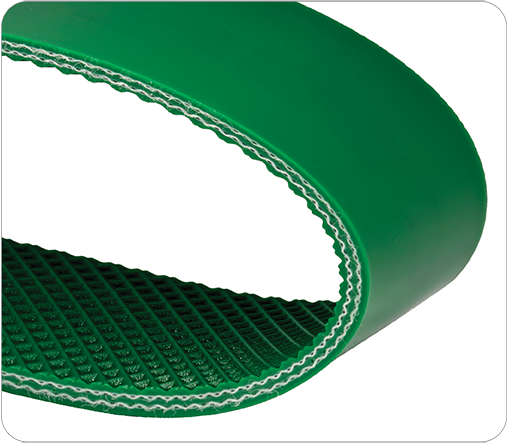

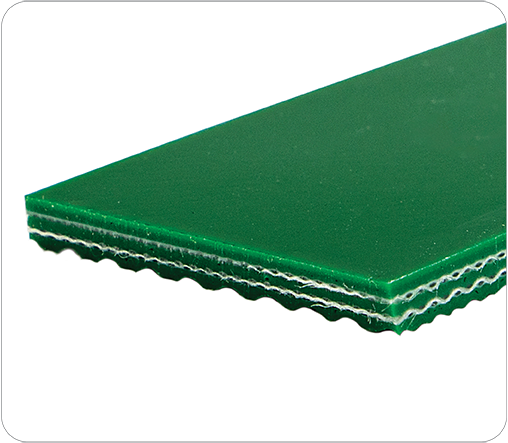

2 ply green PVC. Double cover, smooth top by inverted pyramid bottom. Flexible weft

Print Data sheet
Request Sample

Technical Information

Max Production Width
118.11 in 3000.00 mm
Total Thickness
0.12 in 3.00 mm
Mass
0.66 lb/ft2 3.20 kg/m2
Tensile force at 1% elongation
After Relaxation - ref. ISO 21181
57.00 lbf/in 10.00 N/mm
Working Temp.
14/+176 F -10/+80 C
Flexion (A)
3.15 in 80.00 mm
Counter Flexion (B)
4.72 in 120.00 mm
Coefficient of friction
Bottom side - Steel
0.40

Special Features

Hydrolysis Resistant
Easy 21 Smooth x IP Apple Easy 21 Smooth x IP Apple

Top side (Carrying)

Material
PVC
Color
Apple Green
Thickness
0.02 in 0.50 mm
Hardness
80 Shore A | ISO 868
Surface
Smooth Glossy

Tension member

Interply
PVC
Fabric
Polyester Flexible
Plies
2
Weft
Flexible

Bottom side (Pulley)

Material
PVC
Color
Apple Green
Thickness
0.02 in 0.50 mm
Hardness
80 Shore A | ISO 868
Surface
Inverted Pyramid

Splice Instructions

Preferred method
FOF (Finger Over Finger)

Fingers are punched into the ends to be joined, and then tacked together and welded under pressure and heat.
This method is especially suitable for single-layered belts

  • Length of the joint 90mm
  • Length of the fingers 90mm
  • Width of the fingers 10mm

180 C 356 F 180 C 356 F 7.26 PSI 0.50 Bars 2.00 min
180 C 356 F C F 29.03 PSI 2.00 Bars No


Mechanical Fasteners

Recommended Mechanical Fasteners (at smallest pulley diameter)

Staple Lacing

Staple Lacing

Recommendation at belt minimum pulley diameter:
RS62
APF Fasteners

APF Fasteners

Recommendation at belt minimum pulley diameter:
APF-150
Alligator

Alligator

Recommendation at belt minimum pulley diameter:
7
Clipper Lacing

Clipper Lacing

Recommendation at belt minimum pulley diameter:
25 LP, 30P, UX-1 SP, UCM36, 36, 1 SP, UX-1 LLSP, 1 LLSP, 30LP, 36 LL, 36 LLLP, UCM36 LL

Recommended mechanical fastening method

  • Applicable

  • Not Applicable

Recessed Lacing
Recessed Lacing:
Hidden Lacing
Hidden Lacing:
Plastic Spiral Finger
Plastic Spiral Finger:
Plastic Spiral Lacing
Plastic Spiral Lacing:

  • Applicable

  • Not Applicable

Recommended Uses

Recommended use: Slider Bed

Slider Bed

Flat Rollers

Flat Rollers

Slider Beds on Both sides

Slider Beds on Both sides

Channel Trough

Channel Trough

Conventional Trough

Conventional Trough

Incline Conveying

Incline Conveying

Incline Variation

Incline Variation

Bucket Elevator

Conveyor with Accumulation

Bend Conveyor

Bend Conveyor

Knife Edge Conveyor

  • Applicable

  • Limited use

  • Not Applicable

Certifications and Lab Tests
