Honey 30 Waffle Black
Request Sample
Honey 30 Waffle Black

Honey 30 Waffle Black

Description

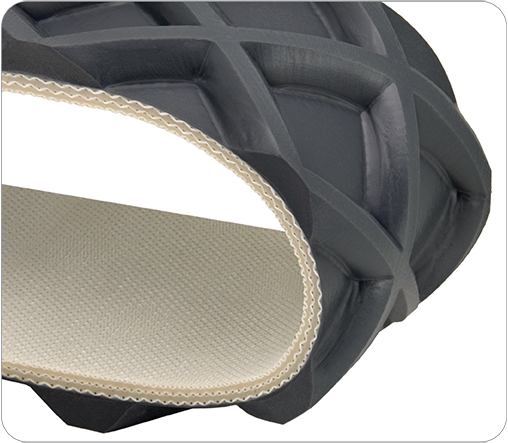

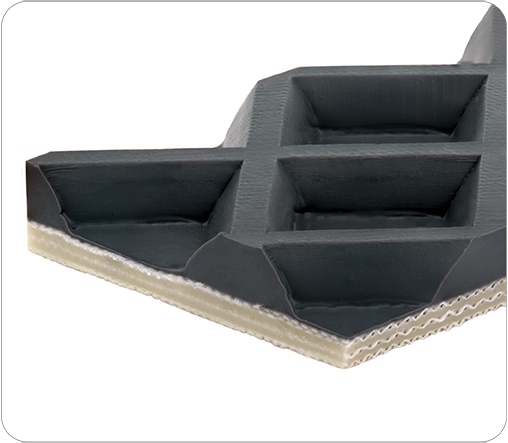

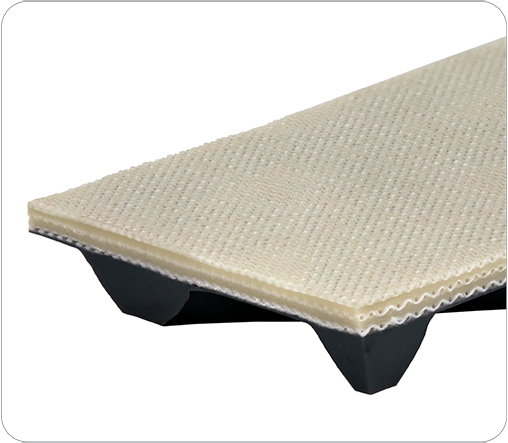

BV/3 EM18 - 0+Waffle PVC Black

Article

General Characteristics

3ply soft black PVC waffle top. Abrasion Resistant

Print Data sheet
Request Sample

Technical Information

Max Production Width
71.97 in 1828.00 mm
Total Thickness
0.34 in 8.50 mm
Mass
0.90 lb/ft2 4.39 kg/m2
Tensile force at 1% elongation
After Relaxation - ref. ISO 21181
102.60 lbf/in 18.00 N/mm
Working Temp.
-22/+212 F -30/+100 C
Flexion (A)
4.72 in 120.00 mm
Counter Flexion (B)
7.09 in 180.00 mm
Coefficient of friction
Bottom side - Steel
0.25

Special Features

Abrasion Resistant
Hydrolysis Resistant
Honey 30 Waffle Black Honey 30 Waffle Black

Top side (Carrying)

Material
PVC
Color
Black
Thickness
0.24 in 6.00 mm
Hardness
55 Shore A | ISO 868
Surface
Waffle

Tension member

Interply
PVC
Fabric
Polyester Rigid
Plies
3
Weft
Rigid

Bottom side (Pulley)

Material
Fabric
Color
Fabric
Thickness
0.00 in 0.00 mm
Hardness
- Shore A | ISO 868
Surface
Bare

Splice Instructions

Preferred method
Step Splice

Fingers are punched into the ends to be joined, and then tacked together and welded under pressure and heat.
This method is especially suitable for single-layered belts

  • Length of the joint 90mm
  • Length of the fingers 90mm
  • Width of the fingers 10mm

175 C 347 F 175 C 347 F 0.00 PSI 0.00 Bars 2.00 min
175 C 347 F 170 C 338 F 29.03 PSI 2.00 Bars


Mechanical Fasteners

Recommended Mechanical Fasteners (at smallest pulley diameter)

Staple Lacing

Staple Lacing

Recommendation at belt minimum pulley diameter:
APF Fasteners

APF Fasteners

Recommendation at belt minimum pulley diameter:
Alligator

Alligator

Recommendation at belt minimum pulley diameter:
Clipper Lacing

Clipper Lacing

Recommendation at belt minimum pulley diameter:

Recommended mechanical fastening method

  • Applicable

  • Not Applicable

Recessed Lacing
Recessed Lacing:
Hidden Lacing
Hidden Lacing:
Plastic Spiral Finger
Plastic Spiral Finger:
Plastic Spiral Lacing
Plastic Spiral Lacing:

  • Applicable

  • Not Applicable

Recommended Uses

Recommended use: Slider Bed

Slider Bed

Flat Rollers

Flat Rollers

Slider Beds on Both sides

Slider Beds on Both sides

Channel Trough

Channel Trough

Conventional Trough

Conventional Trough

Incline Conveying

Incline Conveying

Incline Variation

Incline Variation

Bucket Elevator

Conveyor with Accumulation

Bend Conveyor

Bend Conveyor

Knife Edge Conveyor

  • Applicable

  • Limited use

  • Not Applicable

Certifications and Lab Tests



Chemical Resistance Information

Category

Chemical

Results
