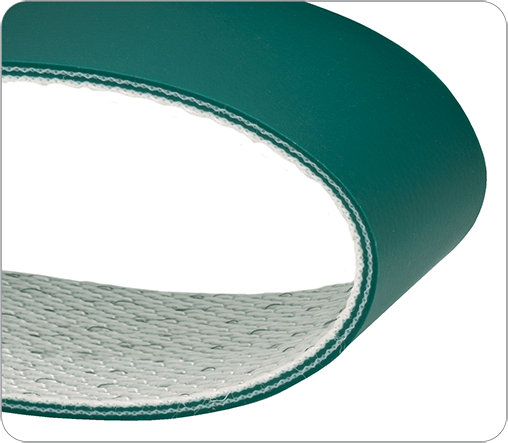

Mile 20 Green
Mile 20 Green

Mile 20 Green

Description

BV/2 EX12 - 0+05 PVC H petrol AS M2

Article

A010110710B22005

General Characteristics

2 ply green Hard PVC matt, antistatic and noiseless

Technical Information

Max Production Width
118.11 in 3000.00 mm
Total Thickness
0.09 in 2.20 mm
Mass
0.47 lb/ft2 2.30 kg/m2
Tensile force at 1% elongation
After Relaxation - ref. ISO 21181
68.40 lbf/in 12.00 N/mm
Working Temp.
14/+176 F -10/+80 C
Flexion (A)
1.57 in 40.00 mm
Counter Flexion (B)
2.36 in 60.00 mm
Coefficient of friction
Bottom side - Steel
0.20

Special Features

Antistatic ISO 284 & 21178
Abrasion Resistant
Hydrolysis Resistant
Low Noise
Mile 20 Green Mile 20 Green

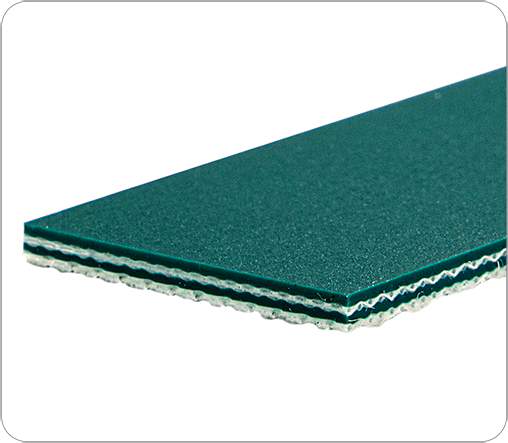

Top side (Carrying)

Material
PVC
Color
Petrol
Thickness
0.02 in 0.50 mm
Hardness
85 Shore A | ISO 868
Surface
Smooth Matt

Tension member

Interply
PVC
Fabric
Polyester Low Noise
Plies
2
Weft
Rigid

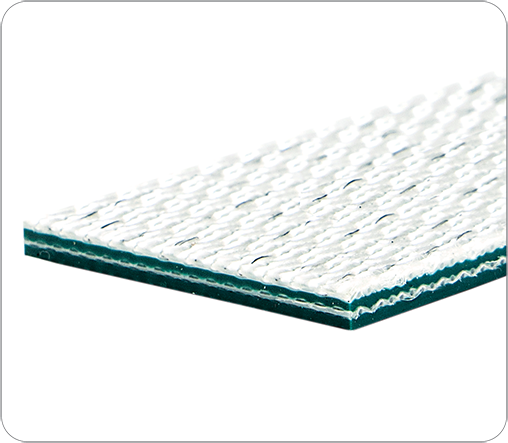

Bottom side (Pulley)

Material
Fabric
Color
Fabric
Thickness
0.00 in 0.00 mm
Hardness
- Shore A | ISO 868
Surface
Bare

Splice Instructions

Preferred method
FS (Finger Splice)

Fingers are punched into the ends to be joined, and then tacked together and welded under pressure and heat.
This method is especially suitable for single-layered belts

  • Length of the joint 90mm
  • Length of the fingers 90mm
  • Width of the fingers 10mm

180 C 356 F 180 C 356 F 7.26 PSI 0.50 Bars 2.00 min
180 C 356 F -18 C F 29.03 PSI 2.00 Bars No


Mechanical Fasteners

Recommended Mechanical Fasteners (at smallest pulley diameter)

Staple Lacing

Staple Lacing

Recommendation at belt minimum pulley diameter:
APF Fasteners

APF Fasteners

Recommendation at belt minimum pulley diameter:
Alligator

Alligator

Recommendation at belt minimum pulley diameter:
1
Clipper Lacing

Clipper Lacing

Recommendation at belt minimum pulley diameter:

Recommended mechanical fastening method

  • Applicable

  • Not Applicable

Recessed Lacing
Recessed Lacing:
Hidden Lacing
Hidden Lacing:
Plastic Spiral Finger
Plastic Spiral Finger:
Plastic Spiral Lacing
Plastic Spiral Lacing:
  • Applicable

  • Not Applicable

Recommended Uses

Recommended use: Slider Bed

Slider Bed

Flat Rollers

Flat Rollers

Slider Beds on Both sides

Slider Beds on Both sides

Channel Trough

Channel Trough

Conventional Trough

Conventional Trough

Incline Conveying

Incline Conveying

Incline Variation

Incline Variation

Bucket Elevator

Conveyor with Accumulation

Bend Conveyor

Bend Conveyor

Knife Edge Conveyor

  • Applicable

  • Limited use

  • Not Applicable

Certifications and Lab Tests



Chemical Resistance Information

Category

Chemical

Results
