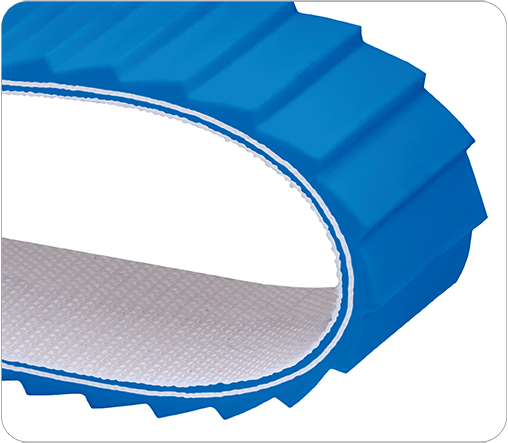

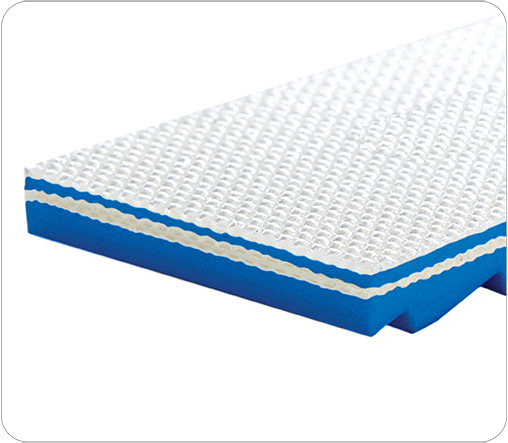

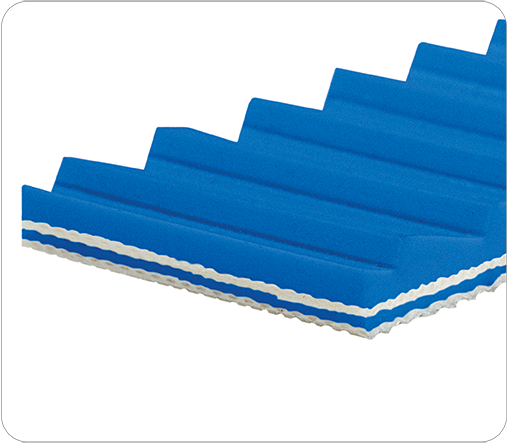

Duck 20 Blue Saw
Request Sample
Duck 20 Blue Saw

Duck 20 Blue Saw

Description

BVOR/2 EM10 - 0+S13 PVC sky blue F OR

Article

11047B

General Characteristics

2 ply blue PVC sawtooth. Food approved. Oil and fat resistant

Print Data sheet
Request Sample

Technical Information

Max Production Width
118.11 in 3000.00 mm
Total Thickness
0.18 in 4.50 mm
Mass
0.92 lb/ft2 4.50 kg/m2
Tensile force at 1% elongation
After Relaxation - ref. ISO 21181
57.00 lbf/in 10.00 N/mm
Working Temp.
14/+176 F -10/+80 C
Flexion (A)
3.15 in 80.00 mm
Counter Flexion (B)
4.72 in 120.00 mm
Coefficient of friction
Bottom side - Steel
0.20

Special Features

Food Approved, FDA Compliance acc. to 21 CFR 175.300
Food Approved, EU Compliance (EC) No. 1935/2004 & (EU) No. 10/2011
Oil & Fat Resistant
Hydrolysis Resistant
Duck 20 Blue Saw Duck 20 Blue Saw

Top side (Carrying)

Material
PVC
Color
Blue
Thickness
0.13 in 3.20 mm
Hardness
60 Shore A | ISO 868
Surface
Sawtooth

Tension member

Interply
PVC
Fabric
Polyester Rigid
Plies
2
Weft
Rigid

Bottom side (Pulley)

Material
Fabric
Color
Fabric
Thickness
0.00 in 0.00 mm
Hardness
- Shore A | ISO 868
Surface
Impregnated

Splice Instructions

Preferred method
FOF (Finger Over Finger)

Fingers are punched into the ends to be joined, and then tacked together and welded under pressure and heat.
This method is especially suitable for single-layered belts

  • Length of the joint 90mm
  • Length of the fingers 90mm
  • Width of the fingers 10mm

180 C 356 F 180 C 356 F 7.26 PSI 0.50 Bars 2.00 min
180 C 356 F -18 C F 29.03 PSI 2.00 Bars No


Mechanical Fasteners

Recommended Mechanical Fasteners (at smallest pulley diameter)

Staple Lacing

Staple Lacing

Recommendation at belt minimum pulley diameter:
RS125
APF Fasteners

APF Fasteners

Recommendation at belt minimum pulley diameter:
Alligator

Alligator

Recommendation at belt minimum pulley diameter:
20
Clipper Lacing

Clipper Lacing

Recommendation at belt minimum pulley diameter:
U2, 2, UA3, U3-2

Recommended mechanical fastening method

  • Applicable

  • Not Applicable

Recessed Lacing
Recessed Lacing:
Hidden Lacing
Hidden Lacing:
Plastic Spiral Finger
Plastic Spiral Finger:
Plastic Spiral Lacing
Plastic Spiral Lacing:

  • Applicable

  • Not Applicable

Recommended Uses

Recommended use: Slider Bed

Slider Bed

Flat Rollers

Flat Rollers

Slider Beds on Both sides

Slider Beds on Both sides

Channel Trough

Channel Trough

Conventional Trough

Conventional Trough

Incline Conveying

Incline Conveying

Incline Variation

Incline Variation

Bucket Elevator

Conveyor with Accumulation

Bend Conveyor

Bend Conveyor

Knife Edge Conveyor

  • Applicable

  • Limited use

  • Not Applicable

Certifications and Lab Tests

FOOD COMPLIANCE DECLARATION
VIEW FOOD COMPLIANCE
DECLARATION
FDA/EU LAB TEST RESULTS
VIEW FDA/EU LAB
TEST RESULTS
VIEW EU REACH LAB TEST RESULTS
VIEW EU REACH LAB
TEST RESULTS

Chemical Resistance Information

Category

Chemical

Results

DOWNLOAD FULL CHART

Download INO USA
Lighteight Belt catalog

Download
Lighteight Belt Catalog
