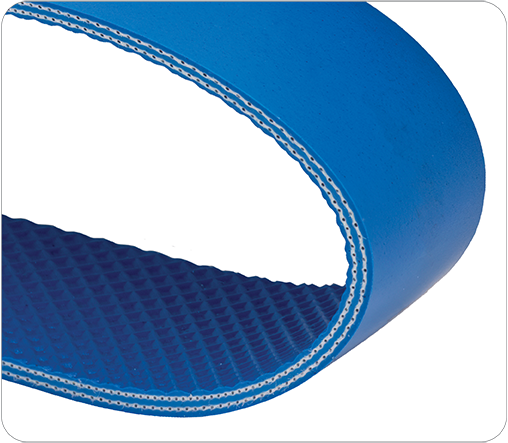

Duck 20 Smooth x IP Blue
Duck 20 Smooth x IP Blue

Duck 20 Smooth x IP Blue

Description

BVOR/2 EM10 - S18+05 PVC sky blue F OR 3.0

Article

11085

General Characteristics

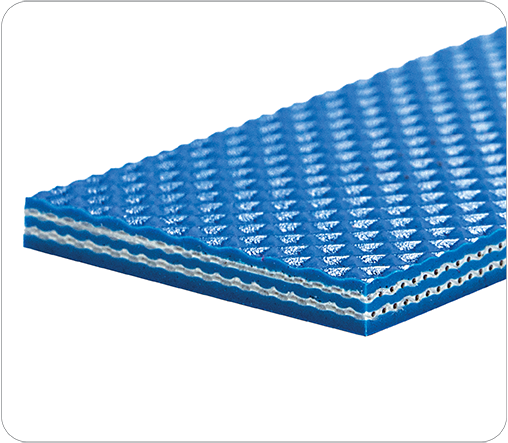

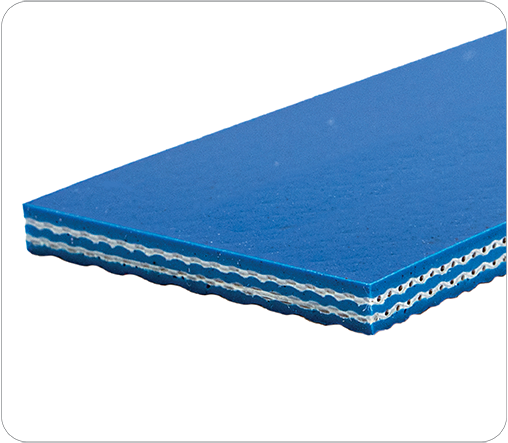

2 ply blue PVC double cover, smooth top by inverted pyramid bottom. Food approved. Oil and fat resistant

Technical Information

Max Production Width
118.11 in 3000.00 mm
Total Thickness
0.12 in 3.00 mm
Mass
0.66 lb/ft2 3.20 kg/m2
Tensile force at 1% elongation
After Relaxation - ref. ISO 21181
57.00 lbf/in 10.00 N/mm
Working Temp.
14/+176 F -10/+80 C
Flexion (A)
3.15 in 80.00 mm
Counter Flexion (B)
4.72 in 120.00 mm
Coefficient of friction
Bottom side - Steel
0.40

Special Features

Food Approved, FDA Compliance acc. to 21 CFR 175.300
Food Approved, EU Compliance (EC) No. 1935/2004 & (EU) No. 10/2011
Oil & Fat Resistant
Hydrolysis Resistant
Duck 20 Smooth x IP Blue Duck 20 Smooth x IP Blue

Top side (Carrying)

Material
PVC
Color
Blue
Thickness
0.02 in 0.50 mm
Hardness
70 Shore A | ISO 868
Surface
Smooth Glossy

Tension member

Interply
PVC
Fabric
Polyester Rigid
Plies
2
Weft
Rigid

Bottom side (Pulley)

Material
PVC
Color
Blue
Thickness
0.02 in 0.50 mm
Hardness
60 Shore A | ISO 868
Surface
Impregnated

Splice Instructions

Preferred method
180 C 356 F 29.03 PSI 2.00 Bars 180 C 356 F 7.26 PSI 0.50 Bars 180 C 356 F 29.03 PSI 2.00 Bars 180 C 356 F 7.26 PSI 0.50 Bars No 2.00 min

Mechanical Fasteners

Recommended Mechanical Fasteners (at smallest pulley diameter)

Staple Lacing

Staple Lacing

Recommendation at belt minimum pulley diameter:
APF Fasteners

APF Fasteners

Recommendation at belt minimum pulley diameter:
Alligator

Alligator

Recommendation at belt minimum pulley diameter:
7
Clipper Lacing

Clipper Lacing

Recommended mechanical fastening method

  • Applicable

  • Not Applicable

Recessed Lacing
Recessed Lacing:
Hidden Lacing
Hidden Lacing:
Plastic Spiral Finger
Plastic Spiral Finger:
Plastic Spiral Lacing
Plastic Spiral Lacing:
  • Applicable

  • Not Applicable

Recommended Uses

Recommended use: Slider Bed

Slider Bed

Flat Rollers

Flat Rollers

Slider Beds on Both sides

Slider Beds on Both sides

Channel Trough

Channel Trough

Conventional Trough

Conventional Trough

Incline Conveying

Incline Conveying

Incline Variation

Incline Variation

Bucket Elevator

Conveyor with Accumulation

Bend Conveyor

Bend Conveyor

Knife Edge Conveyor

  • Applicable

  • Limited use

  • Not Applicable

Certifications and Lab Tests

Chemical Resistance Information

Category

Chemical

Results
