Duck 21 Smooth x IP

Duck 21 Smooth x IP

Description

BVOR/2 EF10 - S18+07 PVC white F OR

Article

A010120101B23002

General Characteristics

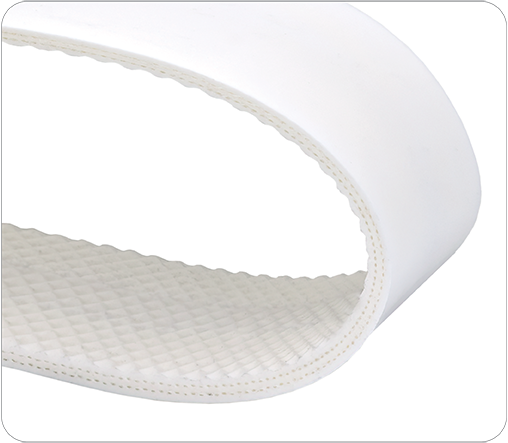

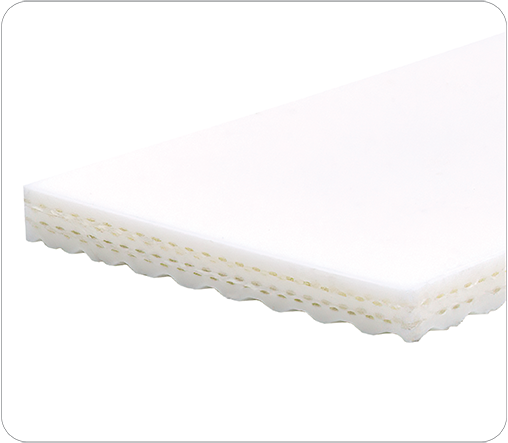

2 ply white PVC double cover, smooth top by inverted pyramid bottom. Food approved. Oil and fat resistant. Flexible weft.

Print Data sheet
Request Sample

Technical Information

Max Production Width
118.11 in 3000.00 mm
Total Thickness
0.12 in 3.00 mm
Mass
0.68 lb/ft2 3.30 kg/m2
Tensile force at 1% elongation
After Relaxation - ref. ISO 21181
57.00 lbf/in 10.00 N/mm
Working Temp.
14/+176 F -10/+80 C
Flexion (A)
3.15 in 80.00 mm
AB Belt Schema
Counter Flexion (B)
4.72 in 120.00 mm
Coefficient of friction
Bottom side - Steel
0.40

Special Features

Food Approved, FDA Compliance acc. to 21 CFR 175.300
Food Approved, EU Compliance (EC) No. 1935/2004 & (EU) No. 10/2011
Oil & Fat Resistant
Hydrolysis Resistant
Duck 21 Smooth x IP Duck 21 Smooth x IP

Top side (Carrying)

Material
PVC
Color
White
Thickness
0.03 in 0.70 mm
Hardness
70 Shore A | ISO 868
Surface
Smooth Glossy

Tension member

Interply
PVC
Fabric
Polyester Flexible
Plies
2
Weft
Rigid

Bottom side (Pulley)

Material
PVC
Color
White
Thickness
0.02 in 0.50 mm
Hardness
60 Shore A | ISO 868
Surface

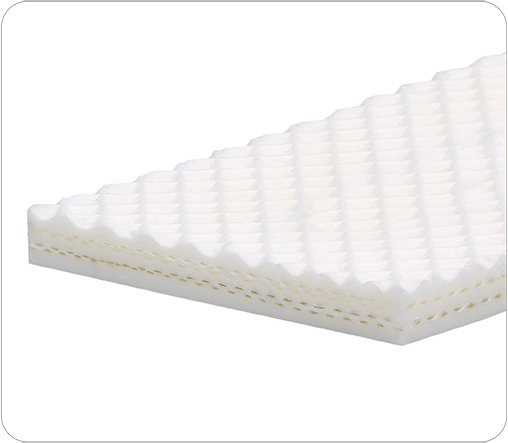

Inverted Pyramid
wave horizontal addon

Splice Instructions

6
Preferred method
FOF (Finger Over Finger)

Fingers are punched into the ends to be joined, and then tacked together and welded under pressure and heat.
This method is especially suitable for single-layered belts

  • Length of the joint 90mm
  • Length of the fingers 90mm
  • Width of the fingers 10mm

180 C 356 F 180 C 356 F 7.26 PSI 0.50 Bars 2.00 min
180 C 356 F -18 C 0 F 29.03 PSI 2.00 Bars No

Wave horizontal white

Mechanical Fasteners

Recommended Mechanical Fasteners (at smallest pulley diameter)

Staple Lacing

Staple Lacing

Recommendation at belt minimum pulley diameter:
RS62
APF Fasteners

APF Fasteners

Recommendation at belt minimum pulley diameter:
APF-150
Alligator

Alligator

Recommendation at belt minimum pulley diameter:
7
Clipper Lacing

Clipper Lacing

Recommendation at belt minimum pulley diameter:
25 LP, 30P, UX-1 SP, UCM36, 36, 1 SP, UX-1 LLSP, 1 LLSP, 30LP, 36 LL, 36 LLLP, UCM36 LL

Recommended mechanical fastening method

  • Applicable

  • Not Applicable

Recessed Lacing
Recessed Lacing:
Hidden Lacing
Hidden Lacing:
Plastic Spiral Finger
Plastic Spiral Finger:
Plastic Spiral Lacing
Plastic Spiral Lacing:

  • Applicable

  • Not Applicable

wave horizontal addon

Recommended Uses

Recommended use: Slider Bed

Slider Bed

Flat Rollers

Flat Rollers

Slider Beds on Both sides

Slider Beds on Both sides

Channel Trough

Channel Trough

Conventional Trough

Conventional Trough

Incline Conveying

Incline Conveying

Incline Variation

Incline Variation

Bucket Elevator

Bucket Elevator

Conveyor with Accumulation

Conveyor with Accumulation

Bend Conveyor

Bend Conveyor

Knife Edge Conveyor

Knife Edge Conveyor
