Duck 31 Smooth x Smooth
Request Sample

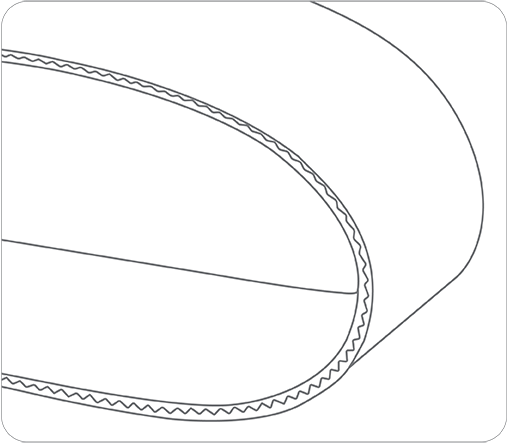

Duck 31 Smooth x Smooth

Duck 31 Smooth x Smooth

Description

Article

General Characteristics

3 ply double cover PVC. Fire retardant, antistatic and abrasion resistant. Food Approved

Print Data sheet
Request Sample

Technical Information

Max Production Width
0.00 in 0.00 mm
Total Thickness
0.24 in 6.00 mm
Mass
1.56 lb/ft2 7.60 kg/m2
Tensile force at 1% elongation
After Relaxation - ref. ISO 21181
136.80 lbf/in 24.00 N/mm
Working Temp.
-4/+194 F -20/+90 C
Flexion (A)
7.87 in 200.00 mm
AB Belt Schema
Counter Flexion (B)
11.81 in 300.00 mm
Coefficient of friction
Bottom side - Steel
0.60

Special Features

Food Approved, FDA Compliance acc. to 21 CFR 175.300
Food Approved, EU Compliance (EC) No. 1935/2004 & (EU) No. 10/2011
Antistatic ISO 284 & 21178
Flame Retardant ISO 340
Oil & Fat Resistant
Abrasion Resistant
Duck 31 Smooth x Smooth Duck 31 Smooth x Smooth

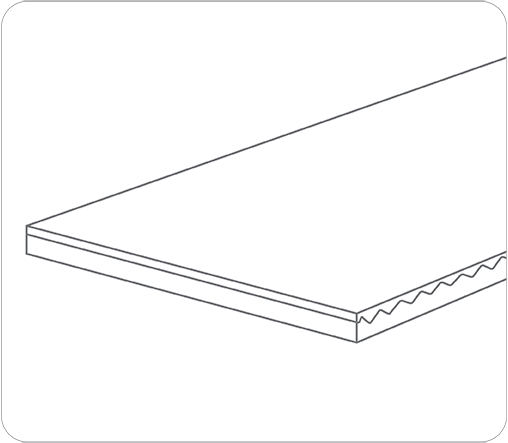

Top side (Carrying)

Material
PVC
Color
White
Thickness
0.08 in 2.00 mm
Hardness
75 Shore A | ISO 868
Surface
Smooth Matt

Tension member

Interply
PVC
Fabric
Polyester Flexible
Plies
3
Weft
Flexible

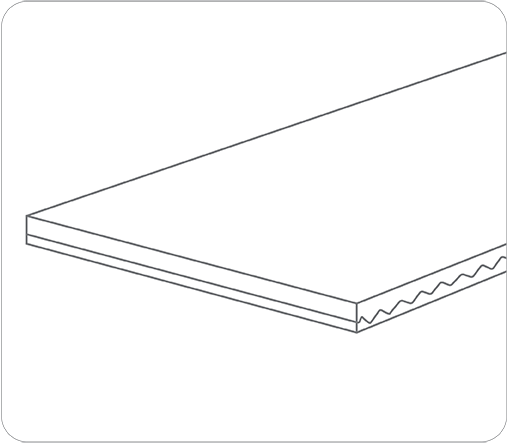

Bottom side (Pulley)

Material
PVC
Color
White
Thickness
0.03 in 0.70 mm
Hardness
75 Shore A | ISO 868
Surface
Smooth Matt
wave horizontal addon

Splice Instructions

7
Preferred method
Step Splice

Fingers are punched into the ends to be joined, and then tacked together and welded under pressure and heat.
This method is especially suitable for single-layered belts

  • Length of the joint 90mm
  • Length of the fingers 90mm
  • Width of the fingers 10mm

180 C 356 F 180 C 356 F 14.51 PSI 1.00 Bars 3.00 min
180 C 356 F 180 C 356 F 29.03 PSI 2.00 Bars No

Wave horizontal white

Mechanical Fasteners

Recommended Mechanical Fasteners (at smallest pulley diameter)

Staple Lacing

Staple Lacing

Recommendation at belt minimum pulley diameter:
RS187
APF Fasteners

APF Fasteners

Recommendation at belt minimum pulley diameter:
Alligator

Alligator

Recommendation at belt minimum pulley diameter:
27
Clipper Lacing

Clipper Lacing

Recommendation at belt minimum pulley diameter:
3-4 1/2, 4, U4, 4 AP

Recommended mechanical fastening method

  • Applicable

  • Not Applicable

Recessed Lacing
Recessed Lacing:
Hidden Lacing
Hidden Lacing:
Plastic Spiral Finger
Plastic Spiral Finger:
Plastic Spiral Lacing
Plastic Spiral Lacing:

  • Applicable

  • Not Applicable

wave horizontal addon

Recommended Uses

Recommended use: Slider Bed

Slider Bed

Flat Rollers

Flat Rollers

Slider Beds on Both sides

Slider Beds on Both sides

Channel Trough

Channel Trough

Conventional Trough

Conventional Trough

Incline Conveying

Incline Conveying

Incline Variation

Incline Variation

Bucket Elevator

Bucket Elevator

Conveyor with Accumulation

Conveyor with Accumulation

Bend Conveyor

Bend Conveyor

Knife Edge Conveyor

Knife Edge Conveyor

  • Applicable

  • Limited use

  • Not Applicable

Wave horizontal white

Certifications and Lab Tests

FOOD COMPLIANCE DECLARATION
VIEW FOOD COMPLIANCE
DECLARATION
wave horizontal addon

Chemical Resistance Information

Category

Chemical

Results

DOWNLOAD FULL CHART
