Live Blue
Request Sample
Live Blue

Live Blue

Description

LIVE ROLLERS

Article

-

General Characteristics

Excellent grip with a high friction rough top pattern cover. High tensile strength with aramid cords.

Print Data sheet
Request Sample

Technical Information

Max Production Width
1.77 in 45 mm
Total Thickness
0.17 in 4.40 mm
Mass
0.98 lb/ft2 4.80 kg/m2
Tensile force at 1% elongation
After Relaxation - ref. ISO 21181
342 lbf/in 60 N/mm
Working Temp.
14/+140 F -10/+60 C
Flexion (A)
3.94 in 100 mm
AB Belt Schema
Counter Flexion (B)
5.90 in 150 mm
Coefficient of friction
Bottom side - Steel
0.50

Special Features

Antistatic
Fray-less

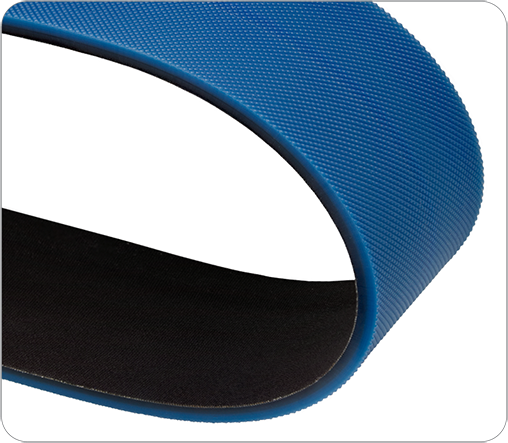

Live Blue Live Blue

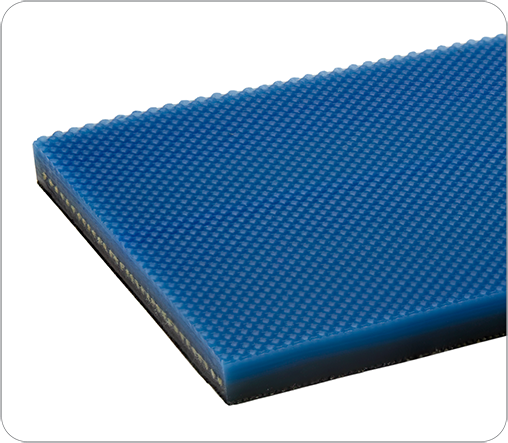

Top side (Carrying)

Material
PU
Color
Blue
Hardness
90 Shore A | DIN53505
Surface
Texture Structure

Tension member

Cords
Aramid Cords
Fabric
Plies
Weft

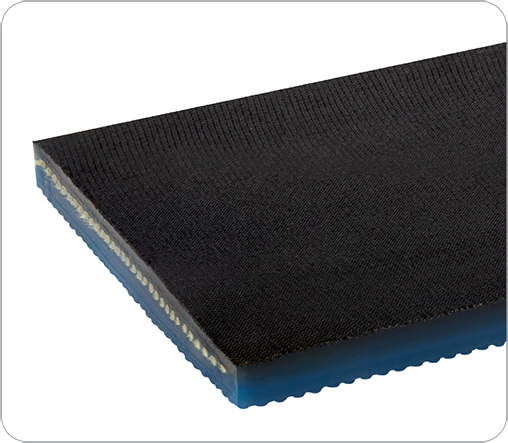

Bottom side (Pulley)

Material
PU
Color
Black
Hardness
90 Shore A | DIN53505
Surface
PA Fabric
wave horizontal addon

Splice Instructions

Finger splice
Preferred method
Finger splice


  • Splice Type Finger Splice (5 to 10 inches)
  • Pressure 2 BARS | 29 PSI
  • Top/Bottom Temp. 180˚C | 350 F
  • Dwell Time 4 Minutes
  • Cool Down 70˚C | 160 F
  • Recommended Press Small Air-Cooled Press (Flexco Novitool® AERO® 325)
