Live Double Blue
Request Sample
Live Double Blue

Live Double Blue

Description

LIVE ROLLERS

Article

-

General Characteristics

Excellent grip with a high friction rough top pattern cover. High tensile strength with aramid cords.

Print Data sheet
Request Sample

Technical Information

Max Production Width
1.77 in 45 mm
Total Thickness
0.165 in 4.20 mm
Mass
0.98 lb/ft2 4.80 kg/m2
Tensile force at 1% elongation
After Relaxation - ref. ISO 21181
342 lbf/in 60 N/mm
Working Temp.
14/+140 F -10/+60 C
Flexion (A)
3.94 in 100 mm
AB Belt Schema
Counter Flexion (B)
5.90 in 150 mm
Coefficient of friction
Bottom side - Steel
0.50

Special Features

Fray-less

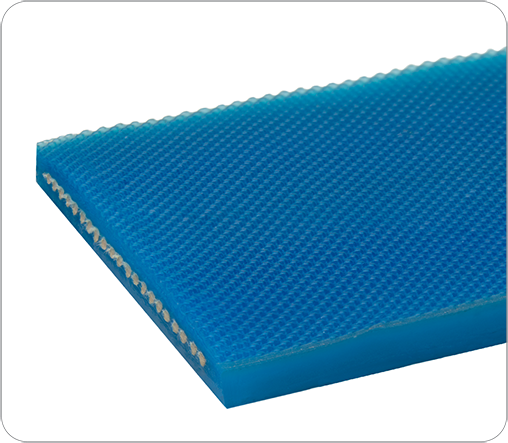

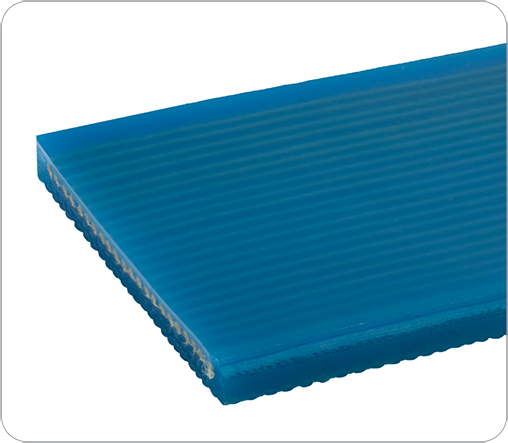

Live Double Blue Live Double Blue

Top side (Carrying)

Material
PU
Color
Blue
Hardness
90 Shore A | DIN53505
Surface
Texture Structure

Tension member

Cords
Aramid Cords
Fabric
Plies
Weft

Bottom side (Pulley)

Material
PU
Color
Blue
Hardness
90 Shore A | DIN53505
Surface
Glossy
wave horizontal addon

Splice Instructions

Finger splice
Preferred method
Finger splice


  • Splice Type Finger Splice (5 to 10 inches)
  • Pressure 2 BARS | 29 PSI
  • Top/Bottom Temp. 180˚C | 350 F
  • Dwell Time 8 Minutes
  • Cool Down 70˚C | 160 F
  • Recommended Press  Small Air-Cooled Press (Flexco Novitool® AERO® 325)
