AT10 Steel (32) Linear PAZ

AT10 Steel (32) Linear PAZ

General Characteristics

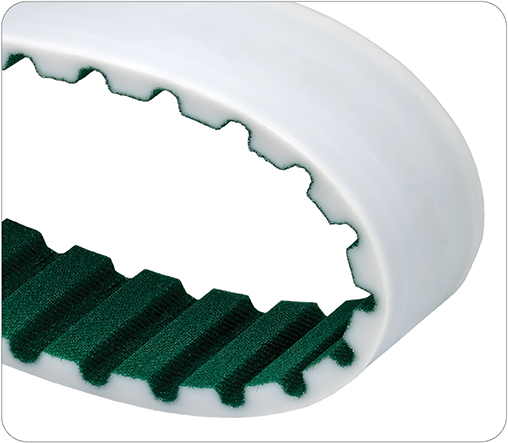

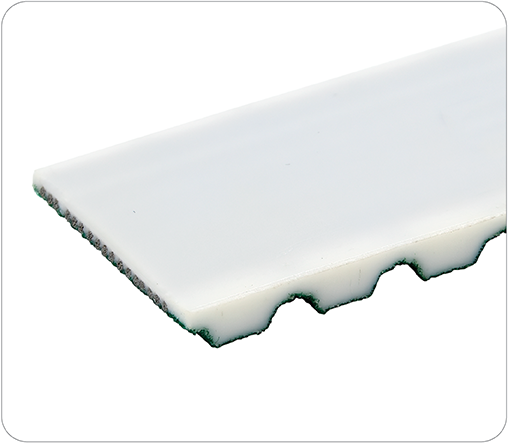

AT Profile- 10mm Pitch Linear White TPU. Steel Cords. 32mm slit lanes. Nylon fabric on teeth

Print Data sheet
Request Sample
AT10 Steel (32) Linear PAZ

Technical Information

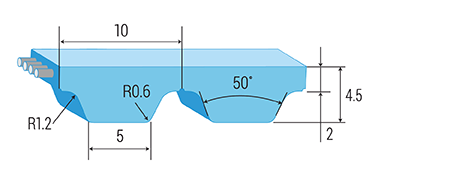

Profile
AT
Pitch
10.000 mm 0.39 in
Max Width
150.00 mm 5.91 in
Min Welded Length
500 mm 19.69 in
Max Welded Length
100000 mm 3937.01 in
Hardness
92 Shore A | ISO 868
Material
PU
Cord
Steel
Slit Lanes
32 (mm)

Tolerance

Length
+/- 0.50 mm/m
Width
+/- 0.50 mm/m
Height
+/- 0.30 mm/m

Special Features

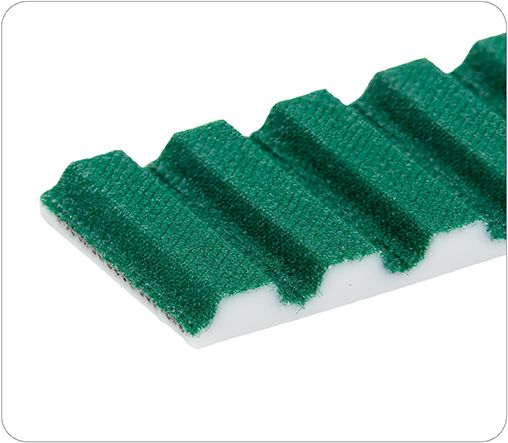

PAZ - nylon fabric on teeth
AT10 Steel (32) Linear PAZ
AT10 Steel (32) Linear PAZ

Specifications

Standard Width
(mm)
Weight
(gr/m)
Max Load
(N)
Max Woad Welded
(N)
Breaking
(N)
Elongation
(N/mm*m)
10
61
1425
712
5700
318
16
97
2612
1306
10450
583
25
152
4037
2018
16150
901
32
194
5225
2612
20900
1166
50
303
8075
4037
32300
1802
75
455
12112
6056
48450
2703
100
615
16150
8075
64600
3604
150
910
24225
12112
96900
5406

Pulley teeth and idler diameter

Requirements for pulleys and tension roller
Min number of teeth
Min Diameter (mm)
Diameter of tension roller (mm)
No Counter Flexion
15
45.90
50
With Counter Flexion
25
77.73
120

Tooth force for power calculation

Speed (1/min)
0
25
50
75
100
250
500
1000
2000
Tooth Force (N/mm)
7.57
7.43
7.30
7.18
7.08
6.82
5.92
5.08
4.13

Technical pulley data

Number of teeth
Outside Diameter
(mm)
Effective Diameter
(mm)
Diameter of Flange
(mm)
15
45.90
47.75
52
16
49.08
50.93
55
18
55.45
57.30
61
19
58.63
60.48
65
20
61.81
63.66
68
22
68.18
70.03
74
24
74.54
76.39
80
25
77.73
79.58
84
26
80.91
82.76
87
Number of teeth
Outside Diameter
(mm)
Effective Diameter
(mm)
Diameter of Flange
(mm)
27
84.09
85.94
90
28
87.28
89.13
93
30
93.64
95.49
100
32
100.01
101.86
106
36
112.74
114.59
119
40
125.47
127.32
131
44
138.21
140.06
144
48
150.94
152.79
157
60
189.14
190.99
195
