General Characteristics

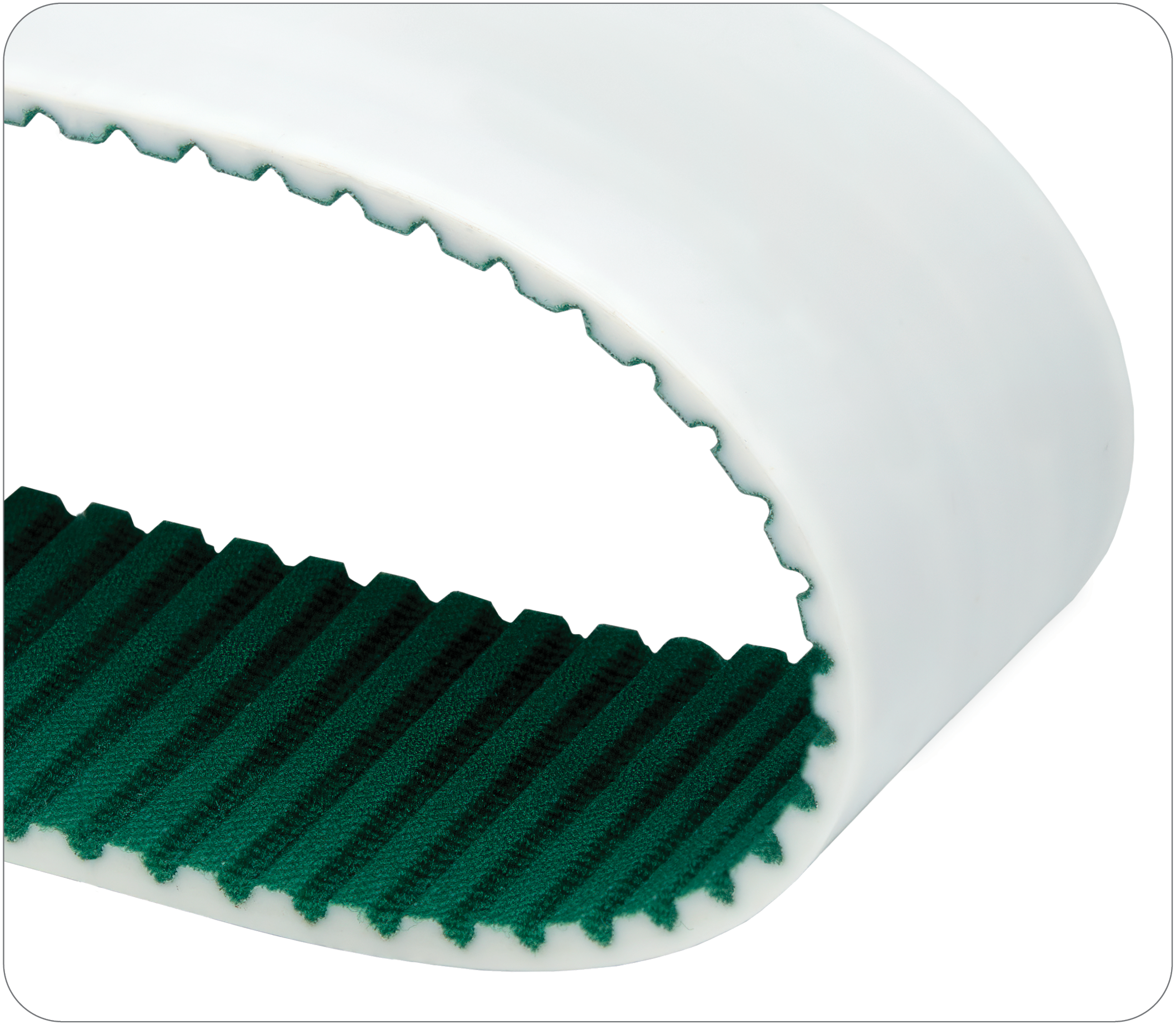

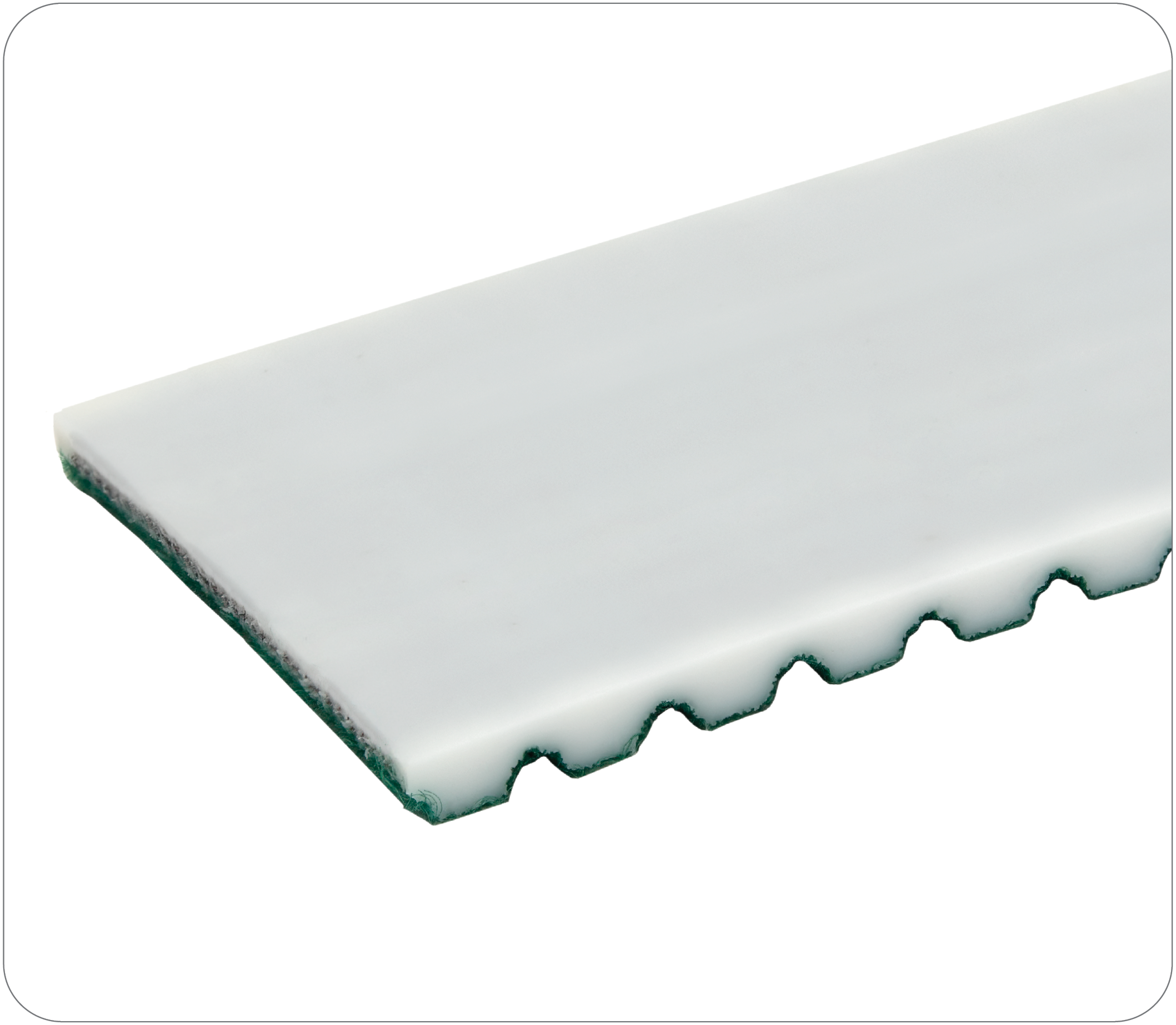

AT Profile- 5mm Pitch Linear White TPU . Steel Cords. 25mm slit lanes. Nylon fabric on teeth

AT5 Steel (25) Linear PAZ

Technical Information

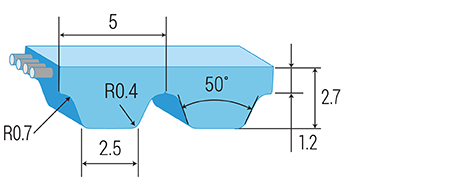

Profile
AT
Pitch
5.00 mm 0.20 in
Max Width
150.00 mm 5.91 in
Min Welded Length
500 mm 19.69 in
Max Welded Length
100000 mm 3937.01 in
Hardness
92 Shore A | ISO 868
Material
PU
Cord
Steel

Tolerance

Length
+/- 0.50 mm/m
Width
+/- 0.50 mm/m
Height
+/- 0.25 mm/m

Special Features

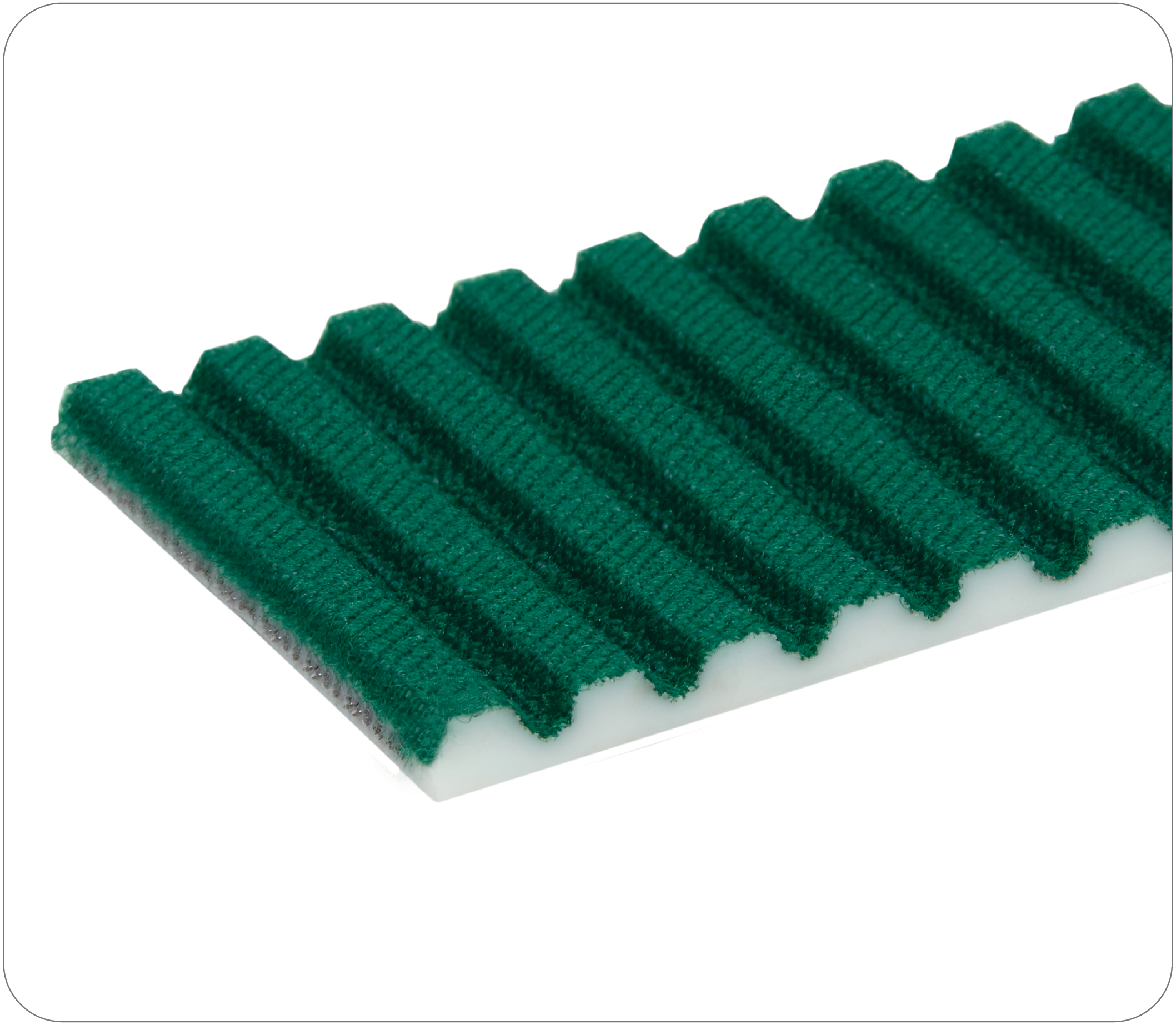

PAZ - nylon fabric on teeth
AT5 Steel (25) Linear PAZ
AT5 Steel (25) Linear PAZ

Specifications

Standard Width
(mm)
Weight
(gr/m)
Max Load
(N)
Max Woad Welded
(N)
Breaking
(N)
Elongation
(N/mm*m)
10
36
840
420
3360
208
16
57
1470
735
5880
364
25
90
2310
1155
9240
572
32
114
2940
1470
11760
728
50
179
4620
2310
18480
1144
75
269
6930
3465
27720
1760
100
358
9240
4620
36960
2288
150
537
13850
6925
55400
3432

Pulley teeth and idler diameter

Requirements for pulleys and tension roller
Min number of teeth
Min Diameter (mm)
Diameter of tension roller (mm)
No Counter Flexion
15
22.64
30
With Counter Flexion
25
38.56
60

Tooth force for power calculation

Speed (1/min)
0
25
50
75
100
250
500
1000
2000
Tooth Force (N/mm)
3.64
3.57
3.50
3.47
3.42
3.25
3.00
2.65
2.24

Technical pulley data

Number of teeth
Outside Diameter
(mm)
Effective Diameter
(mm)
Diameter of Flange
(mm)
15
22.64
23.87
28
16
24.23
25.46
31
18
27.72
28.65
34
19
29.00
30.24
35
20
30.60
31.83
37
22
33.78
35.01
40
24
36.97
38.20
43
25
38.56
39.79
45
26
40.15
41.38
46
Number of teeth
Outside Diameter
(mm)
Effective Diameter
(mm)
Diameter of Flange
(mm)
27
41.74
42.97
48
28
43.33
44.56
50
30
46.52
47.75
53
32
49.70
50.93
56
36
56.07
57.30
62
40
62.43
63.66
69
42
65.62
65.25
72
44
68.80
70.03
75
48
75.16
76.39
81
