ATK10 Steel Linear K13

ATK10 Steel Linear K13

General Characteristics

AT Profile- 10mm Pitch Linear White TPU Timing Belt. Steel Cords. K13 molded Notched guide

Print Data sheet
Request Sample
ATK10 Steel Linear K13

Technical Information

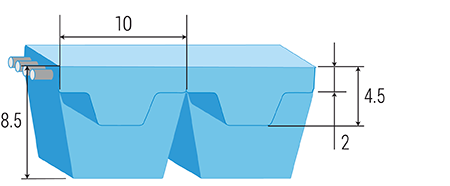

Profile
AT
Pitch
10.00 mm 0.39 in
Max Width
150.00 mm 5.91 in
Min Welded Length
500 mm 19.69 in
Max Welded Length
100000 mm 3937.01 in
Hardness
92 Shore A | ISO 868
Material
PU
Cord
Steel

Tolerance

Length
+/- 0.50 mm/m
Width
+/- 0.50 mm/m
Height
+/- 0.30 mm/m

Special Features

K13 - molded K13 notched guide
ATK10 Steel Linear K13
ATK10 Steel Linear K13

Specifications

Standard Width
(mm)
Weight
(gr/m)
Max Load
(N)
Max Woad Welded
(N)
Breaking
(N)
Elongation
(N/mm*m)
25
246
4037
2018
16150
901
32
290
5225
2612
20900
1166
50
397
8075
4037
32300
1802
75
545
12112
6056
48450
2703
100
695
16150
8075
64600
3604

Pulley teeth and idler diameter

Requirements for pulleys and tension roller
Min number of teeth
Min Diameter (mm)
Diameter of tension roller (mm)
No Counter Flexion
25
77.73
78
With Counter Flexion
25
77.73
100

Tooth force for power calculation

Speed (1/min)
0
25
50
75
100
250
500
1000
2000
Tooth Force (N/mm)
7.57
7.43
7.30
7.18
7.08
6.82
5.92
5.08
4.13

Technical pulley data

Number of teeth
Outside Diameter
(mm)
Effective Diameter
(mm)
Diameter of Flange
(mm)
25
77.73
79.58
84
26
80.91
82.76
87
27
84.09
85.94
90
28
87.28
89.13
93
30
93.64
95.49
100
32
100.01
101.86
106
36
112.74
114.59
119
40
125.47
127.32
131
44
138.21
140.06
144
Number of teeth
Outside Diameter
(mm)
Effective Diameter
(mm)
Diameter of Flange
(mm)
48
150.4
152.79
157
60
189.14
190.99
195
