General Characteristics

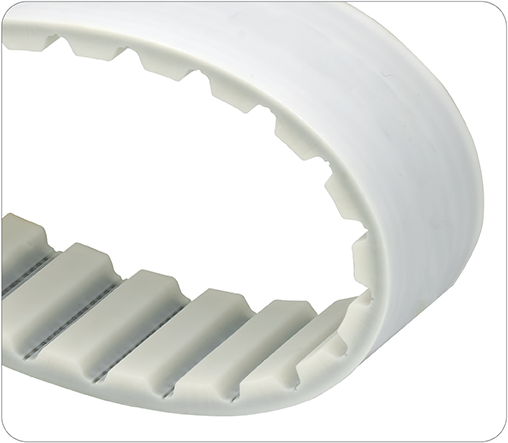

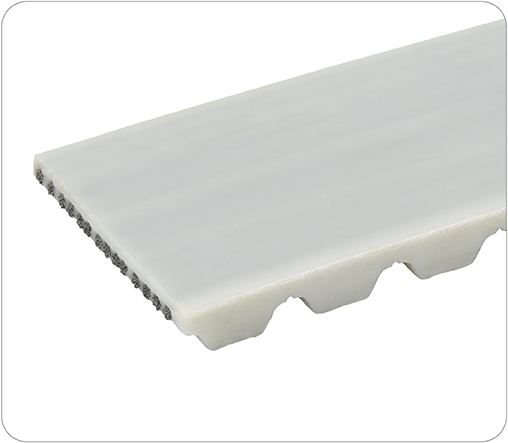

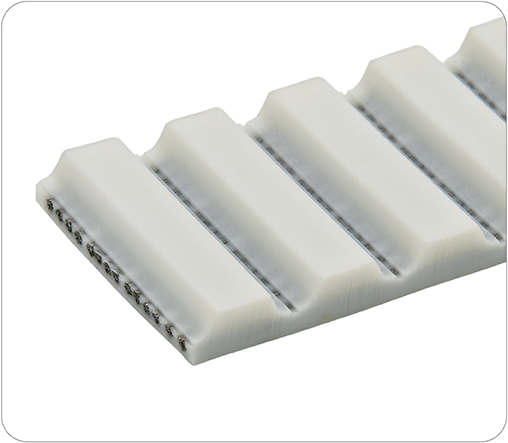

AT Profile- 10mm Pitch Linear White TPU Timing Belt. Thick Steel Cords.

ATL10 Steel Linear

Technical Information

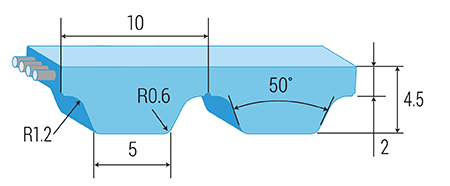

Profile
AT
Pitch
10.00 mm 0.39 in
Max Width
150.00 mm 5.91 in
Min Welded Length
500 mm 19.69 in
Max Welded Length
100000 mm 3937.01 in
Hardness
92 Shore A | ISO 868
Material
PU
Cord
Steel

Tolerance

Length
+/- 0.50 mm/m
Width
+/- 0.50 mm/m
Height
+/- 0.35 mm/m

Special Features

ATL10 Steel Linear
ATL10 Steel Linear

Specifications

Standard Width
(mm)
Weight
(gr/m)
Max Load
(N)
Max Woad Welded
(N)
Breaking
(N)
Elongation
(N/mm*m)
16
108
3892
1946
15570
855
25
170
6055
3027
24220
1330
32
217
7785
3892
31140
1710
50
340
12110
6055
48440
2660
75
510
18165
9082
72660
3990
100
680
24220
12110
96880
5320
150
1020
36330
18165
145320
7980

Pulley teeth and idler diameter

Requirements for pulleys and tension roller
Min number of teeth
Min Diameter (mm)
Diameter of tension roller (mm)
No Counter Flexion
25
77.73
80
With Counter Flexion
25
77.73
150

Tooth force for power calculation

Speed (1/min)
0
25
50
75
100
250
500
1000
2000
Tooth Force (N/mm)
7.57
7.43
7.30
7.18
7.08
6.82
5.92
5.08
4.13

Technical pulley data

Number of teeth
Outside Diameter
(mm)
Effective Diameter
(mm)
Diameter of Flange
(mm)
25
77.73
79.58
84
26
80.91
82.76
87
27
84.09
85.94
90
28
87.28
89.13
93
30
93.64
95.49
100
32
100.01
101.86
106
36
112.74
114.59
119
40
125.47
127.32
131
44
138.21
140.06
144
Number of teeth
Outside Diameter
(mm)
Effective Diameter
(mm)
Diameter of Flange
(mm)
48
150.94
152.79
157
60
189.14
190.99
195
