General Characteristics

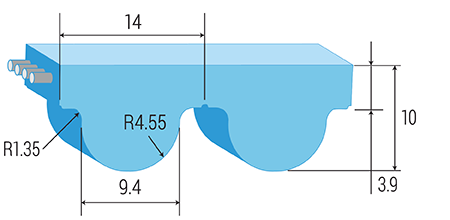

HTD Profile- 14mm Pitch Linear White TPU Timing Belt. Steel Cords. Nylon fabric on back and teeth

HTD14M Steel Linear PAZ PAR

Technical Information

Profile
HTD
Pitch
14.00 mm 0.55 in
Max Width
150.00 mm 5.91 in
Min Welded Length
812 mm 31.97 in
Max Welded Length
100000 mm 3937.01 in
Hardness
92 Shore A | ISO 868
Material
PU
Cord
Steel

Tolerance

Length
+/- 0.80 mm/m
Width
+/- 1.00 mm/m
Height
+/- 0.50 mm/m

Special Features

PAZ - nylon fabric on teeth
PAR - nylon fabric on back
HTD14M Steel Linear PAZ PAR
HTD14M Steel Linear PAZ PAR

Specifications

Standard Width
(mm)
Weight
(gr/m)
Max Load
(N)
Max Woad Welded
(N)
Breaking
(N)
Elongation
(N/mm*m)
25
275
6055
3027
24220
1330
32
352
9082
4541
36330
1995
55
605
13840
6920
55360
3040
85
935
23355
11677
93420
5130
115
1265
26815
13407
107260
5890

Pulley teeth and idler diameter

Requirements for pulleys and tension roller
Min number of teeth
Min Diameter (mm)
Diameter of tension roller (mm)
No Counter Flexion
28
122.13
120
With Counter Flexion
28
122.13
180

Tooth force for power calculation

Speed (1/min)
0
25
50
75
100
250
500
1000
2000
Tooth Force (N/mm)
13.00
12.71
12.46
12.20
11.91
10.75
9.46
7.81
5.90

Technical pulley data

Number of teeth
Outside Diameter
(mm)
Effective Diameter
(mm)
Diameter of Flange
(mm)
28
122.13
124.78
131
29
126.58
129.23
135
30
131.04
133.69
140
31
135.50
138.15
144
32
139.95
142.60
149
33
144.41
147.06
153
34
148.87
151.52
158
35
153.32
155.97
158
36
157.78
160.43
166
Number of teeth
Outside Diameter
(mm)
Effective Diameter
(mm)
Diameter of Flange
(mm)
37
162.13
164.88
171
38
166.69
169.34
175
39
171.15
173.80
180
40
175.60
178.25
184
42
184.52
187.17
193
44
193.43
196.08
202
48
211.25
213.90
220
60
264
267.38
273
72
318.21
320.86
327
