HTD5M Steel (15) Linear
HTD5M Steel (15) Linear

HTD5M Steel (15) Linear

General Characteristics

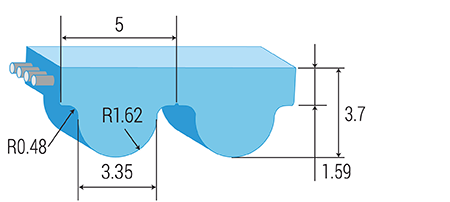

HTD Profile- 5mm Pitch Linear White TPU Timing Belt. Steel Cords. 15mm slit lanes

HTD5M Steel (15) Linear

Technical Information

Profile
HTD
Pitch
5.00 mm 0.20 in
Max Width
150.00 mm 5.91 in
Min Welded Length
500 mm 19.69 in
Max Welded Length
100000 mm 3937.01 in
Hardness
92 Shore A | ISO 868
Material
PU
Cord
Steel

Tolerance

Length
+/- 0.50 mm/m
Width
+/- 0.50 mm/m
Height
+/- 0.25 mm/m

Special Features

HTD5M Steel (15) Linear
HTD5M Steel (15) Linear

Specifications

Standard Width
(mm)
Weight
(gr/m)
Max Load
(N)
Max Woad Welded
(N)
Breaking
(N)
Elongation
(N/mm*m)
10
48
840
420
3360
208
16
77
1470
735
5880
364
25
120
2310
1155
9240
572
32
154
2940
1470
11760
728
50
240
4620
2310
18480
1144
75
360
6390
3465
27720
1716
100
480
9240
4620
36960
2288
150
720
13850
6925
55400
3432

Pulley teeth and idler diameter

Requirements for pulleys and tension roller
Min number of teeth
Min Diameter (mm)
Diameter of tension roller (mm)
No Counter Flexion
16
24.32
50
With Counter Flexion
20
30.69
60

Tooth force for power calculation

Speed (1/min)
0
25
50
75
100
250
500
1000
2000
Tooth Force (N/mm)
3.68
3.59
3.54
3.50
3.45
3.20
2.93
2.60
2.19

Technical pulley data

Number of teeth
Outside Diameter
(mm)
Effective Diameter
(mm)
Diameter of Flange
(mm)
16
24.32
25.46
30
17
25.92
27.06
31
18
27.51
28.65
33
19
29.10
30.24
34
20
30.69
31.83
36
21
32.28
33.42
37
22
33.87
35.01
39
23
35.47
36.61
41
24
37.06
38.20
42
Number of teeth
Outside Diameter
(mm)
Effective Diameter
(mm)
Diameter of Flange
(mm)
25
38.65
39.79
44
26
40.24
41.38
45
28
43.42
44.56
49
30
46.61
47.75
52
32
49.49
50.93
55
34
52.97
54.11
58
36
56.16
57.30
61
40
62.52
63.66
68
48
75.25
76.39
80
