HTD8M Steel (25) Linear PAZ PAR
Request Sample
HTD8M Steel (25) Linear PAZ PAR

HTD8M Steel (25) Linear PAZ PAR

General Characteristics

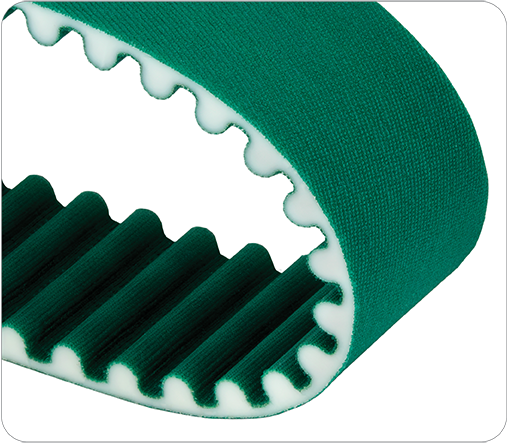

HTD Profile- 8mm Pitch Linear TPU. Steel Cords. 25mm slit lanes. Nylon fabric on teeth and back

Print Data sheet
Request Sample
HTD8M Steel (25) Linear PAZ PAR

Technical Information

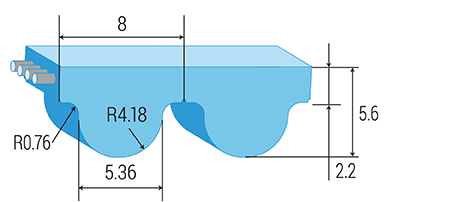

Profile
HTD
Pitch
8.000 mm 0.31 in
Max Width
150.00 mm 5.91 in
Min Welded Length
500 mm 19.69 in
Max Welded Length
100000 mm 3937.01 in
Hardness
92 Shore A | ISO 868
Material
PU
Cord
Steel

Tolerance

Length
+/- 0.50 mm/m
Width
+/- 0.50 mm/m
Height
+/- 0.30 mm/m

Special Features

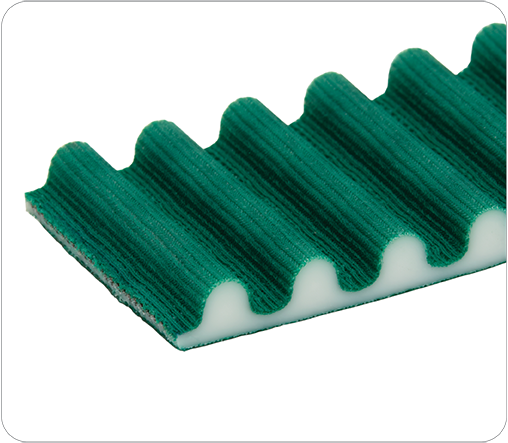

PAZ - nylon fabric on teeth

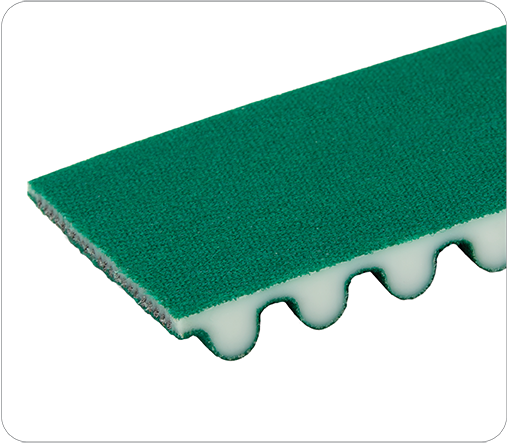

PAR - nylon fabric on back
HTD8M Steel (25) Linear PAZ PAR
HTD8M Steel (25) Linear PAZ PAR

Specifications

Standard Width
(mm)
Weight
(gr/m)
Max Load
(N)
Max Woad Welded
(N)
Breaking
(N)
Elongation
(N/mm*m)
10
70
1425
712
5700
318
16
112
2612
1306
10450
583
25
175
4037
2018
16150
901
32
224
5225
2612
20900
1166
50
350
8075
4037
32300
1802
75
525
12112
6056
48450
2703
100
700
16150
8075
64600
3604
150
1050
24225
12112
96900
5406

Pulley teeth and idler diameter

Requirements for pulleys and tension roller
Min number of teeth
Min Diameter (mm)
Diameter of tension roller (mm)
No Counter Flexion
18
44.46
50
With Counter Flexion
18
44.46
100

Tooth force for power calculation

Speed (1/min)
0
25
50
75
100
250
500
1000
2000
Tooth Force (N/mm)
7.40
7.31
7.06
7.00
6.81
6.30
5.67
4.83
3.88

Technical pulley data

Number of teeth
Outside Diameter
(mm)
Effective Diameter
(mm)
Diameter of Flange
(mm)
18
44.46
45.84
50
19
47.00
48.38
52
20
49.55
50.93
55
21
52.01
53.48
58
22
54.64
56.02
60
23
57.19
58.57
63
24
59.74
61.12
65
25
62.28
63.66
68
26
64.83
66.21
70
Number of teeth
Outside Diameter
(mm)
Effective Diameter
(mm)
Diameter of Flange
(mm)
28
69.92
71.30
75
29
72.47
73.85
78
30
75.01
76.39
80
32
80.11
81.49
86
34
85.20
86.58
91
36
90.29
91.67
96
40
100.48
101.86
106
48
120.85
122.23
126
60
151.41
152.79
157
