General Characteristics

L Profile- 3/8" Pitch Linear White TPU. Steel Cords.

L Steel Linear

Technical Information

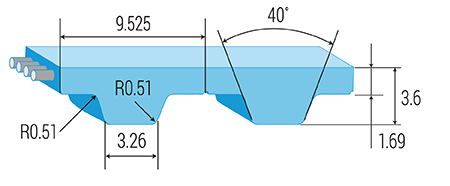

Profile
L
Pitch
9.52 mm 0.37 in
Max Width
152.40 mm 6.00 in
Min Welded Length
500 mm 19.69 in
Max Welded Length
100000 mm 3937.01 in
Hardness
92 Shore A | ISO 868
Material
PU
Cord
Steel

Tolerance

Length
+/- 0.50 mm/m
Width
+/- 0.50 mm/m
Height
+/- 0.25 mm/m

Special Features

L Steel Linear
L Steel Linear

Specifications

Standard Width
(mm)
Weight
(gr/m)
Max Load
(N)
Max Woad Welded
(N)
Breaking
(N)
Elongation
(N/mm*m)
12.7
45
1155
577
4620
286
19.1
67
1890
945
7560
468
25.4
89
2310
1155
9240
572
38.1
133
3780
1890
15120
936
50.8
178
4620
2310
18480
1144
76.2
267
6930
3465
27720
1716
101.6
356
9240
4620
36960
2288
152.4
534
13850
6925
55400
3432

Pulley teeth and idler diameter

Requirements for pulleys and tension roller
Min number of teeth
Min Diameter (mm)
Diameter of tension roller (mm)
No Counter Flexion
15
44.72
60
With Counter Flexion
20
59.88
60

Tooth force for power calculation

Speed (1/min)
0
25
50
75
100
250
500
1000
2000
Tooth Force (N/mm)
3.86
3.65
3.57
3.49
3.41
3.06
2.72
2.34
1.93

Technical pulley data

Number of teeth
Outside Diameter
(mm)
Effective Diameter
(mm)
Diameter of Flange
(mm)
15
44.72
45.48
51
16
47.75
48.51
54
17
50.78
51.54
57
18
53.81
54.57
60
19
56.85
57.61
63
20
59.88
60.64
66
22
65.94
66.70
72
23
68.97
69.73
75
24
72.01
72.77
78
Number of teeth
Outside Diameter
(mm)
Effective Diameter
(mm)
Diameter of Flange
(mm)
25
75.04
75.80
81
26
78.07
78.83
84
27
81.10
81.86
87
28
84.13
84.89
90
30
90.20
90.96
96
35
105.36
106.12
111
40
120.52
121.28
126
48
144.77
145.53
151
60
181.15
181.91
187
