T10 Steel (25) Linear PAZ PAR
Request Sample
T10 Steel (25) Linear PAZ PAR

T10 Steel (25) Linear PAZ PAR

General Characteristics

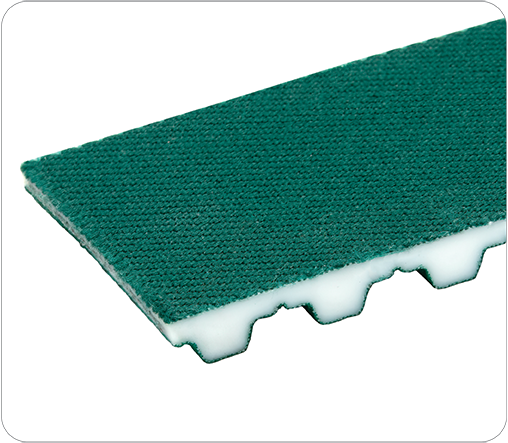

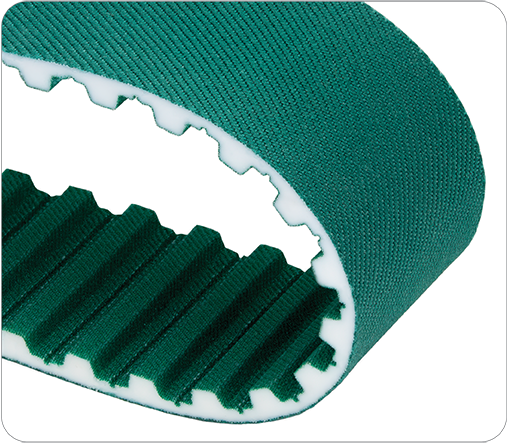

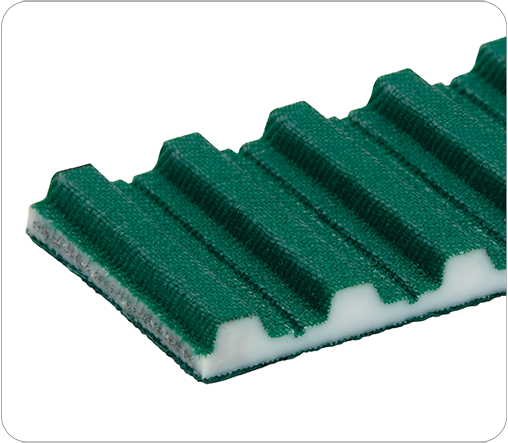

T Profile- 10mm Pitch White TPU . Steel Cords. 25mm slit lanes. Nylon fabric on teeth and back

Print Data sheet
Request Sample
T10 Steel (25) Linear PAZ PAR

Technical Information

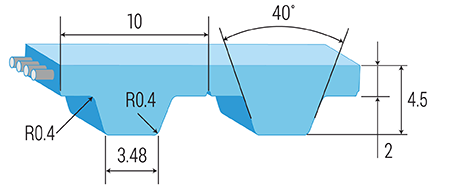

Profile
T
Pitch
10.000 mm 0.39 in
Max Width
150.00 mm 5.91 in
Min Welded Length
500 mm 19.69 in
Max Welded Length
100000 mm 3937.01 in
Hardness
92 Shore A | ISO 868
Material
PU
Cord
Steel

Tolerance

Length
+/- 0.50 mm/m
Width
+/- 0.50 mm/m
Height
+/- 0.25 mm/m

Special Features

PAZ - nylon fabric on teeth
PAR - nylon fabric on back
T10 Steel (25) Linear PAZ PAR
T10 Steel (25) Linear PAZ PAR

Specifications

Standard Width
(mm)
Weight
(gr/m)
Max Load
(N)
Max Woad Welded
(N)
Breaking
(N)
Elongation
(N/mm*m)
10
48
840
420
3360
208
16
81
1470
735
5880
364
25
121
2310
1155
9240
572
32
162
2940
1470
11760
728
50
243
4620
2310
18480
1144
75
364
6930
3465
27720
1716
100
486
9240
4620
36960
2288
150
730
13850
6925
55400
3432

Pulley teeth and idler diameter

Requirements for pulleys and tension roller
Min number of teeth
Min Diameter (mm)
Diameter of tension roller (mm)
No Counter Flexion
12
36.35
40
With Counter Flexion
20
61.81
60

Tooth force for power calculation

Speed (1/min)
0
25
50
75
100
250
500
1000
2000
Tooth Force (N/mm)
5.18
5.00
4.85
4.70
4.61
4.14
3.68
3.16
2.61

Technical pulley data

Number of teeth
Outside Diameter
(mm)
Effective Diameter
(mm)
Diameter of Flange
(mm)
12
36.35
38.20
42
14
42.71
44.56
49
15
45.90
47.75
52
16
49.08
50.93
55
18
55.45
57.30
61
19
58.63
60.48
65
20
61.81
63.66
68
22
68.18
70.03
74
24
74.54
76.39
80
Number of teeth
Outside Diameter
(mm)
Effective Diameter
(mm)
Diameter of Flange
(mm)
25
77.73
79.58
84
26
80.91
82.76
87
27
84.09
85.94
90
28
87.28
89.13
93
30
93.64
95.49
100
32
100.01
101.86
106
34
106.38
108.23
112
36
112.74
114.59
119
40
125.47
127.32
131
