T20 Steel Linear
Request Sample
T20 Steel Linear

T20 Steel Linear

General Characteristics

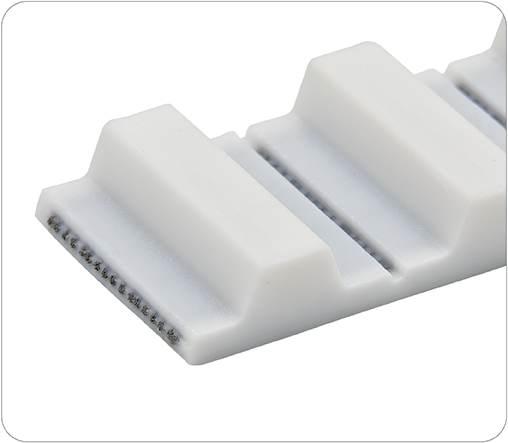

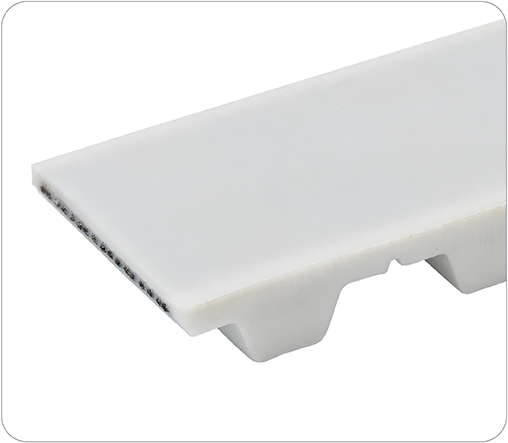

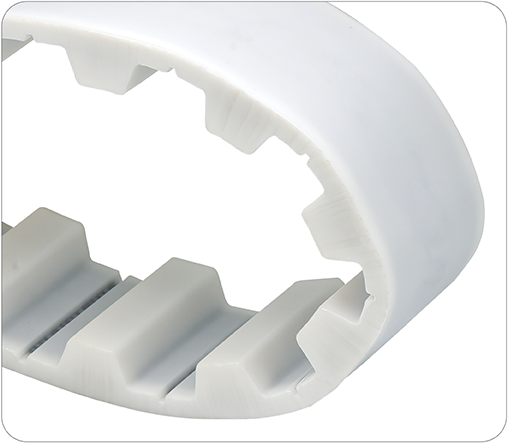

T Profile- 20mm Pitch Linear White TPU Belt. Steel Cords.

Print Data sheet
Request Sample
T20 Steel Linear

Technical Information

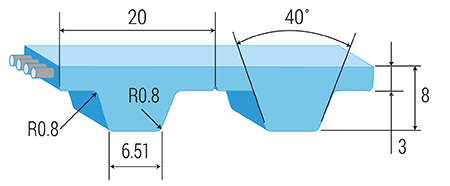

Profile
T
Pitch
20.00 mm 0.79 in
Max Width
150.00 mm 5.91 in
Min Welded Length
500 mm 19.69 in
Max Welded Length
100000 mm 3937.01 in
Hardness
92 Shore A | ISO 868
Material
PU
Cord
Steel

Tolerance

Length
+/- 0.80 mm/m
Width
+/- 0.80 mm/m
Height
+/- 0.40 mm/m

Special Features

T20 Steel Linear
T20 Steel Linear

Specifications

Standard Width
(mm)
Weight
(gr/m)
Max Load
(N)
Max Woad Welded
(N)
Breaking
(N)
Elongation
(N/mm*m)
25
195
4037
2018
16150
901
32
250
5225
2612
20900
1166
50
395
8075
4037
32300
1802
75
585
12112
6056
48450
2703
100
780
16150
8075
64600
3604
150
1180
24225
12112
69600
5406

Pulley teeth and idler diameter

Requirements for pulleys and tension roller
Min number of teeth
Min Diameter (mm)
Diameter of tension roller (mm)
No Counter Flexion
15
92.64
120
With Counter Flexion
25
156.32
120

Tooth force for power calculation

Speed (1/min)
0
25
50
75
100
250
500
1000
2000
Tooth Force (N/mm)
10.45
10.00
9.69
9.35
9.14
8.05
6.95
5.83
4.59

Technical pulley data

Number of teeth
Outside Diameter
(mm)
Effective Diameter
(mm)
Diameter of Flange
(mm)
15
92.64
95.49
103
16
99.02
101.86
109
18
111.75
114.59
122
20
124.48
127.32
134
22
137.22
140.06
147
23
143.58
146.42
153
24
249.95
152.79
160
25
156.32
159.16
166
26
162.68
165.52
173
Number of teeth
Outside Diameter
(mm)
Effective Diameter
(mm)
Diameter of Flange
(mm)
27
169.05
171.89
179
28
175.41
178.25
185
30
188.15
190.99
198
32
200.88
203.72
211
36
226.34
229.18
236
40
251.81
254.65
262
42
264.54
267.38
274
44
277.27
280.11
287
48
302.74
305.58
313
