T5 Steel (10) Linear Black
Request Sample
T5 Steel (10) Linear Black

T5 Steel (10) Linear Black

General Characteristics

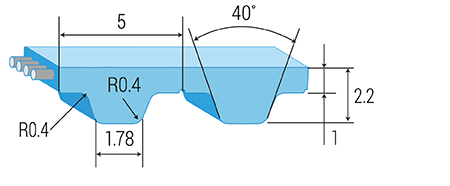

T Profile- 5mm Pitch Linear Black TPU Timing Belt. Steel Cords. 10mm slit lanes

Print Data sheet
Request Sample
T5 Steel (10) Linear Black

Technical Information

Profile
T
Pitch
5.00 mm 0.20 in
Max Width
150.00 mm 5.91 in
Min Welded Length
500 mm 19.69 in
Max Welded Length
100000 mm 3937.01 in
Hardness
92 Shore A | ISO 868
Material
PU
Cord
Steel

Tolerance

Length
+/- 0.50 mm/m
Width
+/- 0.50 mm/m
Height
+/- 0.25 mm/m

Special Features

T5 Steel (10) Linear Black
T5 Steel (10) Linear Black

Specifications

Standard Width
(mm)
Weight
(gr/m)
Max Load
(N)
Max Woad Welded
(N)
Breaking
(N)
Elongation
(N/mm*m)

Pulley teeth and idler diameter

Requirements for pulleys and tension roller
Min number of teeth
Min Diameter (mm)
Diameter of tension roller (mm)
No Counter Flexion
With Counter Flexion

Tooth force for power calculation

Speed (1/min)
Tooth Force (N/mm)

Technical pulley data

Number of teeth
Outside Diameter
(mm)
Effective Diameter
(mm)
Diameter of Flange
(mm)
Number of teeth
Outside Diameter
(mm)
Effective Diameter
(mm)
Diameter of Flange
(mm)

Download PU Timing
Belt catalog

Download
