T5 Steel (10) Linear PAZ
T5 Steel (10) Linear PAZ

T5 Steel (10) Linear PAZ

General Characteristics

T Profile- 5mm Pitch Linear White TPU . Steel Cords. 10mm slit lanes. Nylon fabric on teeth

T5 Steel (10) Linear PAZ

Technical Information

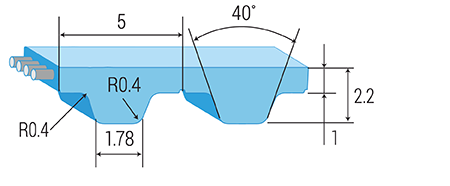

Profile
T
Pitch
5.000 mm 0.20 in
Max Width
150.00 mm 5.91 in
Min Welded Length
500 mm 19.69 in
Max Welded Length
100000 mm 3937.01 in
Hardness
92 Shore A | ISO 868
Material
PU
Cord
Steel

Tolerance

Length
+/- 0.50 mm/m
Width
+/- 0.50 mm/m
Height
+/- 0.25 mm/m

Special Features

PAZ - nylon fabric on teeth
T5 Steel (10) Linear PAZ
T5 Steel (10) Linear PAZ

Specifications

Standard Width
(mm)
Weight
(gr/m)
Max Load
(N)
Max Woad Welded
(N)
Breaking
(N)
Elongation
(N/mm*m)
10
21
292
146
1170
72
16
34
552
276
2210
136
25
53
910
455
3640
224
32
68
1105
552
4420
272
50
106
1820
910
7280
448
75
160
2730
1365
10920
672
100
210
3640
1820
14560
896
150
320
5460
2730
21840
1344

Pulley teeth and idler diameter

Requirements for pulleys and tension roller
Min number of teeth
Min Diameter (mm)
Diameter of tension roller (mm)
No Counter Flexion
10
15.05
30
With Counter Flexion
15
23.05
30

Tooth force for power calculation

Speed (1/min)
0
25
50
75
100
250
500
1000
2000
Tooth Force (N/mm)
2.45
2.36
2.74
2.23
2.12
1.98
1.81
1.63
1.40

Technical pulley data

Number of teeth
Outside Diameter
(mm)
Effective Diameter
(mm)
Diameter of Flange
(mm)
10
15.05
15.95
20
12
18.23
19.01
23
14
21.41
22.28
26
15
23.05
23.87
28
16
24.59
25.46
30
18
27.78
28.65
33
19
29.37
30.24
34
20
30.96
31.83
36
22
34.14
35.01
39
Number of teeth
Outside Diameter
(mm)
Effective Diameter
(mm)
Diameter of Flange
(mm)
24
37.33
38.20
42
25
38.92
39.79
44
26
40.51
41.38
45
28
43.69
44.56
49
30
46.88
47.75
52
32
50.06
50.93
55
36
56.43
57.30
61
40
62.79
63.66
68
42
65.98
66.85
71
