XH Steel (25.4) Linear PAZ PAR
Request Sample
XH Steel (25.4) Linear PAZ PAR

XH Steel (25.4) Linear PAZ PAR

General Characteristics

XH Profile- 7/8" Pitch Linear TPU. Steel Cords. Nylon fabric on teeth and back. 25.4mm slit lanes

Print Data sheet
Request Sample
XH Steel (25.4) Linear PAZ PAR

Technical Information

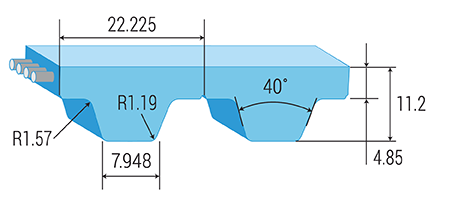

Profile
XH
Pitch
22.220 mm 0.87 in
Max Width
152.40 mm 6.00 in
Min Welded Length
508 mm 20.00 in
Max Welded Length
100000 mm 3937.01 in
Hardness
92 Shore A | ISO 868
Material
PU
Cord
Steel
Slit Lanes

Tolerance

Length
+/- 1.00 mm/m
Width
+/- 1.00 mm/m
Height
+/- 0.50 mm/m

Special Features

PAZ - nylon fabric on teeth
PAR - nylon fabric on back
XH Steel (25.4) Linear PAZ PAR
XH Steel (25.4) Linear PAZ PAR

Specifications

Standard Width
(mm)
Weight
(gr/m)
Max Load
(N)
Max Woad Welded
(N)
Breaking
(N)
Elongation
(N/mm*m)
25.4 / 100
255
4037
2018
16150
901
50.8 / 200
510
8075
4037
32300
1802
76.2 / 300
760
12112
6056
48450
2703
101.6 / 400
1020
16150
8075
64600
3604
152.4 / 600
1530
24225
12112
96900
5406

Pulley teeth and idler diameter

Requirements for pulleys and tension roller
Min number of teeth
Min Diameter (mm)
Diameter of tension roller (mm)
No Counter Flexion
18
125.54
150
With Counter Flexion
20
138.69
180

Tooth force for power calculation

Speed (1/min)
0
25
50
75
100
250
500
1000
2000
Tooth Force (N/mm)
9.60
9.26
8.95
8.67
8.38
7.24
6.25
5.28
4.31

Technical pulley data

Number of teeth
Outside Diameter
(mm)
Effective Diameter
(mm)
Diameter of Flange
(mm)
18
124.54
127.34
134
19
131.61
134.41
141
20
138.69
141.49
149
21
145.76
148.56
156
22
152.84
155.64
163
24
166.99
169.79
177
25
174.06
176.86
184
26
181.14
183.94
191
27
188.21
191
198
Number of teeth
Outside Diameter
(mm)
Effective Diameter
(mm)
Diameter of Flange
(mm)
28
195.28
198.08
205
30
209.43
212.23
219
32
223.58
226.38
233
34
237.73
240.53
248
38
266.03
268.83
276
40
280.18
282.98
290
46
322.62
325.42
332
48
336.77
339.57
347
