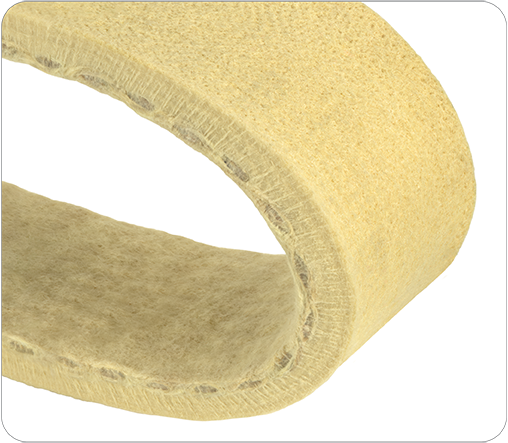

Bear Aramid 20 Felt

Bear Aramid 20 Felt

Description

Coil Wrapper with solid woven aramid carcass, 4.8mm thick, kevlar felt top, and 267N/mm

Article

General Characteristics

Solid Woven Aramid

Print Data sheet
Request Sample

Technical Information

Carcass Type
Polyester Felt
Carcass Thickness
0.18 in 4.57 mm
Pull per 3% (static)
1524.57 lbf/in 266.80 N/mm
Max Production Width
70.87 in 1800.10 mm
Max Production Length
787.40 in 19999.96 mm
Working Temp.
-58/896 F -50/480 C

Best used for

Coil Wrapping Machines
Highly recommended on aluminum wrapping machines
With NOVO or PBO covers, they are recommended for hot coil wrapping
Bear Aramid 20 Felt Bear Aramid 20 Felt

Top side (Carrying)

Material
Kevlar
Thickness
0.00 to 0.19 in 0.00 to 4.80 mm
Profile
Color
Yellow

Bottom side (Pulley)

Material
Kevlar
Thickness
0.00 to 0.19 in 0.00 to 4.80 mm
Profile
Color
Yellow

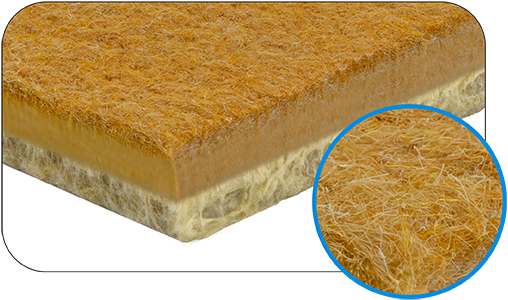

Optional hi-temp cover

Optional hi-temp Bear Aramid 20 Felt

PBO Cover

Max temp.
1200 F | 650 C
Top Cover Thickness
2 to 5 mm
wave horizontal addon

Coil Wrapper Belts in action

Coil wrapper belts in action
Coil wrapper belts in action
Wave horizontal white

Download Coil Wrappers
Coil Wrappers catalog
