Bear Aramid 30

Bear Aramid 30

Description

Bear Aramid 30

Article

General Characteristics

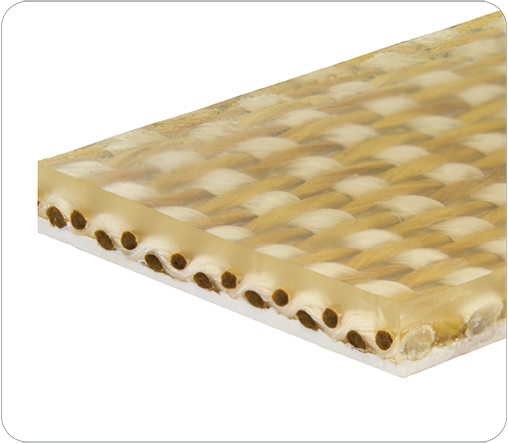

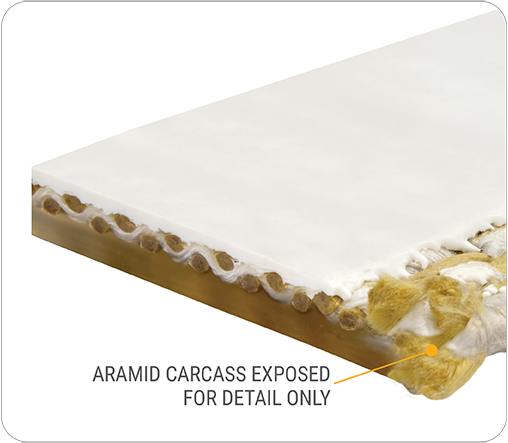

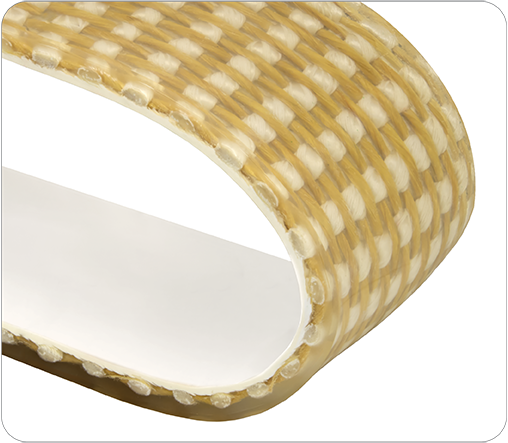

Coil Wrapper with solid woven aramid carcass 2.5mm thick and 300N/mm

Print Data sheet
Request Sample

Technical Information

Carcass Type
Solid Woven Aramid
Carcass Thickness
0.10 in 2.49 mm
Pull per 3% (static)
1713.04 lbf/in 0.00 N/mm
Max Production Width
62.99 in 1600.00 mm
Max Production Length
629.92 in 15999.97 mm
Working Temp.
-4/194 F -20/90 C

Best used for

Coil Wrapping Machines
Highly recommended on aluminum wrapping machines
Bear Aramid 30 Bear Aramid 30

Top side (Carrying)

Material
PU
Thickness
0.02 to 0.10 in 0.51 to 2.49 mm
Profile
Mini IP or Smooth Glossy
Color
Dark Green, Black or Transparent
Top side profile

Bottom side (Pulley)

Material
PU
Thickness
0.02 to 0.10 in 0.51 to 2.49 mm
Profile
Mini IP or Smooth Glossy
Color
Dark Green, Black or Transparent
Bottom side profile
wave horizontal addon

Coil Wrapper Belts in action

Coil wrapper belts in action
Coil wrapper belts in action
