Bear Aramid 40

Bear Aramid 40

Description

Bear Aramid 40

Article

General Characteristics

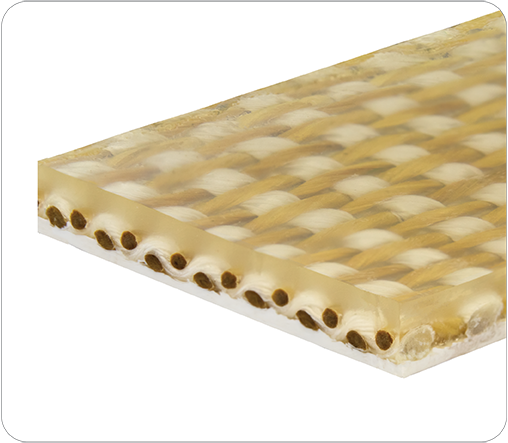

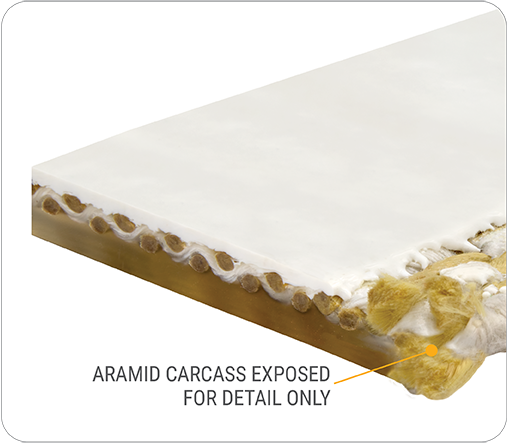

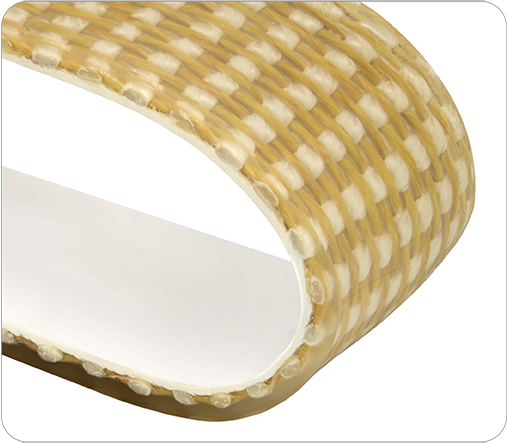

Coil Wrapper with solid woven aramid carcass 3.8mm thick and 400N/mm

Print Data sheet
Request Sample

Technical Information

Carcass Type
Solid Woven Aramid
Carcass Thickness
0.15 in 3.78 mm
Pull per 3% (static)
2284.05 lbf/in 399.71 N/mm
Max Production Width
62.99 in 1600.00 mm
Max Production Length
629.92 in 15999.97 mm
Working Temp.
-4/194 F -20/90 C

Best used for

Coil Wrapping Machines
Highly recommended on aluminum wrapping machines
Bear Aramid 40 Bear Aramid 40

Top side (Carrying)

Material
PU
Thickness
0.02 to 0.06 in 0.51 to 1.50 mm
Profile
Mini IP or Smooth Glossy
Color
Dark Green, Black or Transparent
Top side profile

Bottom side (Pulley)

Material
PU
Thickness
0.02 to 0.06 in 0.51 to 1.50 mm
Profile
Mini IP or Smooth Glossy
Color
Dark Green, Black or Transparent
Bottom side profile
wave horizontal addon

Coil Wrapper Belts in action

Coil wrapper belts in action
Coil wrapper belts in action
Wave horizontal white

Download Coil Wrappers
Coil Wrappers catalog

Download
