Bear Felt 6

Bear Felt 6

Description

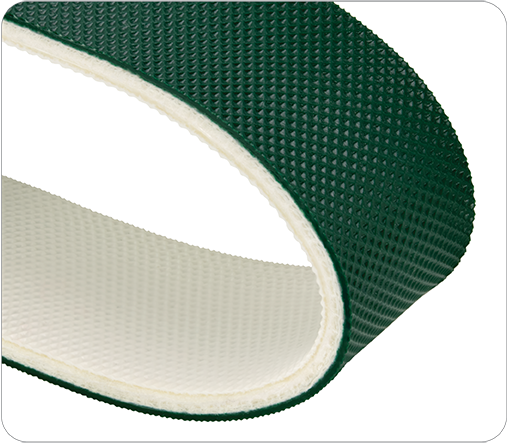

Bear Felt 6

Article

General Characteristics

Coil Wrapper with felt carcass 3mm thick and 65N/mm

Print Data sheet
Request Sample

Technical Information

Carcass Type
Polyester Felt
Carcass Thickness
0.12 in 3.05 mm
Pull per 3% (static)
371.15 lbf/in 64.95 N/mm
Max Production Width
62.99 in 1600.00 mm
Max Production Length
629.92 in 15999.97 mm
Working Temp.
-4/194 F -20/90 C

Best used for

Coil Wrapping Machines
Highly recommended on aluminum wrapping machines
With NOVO or PBO covers, they are recommended for hot coil wrapping
Bear Felt 6 Bear Felt 6

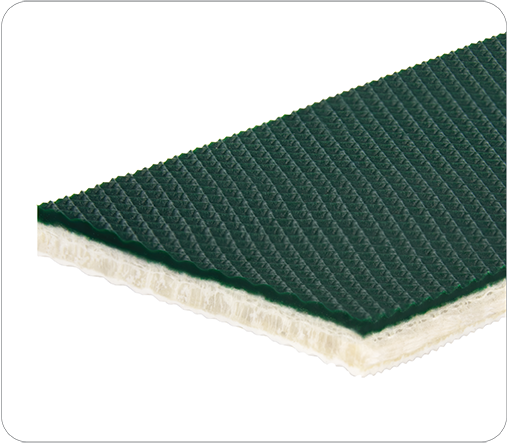

Top side (Carrying)

Material
PU (NOVO & PBO covers available)
Thickness
0.02 to 0.10 in 0.51 to 2.49 mm
Profile
Mini IP or Smooth Glossy
Color
Dark Green, Black or Transparent
Top side profile

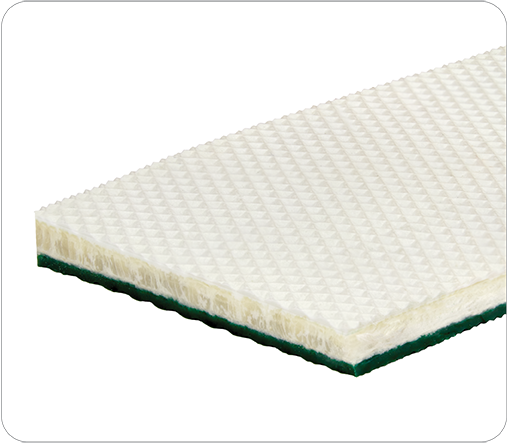

Bottom side (Pulley)

Material
PU
Thickness
0.02 to 0.10 in 0.51 to 2.49 mm
Profile
Mini IP or Smooth Glossy
Color
Dark Green, Black or Transparent
Bottom side profile

Optional hi-temp covers

Optional hi-temp NOVO cover

NOVO Cover

Max temp.
248 F | 120 C
Top Cover Thickness
1.2 mm
Optional hi-temp PBO cover

PBO Cover

Max temp.
1200 F | 650 C
Top Cover Thickness
2 to 5 mm
