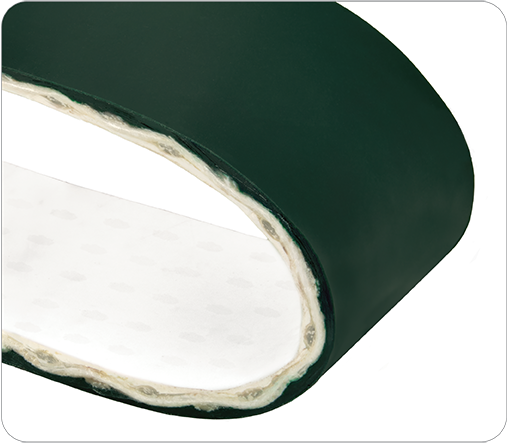

Bear Poly 10

Bear Poly 10

Description

Bear Poly 10

Article

General Characteristics

Coil Wrapper belt with solid woven polyester carcass of 2.5mm thickness and 90N/mm.

Print Data sheet
Request Sample

Technical Information

Carcass Type
Solid Woven Polyester
Carcass Thickness
0.10 in 2.49 mm
Pull per 3% (static)
513.91 lbf/in 89.93 N/mm
Max Production Width
62.99 in 1600.00 mm
Max Production Length
0.00 in 0.00 mm
Working Temp.
-4/194 F -20/90 C

Best used for

Coil Wrapping Machines
Higly recommended on steel wrapping machines
Bear Poly 10 Bear Poly 10

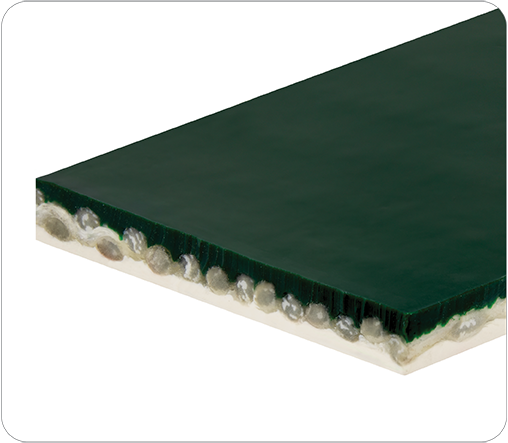

Top side (Carrying)

Material
PU
Thickness
0.02 to 0.10 in 0.51 to 2.49 mm
Profile
Mini IP or Smooth Glossy
Color
Dark Green, Black or Transparent
Top side profile

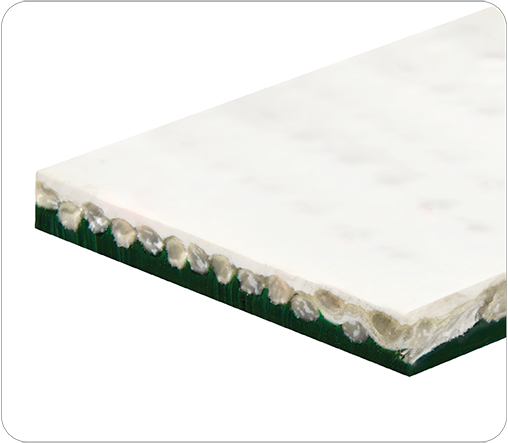

Bottom side (Pulley)

Material
PU
Thickness
0.02 to 0.10 in 0.51 to 2.49 mm
Profile
Mini IP or Smooth Glossy
Color
Dark Green, Black or Transparent
Bottom side profile

Optional hi-temp cover

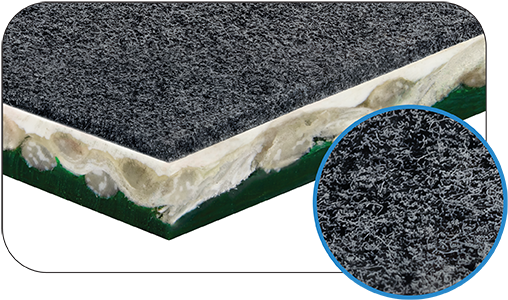

Optional hi-temp NOVO cover

NOVO Cover

Max temp.
248 F | 120 C
Top Cover Thickness
1.2 mm
wave horizontal addon

Coil Wrapper Belts in action

Coil wrapper belts in action
Coil wrapper belts in action
Wave horizontal white

Download Coil Wrappers
Coil Wrappers catalog

Download
