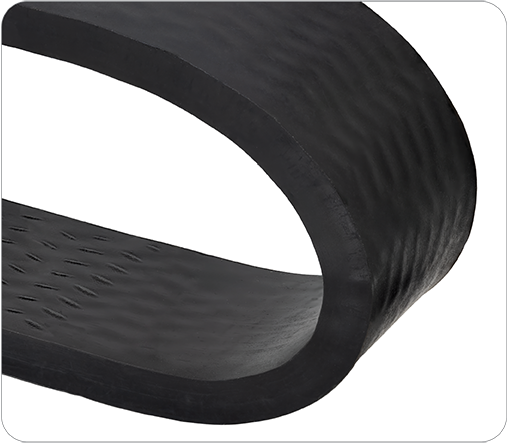

Bear Steel 11

Bear Steel 11

Description

Article

General Characteristics

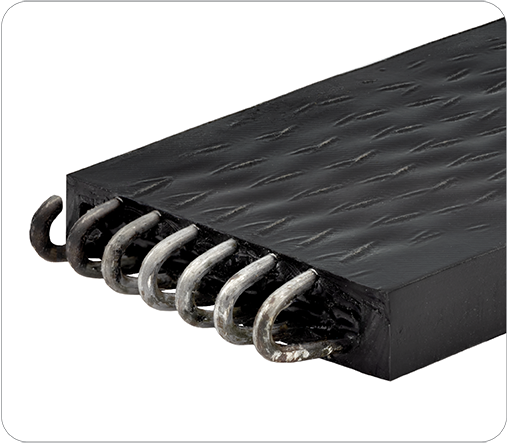

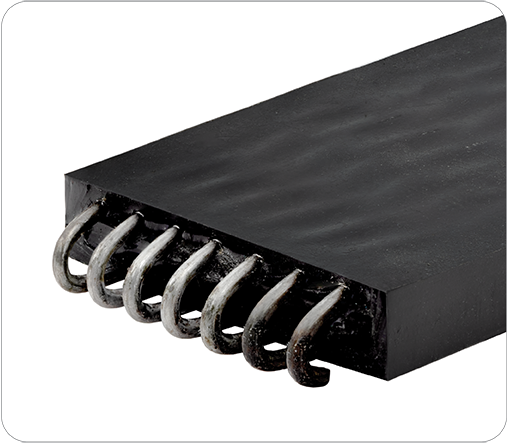

Coil Wrapper with steel wire carcass 1.6mm thick and 110N/mm. Can be jointed with pin splice

Print Data sheet
Request Sample

Technical Information

Carcass Type
Steel Wire
Steel Thickness
in mm
Carcass Thickness
0.28 in 6.99 mm
Pull per 3% (static)
628.12 lbf/in 109.92 N/mm
Max Production Width
62.99 in 1600.00 mm
Max Production Length
0.00 in 0.00 mm
Working Temp.
-4/194 F -20/90 C

Best used for

Coil Wrapping Machines
Highly recommended on thick steel coil wrapping machines
Bear Steel 11 Bear Steel 11

Top side (Carrying)

Material
PU
Thickness
0.04 to 0.04 in 0.99 to 0.99 mm
Profile
Mini IP or Smooth Glossy
Color
Dark Green, Black or Transparent
Top side profile

Bottom side (Pulley)

Material
PU
Thickness
0.04 to 0.04 in 0.99 to 0.99 mm
Profile
Mini IP or Smooth Glossy
Color
Dark Green, Black or Transparent
Bottom side profile
wave horizontal addon

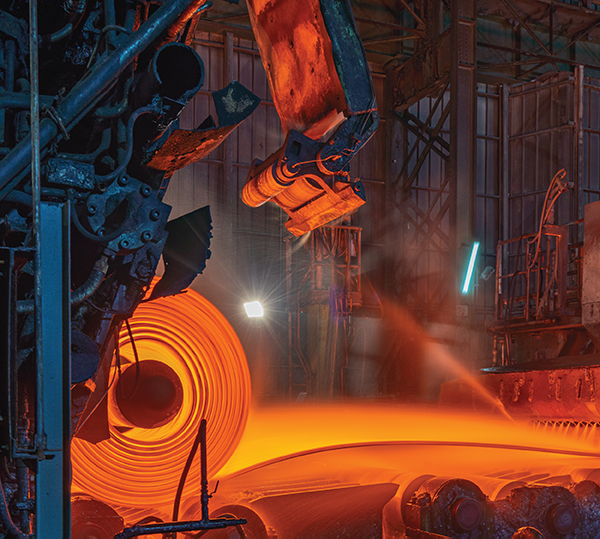

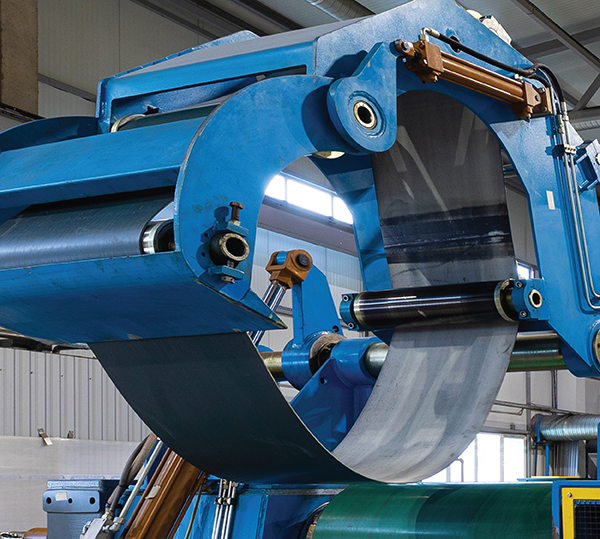

Coil Wrapper Belts in action

Coil wrapper belts in action
Coil wrapper belts in action
Wave horizontal white

Download Coil Wrappers
Coil Wrappers catalog

Download
