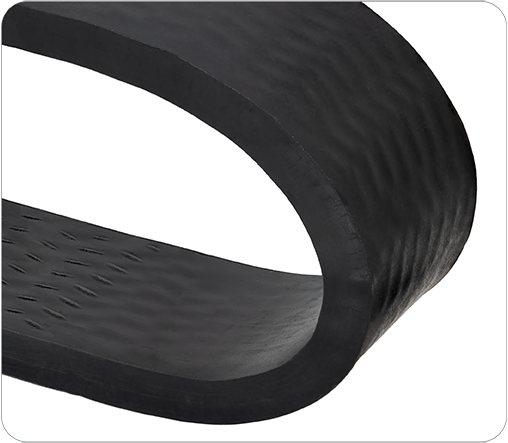

Bear Steel 12

Bear Steel 12

Description

Article

General Characteristics

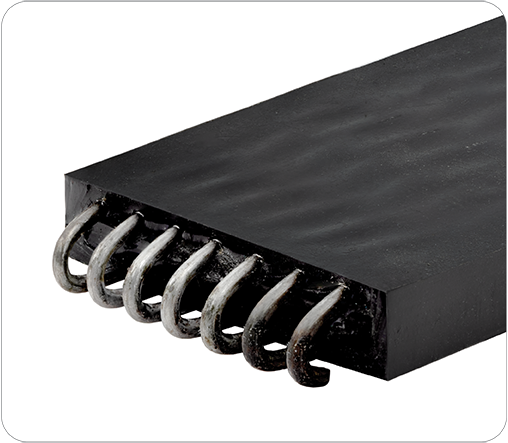

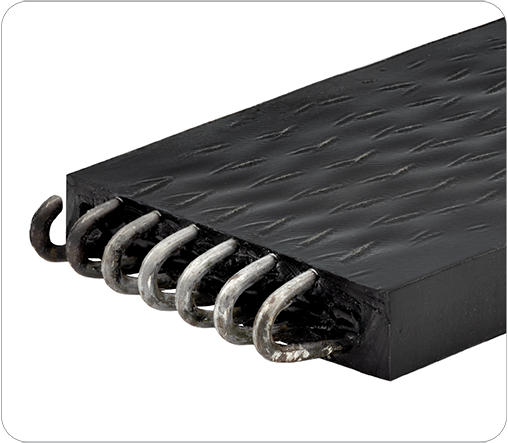

Coil Wrapper with steel wire carcass 2mm thick and 120N/mm. Can be jointed with pin splice

Print Data sheet
Request Sample

Technical Information

Carcass Type
Steel Wire
Steel Thickness
in mm
Carcass Thickness
0.31 in 7.98 mm
Pull per 3% (static)
685.22 lbf/in 119.91 N/mm
Max Production Width
62.99 in 1600.00 mm
Max Production Length
0.00 in 0.00 mm
Working Temp.
-4/194 F -20/90 C

Best used for

Coil Wrapping Machines
Highly recommended on thick steel coil wrapping machines
Bear Steel 12 Bear Steel 12

Top side (Carrying)

Material
PU
Thickness
0.04 to 0.04 in 0.99 to 0.99 mm
Profile
Mini IP or Smooth Glossy
Color
Black
Top side profile

Bottom side (Pulley)

Material
PU
Thickness
0.04 to 0.04 in 0.99 to 0.99 mm
Profile
Mini IP or Smooth Glossy
Color
Black
Bottom side profile
wave horizontal addon

Coil Wrapper Belts in action

Coil wrapper belts in action
Coil wrapper belts in action
Wave horizontal white

Download Coil Wrappers
Coil Wrappers catalog

Download
