REO-F13 S/W
Request Sample
REO-F13 S/W

REO-F13 S/W

General Characteristics

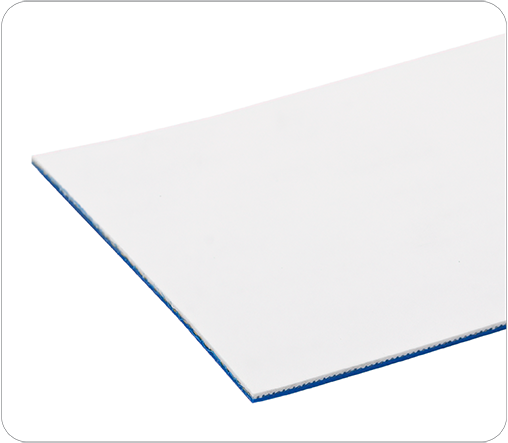

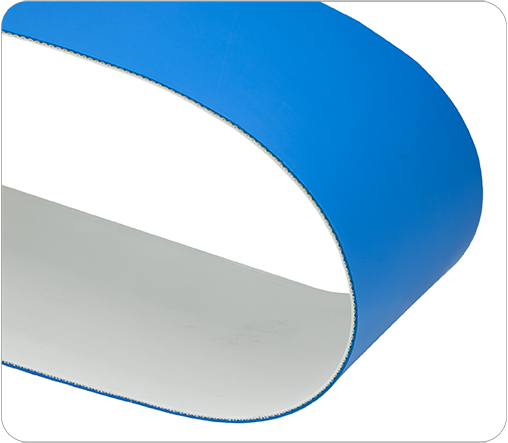

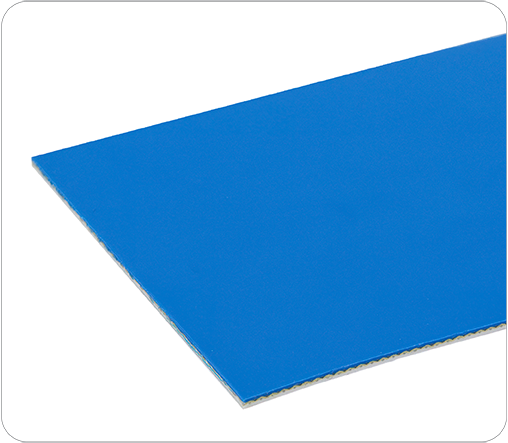

Homogeneous flat TPU belt. Aramid reinforced. USDA approved. Blue top and white bottom

Print Data sheet
Request Sample

Technical Information

Max Production Width
78.74 in 2000.00 mm
Mass
0.33 lbf/ft2 1.60 kg/m2
Tensile Strength
45.60 lbf/in 8.00 dan/cm
Min Working Temp.
-4 F -20 C
Max Working Temp.
194 F 90 C
Flexion (A)
0.35 in 9.00 mm
Coefficient of friction Dry (bottom side) Steel
0.40
Coefficient of friction Wet (bottom side) Steel
0.50
Hardness
92 Shore A | ISO 868

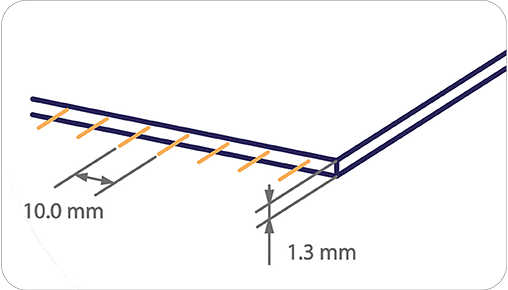

Total Thickness
0.05 in 1.30 mm
Pitch
0
Tension Member
Aramid
Spacing Between Cords
10

Special Features

Oil & Fat Resistant
Food Approved, FDA compilance acc. to 21 CFR 175.300
Food Approved, EU compilance (EC) No. 1935/2004 & (EU) No. 10/2011
USDA Certified
