REO-F20 SB
Request Sample
REO-F20 SB

REO-F20 SB

General Characteristics

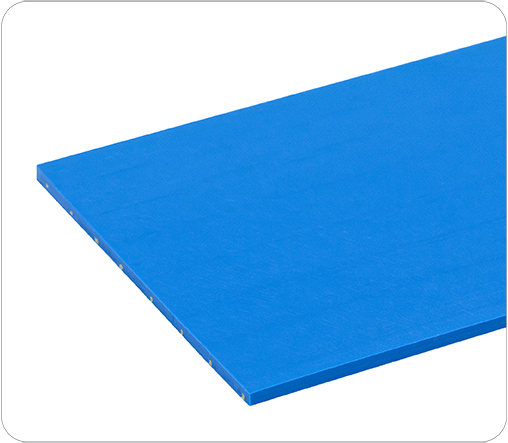

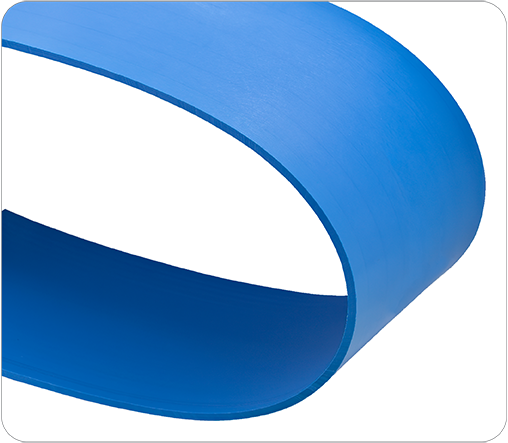

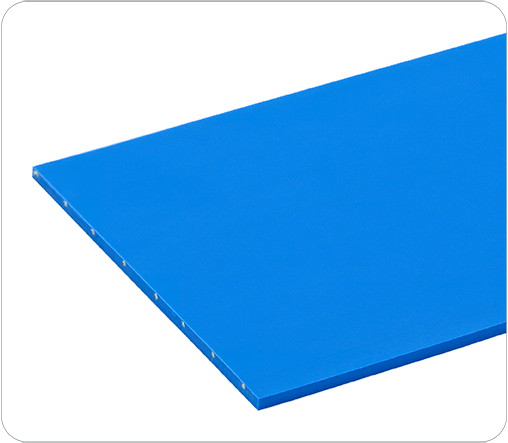

Homogeneous flat TPU belt. Aramid reinforced. USDA approved. Blue

Print Data sheet
Request Sample

Technical Information

Max Production Width
55.91 in 1420.00 mm
Mass
0.53 lbf/ft2 2.60 kg/m2
Tensile Strength
91.20 lbf/in 16.00 dan/cm
Min Working Temp.
-4 F -20 C
Max Working Temp.
194 F 90 C
Flexion (A)
1.38 in 35.00 mm
Coefficient of friction Dry (bottom side) Steel
0.40
Coefficient of friction Wet (bottom side) Steel
0.50
Hardness
90 Shore A | ISO 868

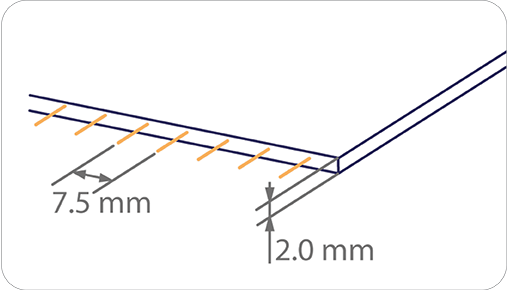

Total Thickness
0.08 in 2.00 mm
Pitch
0
Tension Member
Aramid
Spacing Between Cords
7.5

Special Features

Oil & Fat Resistant
Food Approved, FDA compilance acc. to 21 CFR 175.300
Food Approved, EU compilance (EC) No. 1935/2004 & (EU) No. 10/2011
USDA Certified
REO-F20 SB
REO-F20 SB
REO-F20 SB
