REO-F40 Mayan DB

REO-F40 Mayan DB

General Characteristics

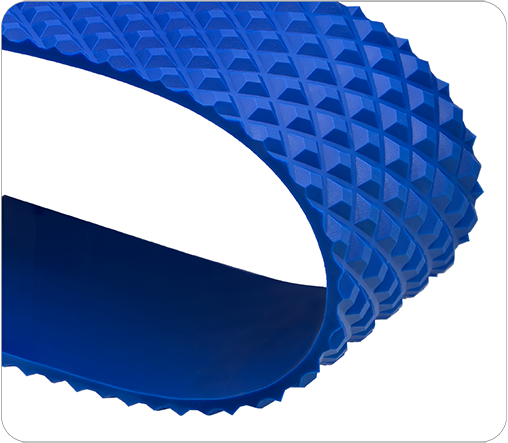

Homogenous Polyether based PU belt with Mayan pyramid top. Aramid reinforced. USDA Approved. Blue. Anti-microbial

Print Data sheet
Request Sample

Technical Information

Max Production Width
55.91 in 1420.00 mm
Mass
0.76 lbf/ft2 3.70 kg/m2
Tensile Strength
91.20 lbf/in 16.00 dan/cm
Min Working Temp.
-22 F -30 C
Max Working Temp.
212 F 100 C
Flexion (A)
3.54 in 90.00 mm
Coefficient of friction Dry (bottom side) Steel
0.40
Coefficient of friction Wet (bottom side) Steel
0.50
Hardness
95 Shore A | ISO 868

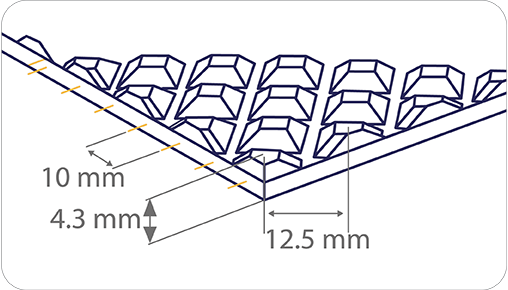

Total Thickness
0.17 in 4.30 mm
Pitch
0
Tension Member
Aramid
Spacing Between Cords
10

Special Features

Hydrolysis Resistant
Anti-bacterial
Oil & Fat Resistant
Food Approved, FDA compilance acc. to 21 CFR 175.300
Food Approved, EU compilance (EC) No. 1935/2004 & (EU) No. 10/2011
USDA Certified
REO-F40 Mayan DB
REO-F40 Mayan DB
REO-F40 Mayan DB
