Description

BU/2 ER8 - 0+0 PU grey

Article

A010200210B21002

General Characteristics

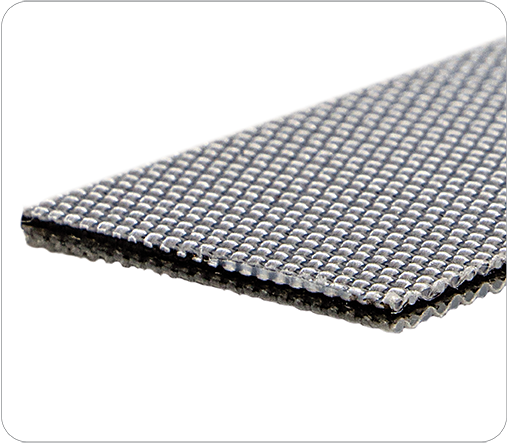

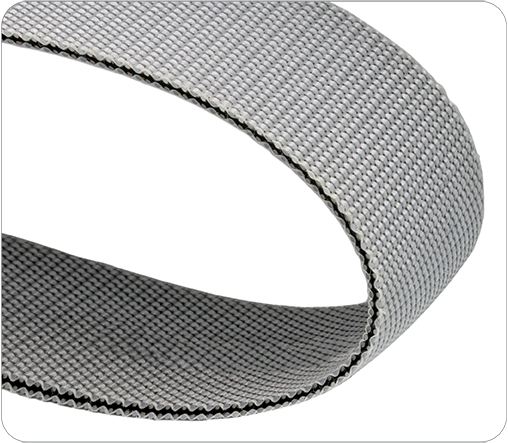

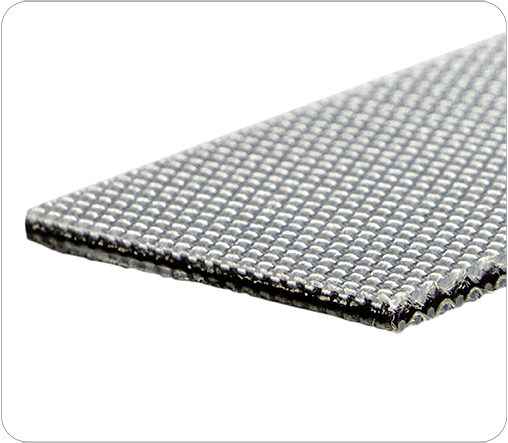

2 ply bare x bare TPU grey, extra rigid, antistatic and oil and fat resistant

Print Data sheet
Request Sample

Technical Information

Max Production Width
118.11 in 3000.00 mm
Total Thickness
0.07 in 1.80 mm
Mass
0.41 lb/ft2 2.00 kg/m2
Tensile force at 1% elongation
After Relaxation - ref. ISO 21181
45.60 lbf/in 8.00 N/mm
Working Temp.
-4/+194 F -20/+90 C
Flexion (A)
2.36 in 60.00 mm
Counter Flexion (B)
3.15 in 80.00 mm
Coefficient of friction
Bottom side - Steel
0.20

Special Features

Antistatic ISO 284 & 21178
Oil & Fat Resistant
Raw 10 PU Grey ER Raw 10 PU Grey ER

Top side (Carrying)

Material
Fabric
Color
Grey
Thickness
0.00 in 0.00 mm
Hardness
Shore A | ISO 868
Surface
Bare

Tension member

Interply
PU
Fabric
Polyester Rigid
Plies
2
Weft
Rigid

Bottom side (Pulley)

Material
Fabric
Color
Grey
Thickness
0.00 in 0.00 mm
Hardness
- Shore A | ISO 868
Surface
Bare

Splice Instructions

Preferred method
FS (Finger Splice)

Fingers are punched into the ends to be joined, and then tacked together and welded under pressure and heat.
This method is especially suitable for single-layered belts

  • Length of the joint 90mm
  • Length of the fingers 90mm
  • Width of the fingers 10mm

170 C 338 F 170 C 338 F 21.77 PSI 1.50 Bars 1.45 min
170 C 338 F 170 C 338 F 29.03 PSI 2.00 Bars No
Air cooled video instructions
Water cooled video instructions

Mechanical Fasteners

Recommended Mechanical Fasteners (at smallest pulley diameter)

Staple Lacing

Staple Lacing

Recommendation at belt minimum pulley diameter:
RS62
APF Fasteners

APF Fasteners

Recommendation at belt minimum pulley diameter:
APF-100
Alligator

Alligator

Recommendation at belt minimum pulley diameter:
1
Clipper Lacing

Clipper Lacing

Recommendation at belt minimum pulley diameter:
UCM36 SLSP, 25 LP, 30, UCM36 SP, 36 SP, 1 XSP, 30P, UX-1 SP, UX-1 LLSP, 30L, 30LP

Recommended mechanical fastening method

  • Applicable

  • Not Applicable

Recessed Lacing
Recessed Lacing:
Hidden Lacing
Hidden Lacing:
Plastic Spiral Finger
Plastic Spiral Finger:
Plastic Spiral Lacing
Plastic Spiral Lacing:

  • Applicable

  • Not Applicable

Recommended Uses

Recommended use: Slider Bed

Slider Bed

Flat Rollers

Flat Rollers

Slider Beds on Both sides

Slider Beds on Both sides

Channel Trough

Channel Trough

Conventional Trough

Conventional Trough

Incline Conveying

Incline Conveying

Incline Variation

Incline Variation

Bucket Elevator

Conveyor with Accumulation

Bend Conveyor

Bend Conveyor

Knife Edge Conveyor

  • Applicable

  • Limited use

  • Not Applicable

Certifications and Lab Tests



Chemical Resistance Information
