Raw 11 PVC
Raw 11 PVC

Raw 11 PVC

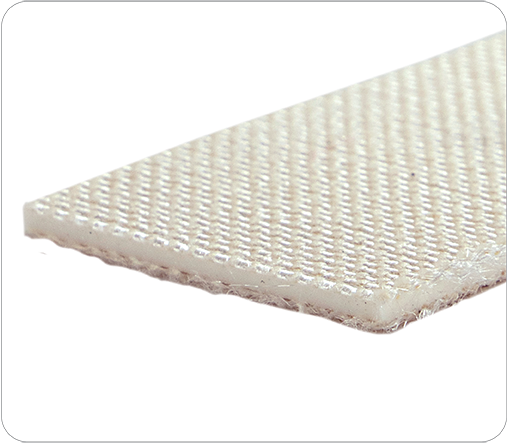

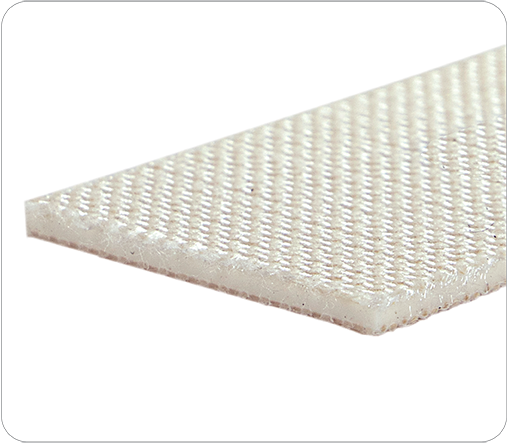

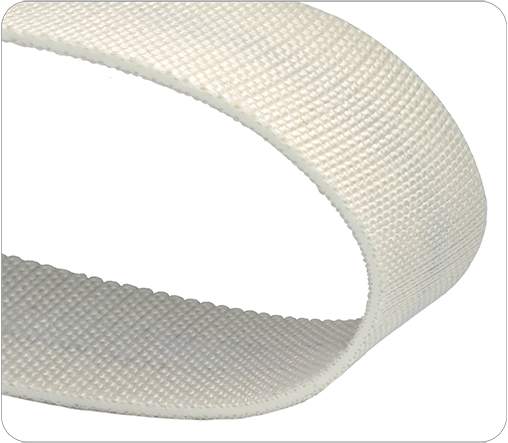

Description

BV/2 ECF8 - 0+0 PVC beige F 1.8

Article

A010100110B21006

General Characteristics

2 ply PVC with cotton-polyester mix fabrics. Bare x bare. Food approved. Oil and fat resistant

Technical Information

Max Production Width
118.11 in 3000.00 mm
Total Thickness
0.07 in 1.80 mm
Mass
0.39 lb/ft2 1.90 kg/m2
Tensile force at 1% elongation
After Relaxation - ref. ISO 21181
45.60 lbf/in 8.00 N/mm
Working Temp.
14/+176 F -10/+80 C
Flexion (A)
0.79 in 20.00 mm
Counter Flexion (B)
0.79 in 20.00 mm
Coefficient of friction
Bottom side - Steel
0.20

Special Features

Food Approved, FDA Compliance acc. to 21 CFR 175.300
Food Approved, EU Compliance (EC) No. 1935/2004 & (EU) No. 10/2011
Oil & Fat Resistant
Hydrolysis Resistant
Raw 11 PVC Raw 11 PVC

Top side (Carrying)

Material
Fabric
Color
Fabric
Thickness
0.00 in 0.00 mm
Hardness
Shore A | ISO 868
Surface
Bare

Tension member

Interply
PVC
Fabric
Polyester/Cotton
Plies
2
Weft
Flexible

Bottom side (Pulley)

Material
Fabric
Color
Fabric
Thickness
0.00 in 0.00 mm
Hardness
- Shore A | ISO 868
Surface
Bare

Splice Instructions

Preferred method
FS (Finger Splice)

Fingers are punched into the ends to be joined, and then tacked together and welded under pressure and heat.
This method is especially suitable for single-layered belts

  • Length of the joint 90mm
  • Length of the fingers 90mm
  • Width of the fingers 10mm

180 C 356 F 180 C 356 F 7.26 PSI 0.50 Bars 2.00 min
180 C 356 F -18 C 0 F 29.03 PSI 2.00 Bars No


Mechanical Fasteners

Recommended Mechanical Fasteners (at smallest pulley diameter)

Staple Lacing

Staple Lacing

Recommendation at belt minimum pulley diameter:
APF Fasteners

APF Fasteners

Recommendation at belt minimum pulley diameter:
Alligator

Alligator

Recommendation at belt minimum pulley diameter:
Clipper Lacing

Clipper Lacing

Recommendation at belt minimum pulley diameter:

Recommended mechanical fastening method

  • Applicable

  • Not Applicable

Recessed Lacing
Recessed Lacing:
Hidden Lacing
Hidden Lacing:
Plastic Spiral Finger
Plastic Spiral Finger:
Plastic Spiral Lacing
Plastic Spiral Lacing:
  • Applicable

  • Not Applicable

Recommended Uses

Recommended use: Slider Bed

Slider Bed

Flat Rollers

Flat Rollers

Slider Beds on Both sides

Slider Beds on Both sides

Channel Trough

Channel Trough

Conventional Trough

Conventional Trough

Incline Conveying

Incline Conveying

Incline Variation

Incline Variation

Bucket Elevator

Conveyor with Accumulation

Bend Conveyor

Bend Conveyor

Knife Edge Conveyor

  • Applicable

  • Limited use

  • Not Applicable

Certifications and Lab Tests

Chemical Resistance Information

Category

Chemical

Results
