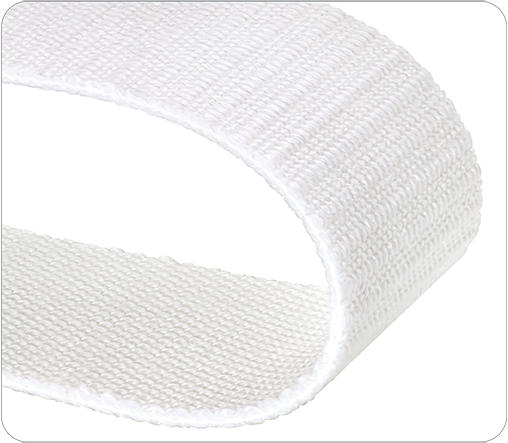

Raw 15 PU

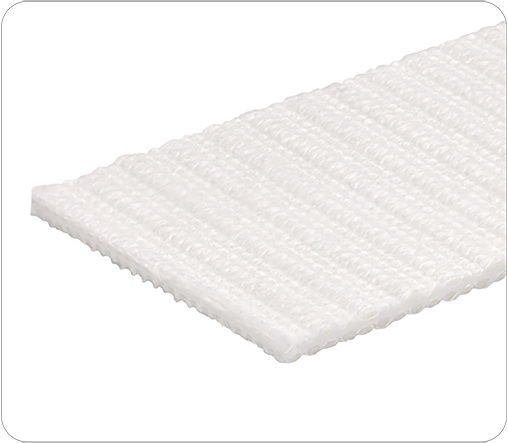

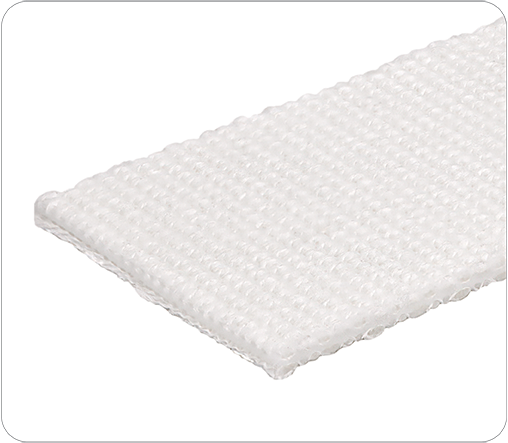

Raw 15 PU

Description

Bfab/2 ESF 6-0+0(U) W 1.92mm

Article

046066

General Characteristics

2ply bare by bare PU with ribbed polyester fabrics

Print Data sheet
Request Sample

Technical Information

Max Production Width
118.11 in 3000.00 mm
Total Thickness
0.08 in 1.92 mm
Mass
0.33 lb/ft2 1.60 kg/m2
Tensile force at 1% elongation
After Relaxation - ref. ISO 21181
34.20 lbf/in 6.00 N/mm
Working Temp.
-4/+194 F -20/+90 C
Flexion (A)
0.39 in 10.00 mm
AB Belt Schema
Counter Flexion (B)
0.79 in 20.00 mm
Coefficient of friction
Bottom side - Steel
0.25

Special Features

Food Approved, FDA Compliance acc. to 21 CFR 175.300
Food Approved, EU Compliance (EC) No. 1935/2004 & (EU) No. 10/2011
Oil & Fat Resistant
Raw 15 PU Raw 15 PU

Top side (Carrying)

Material
Fabric
Color
Fabric
Thickness
0.00 in 0.00 mm
Hardness
Shore A | ISO 868
Surface
Bare

Tension member

Interply
PU
Fabric
Polyester Spun Flexible
Plies
2
Weft
Flexible

Bottom side (Pulley)

Material
Fabric
Color
Fabric
Thickness
0.00 in 0.00 mm
Hardness
- Shore A | ISO 868
Surface
Bare
wave horizontal addon

Splice Instructions

5
Preferred method
FS (Finger Splice)

Fingers are punched into the ends to be joined, and then tacked together and welded under pressure and heat.
This method is especially suitable for single-layered belts

  • Length of the joint 90mm
  • Length of the fingers 90mm
  • Width of the fingers 10mm

170 C 338 F 170 C 338 F 14.51 PSI 1 Bars 2.00 min
170 C 338 F 165 C 329 F 14.51 PSI 1 Bars No

Wave horizontal white
